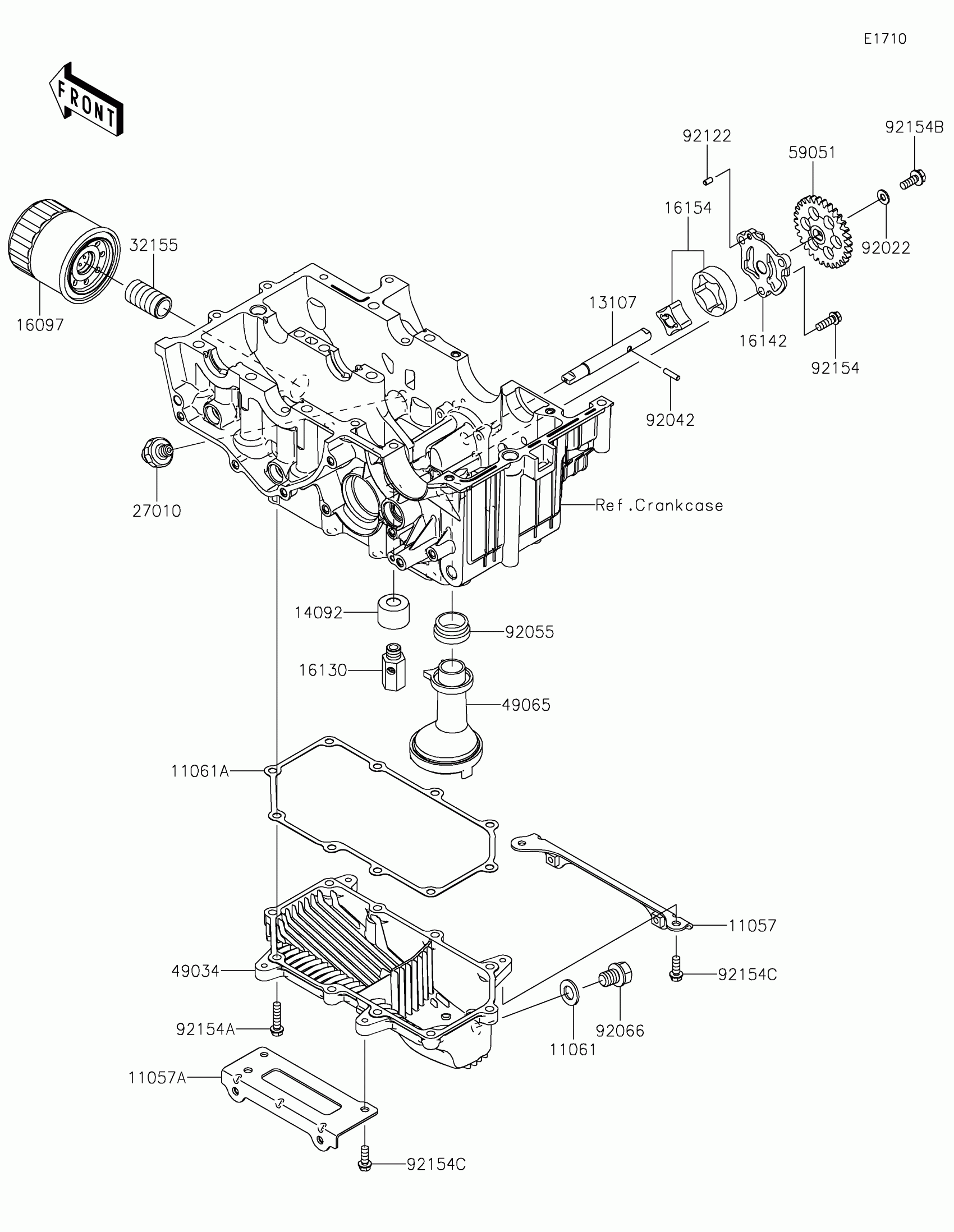

Find the part on the Oil Pump diagram for your 2020 Kawasaki Versys-X 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Versys-X 300 ABS Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,RH

11057-0541

1
Out of stock

11057A

BRACKET,LH

11057-0542

1
Out of stock

11061

GASKET,12X22X2

11061-0417

1
Out of stock

11061A

GASKET,OIL PAN

11061-0794

1
Out of stock

13107

SHAFT

13107-0741

1
Out of stock

14092

COVER,RELIEF VALVE

14092-1002

1
Out of stock

16097

FILTER-ASSY-OIL

16097-0008

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-0002

1
Out of stock

16142

COVER-PUMP

16142-0707

1
Out of stock

16154

ROTOR-PUMP

16154-0711

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1313

1
Out of stock

32155

PIPE,OIL FILTER

32155-0029

1
Out of stock

49034

PAN-OIL

49034-0567

1
Out of stock

49065

FILTER-OIL

49065-0711

1
Out of stock

59051

GEAR-SPUR,30T

59051-0721

1
Out of stock

92022

WASHER,6X12.8X1.2

92022-1827

1
Out of stock

92042

PIN,DOWEL,4X15.8

92042-014

1
Out of stock

92055

RING-O,OIL FILTER

92055-1354

1
Out of stock

92066

PLUG,OIL DRAIN,12X15

92066-0767

1
Out of stock

92122

ROLLER,4X8

92122-0557

1
Out of stock

92154

BOLT,FLANGED,6X18

92154-0784

1
Out of stock

92154A

BOLT,FLANGED,6X25

92154-0819

1
Out of stock

92154B

BOLT,FLANGED,6X16

92154-1055

1
Out of stock

92154C

BOLT,FLANGED-SMALL,6X16

92154-2561

1
Out of stock
