2020 Kawasaki Versys-X 300 ABS Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 2020 Kawasaki Versys-X 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

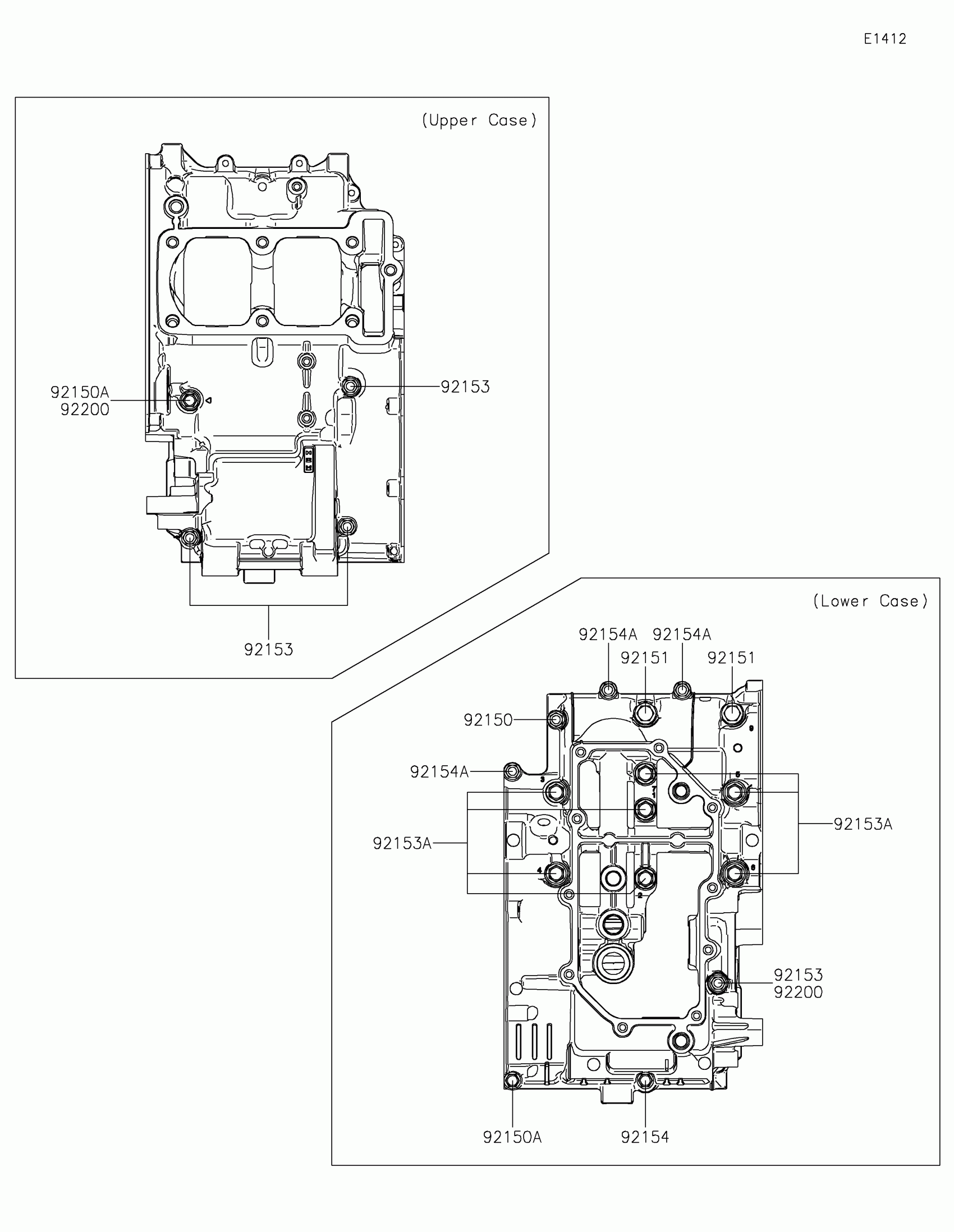

2020 Kawasaki Versys-X 300 ABS Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92150

BOLT,6X38

92150-1301

1

$3.43

In stock

92150A

BOLT,6X60

92150-1548

1

$4.32

In stock

92151

BOLT,8X73

92151-1462

1

$4.93

In stock

92153

BOLT,6X85,WHITE

92153-0927

1
Out of stock

92153A

BOLT,FLANGED,8X90

92153-1632

1

$7.90

In stock

92154

BOLT,FLANGED,6X135

92154-1189

1

$14.14

In stock

92154A

BOLT,6X22

92154-2832

1

$2.46

In stock

92200

WASHER,6.3X13.5X1

92200-0788

1
Out of stock
← Crankcase Crankshaft →
