2020 Kawasaki Versys-X 300 ABS Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2020 Kawasaki Versys-X 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

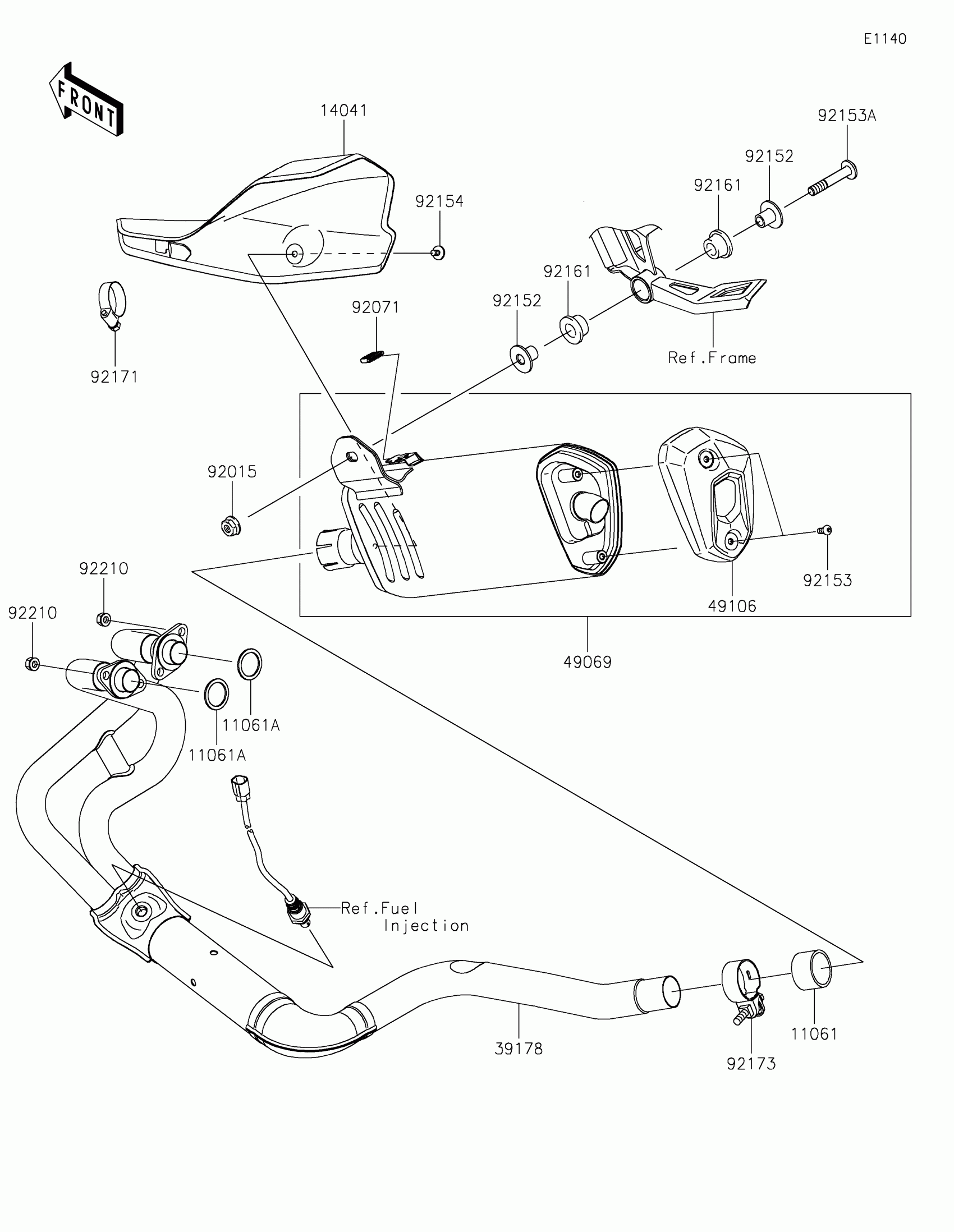

2020 Kawasaki Versys-X 300 ABS Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

1

$24.71

In stock

11061A

GASKET,EXHAUST PIPE

11061-0791

1

$8.05

In stock

14041

COVER-COMP,MUFFLER

14041-0601

1

$201.34

In stock

39178

1

$1,078.39

In stock

49069

MUFFLER-ASSY

49069-0825

1

$719.18

In stock

49106

COVER-MUFFLER,END

49106-0818

1

$76.95

In stock

92015

NUT,FLANGED,10MM

92015-1387

1

$3.43

In stock

92071

GROMMET

92071-0712

1

$2.17

In stock

92152

COLLAR

92152-2295

1
Out of stock

92153

BOLT,SOCKET,6X14

92153-1886

1

$2.42

In stock

92153A

BOLT,SOCKET,10X58

92153-1930

1

$8.46

In stock

92154

BOLT,SOCKET,6X10

92154-2558

1

$1.47

In stock

92161

DAMPER

92161-1497

1

$2.68

In stock

92171

CLAMP

92171-0059

1

$6.34

In stock

92173

CLAMP,42MM

92173-0942

1

$13.32

In stock

92210

NUT,8MM

92210-1242

1
Out of stock
