2020 Kawasaki Versys-X 300 ABS Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2020 Kawasaki Versys-X 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

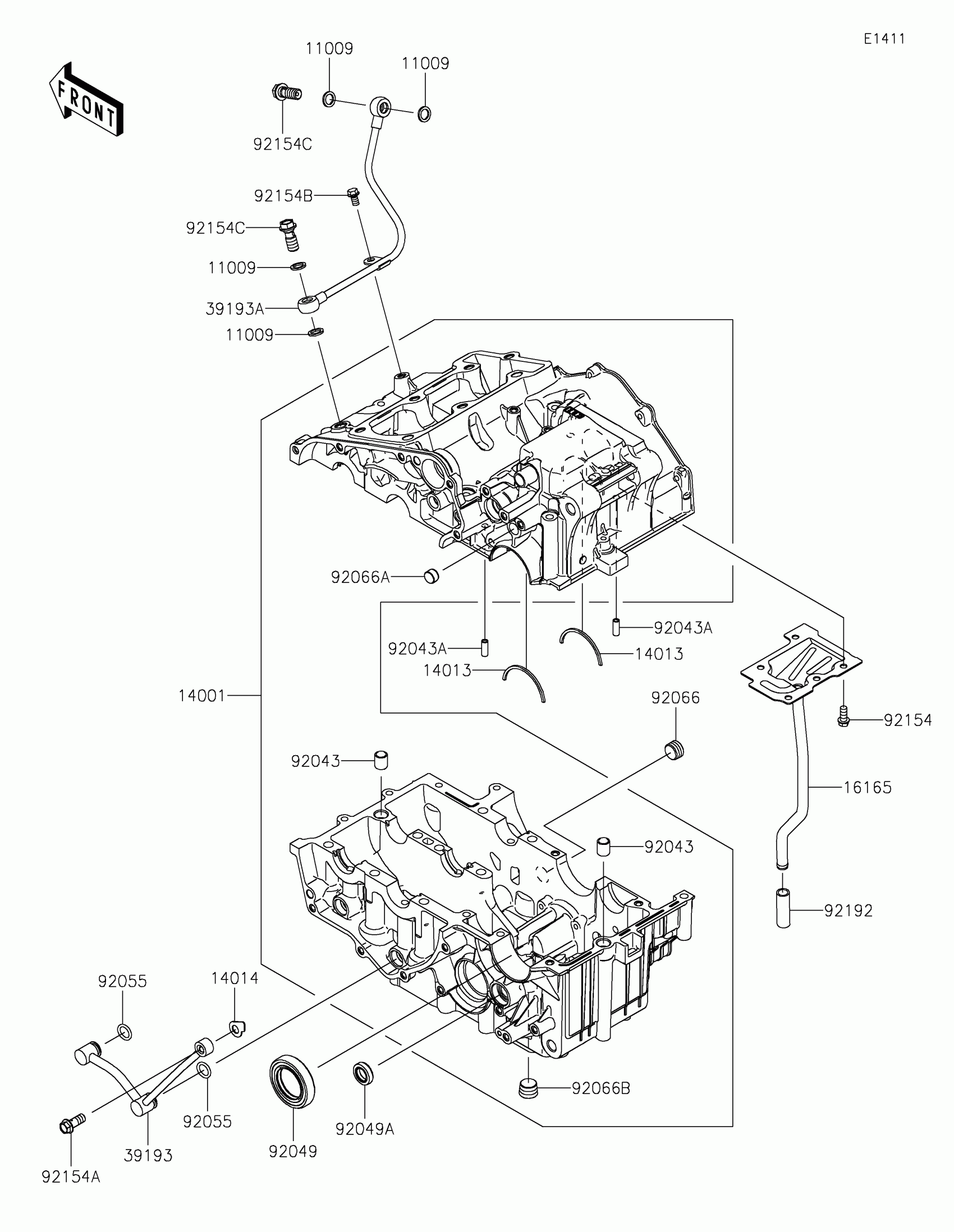

2020 Kawasaki Versys-X 300 ABS Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10X14.5X1.5

11009-1105

1

$5.15

In stock

14001

SET-CRANKCASE

14001-0688

1
Out of stock

14013

RING-POSITION

14013-004

1
Out of stock

14014

PLATE-POSITION

14014-0565

1
Out of stock

16165

SEPARATOR

16165-0013

1

$94.00

In stock

39193

PIPE-OIL

39193-0571

1

$49.83

In stock

39193A

PIPE-OIL,CASE-HEAD

39193-0583

1

$68.90

In stock

92043

PIN,12X14

92043-0963

1

$5.21

In stock

92043A

PIN,3.5X6X16

92043-1309

1

$4.37

In stock

92049

SEAL-OIL,32X52X10

92049-0731

1
Out of stock

92049A

SEAL-OIL

92049-1559

1
Out of stock

92055

RING-O,11.8X2.4

92055-0733

1

$1.93

In stock

92066

PLUG,PT3/8X10

92066-0003

1

$2.66

In stock

92066A

PLUG

92066-1110

1

$5.66

In stock

92066B

PLUG,PT3/8X12

92066-1252

1

$5.15

In stock

92154

BOLT,FLANGED,6X14

92154-0777

1

$2.19

In stock

92154A

BOLT,FLANGED,8X20

92154-0957

1

$4.95

In stock

92154B

BOLT,FLANGED,6X10

92154-2343

1

$1.47

In stock

92154C

BOLT,BANJO,10X23

92154-2560

1

$3.56

In stock

92192

TUBE,9X12X38

92192-0225

1
Out of stock
