2020 Kawasaki Versys-X 300 ABS Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2020 Kawasaki Versys-X 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

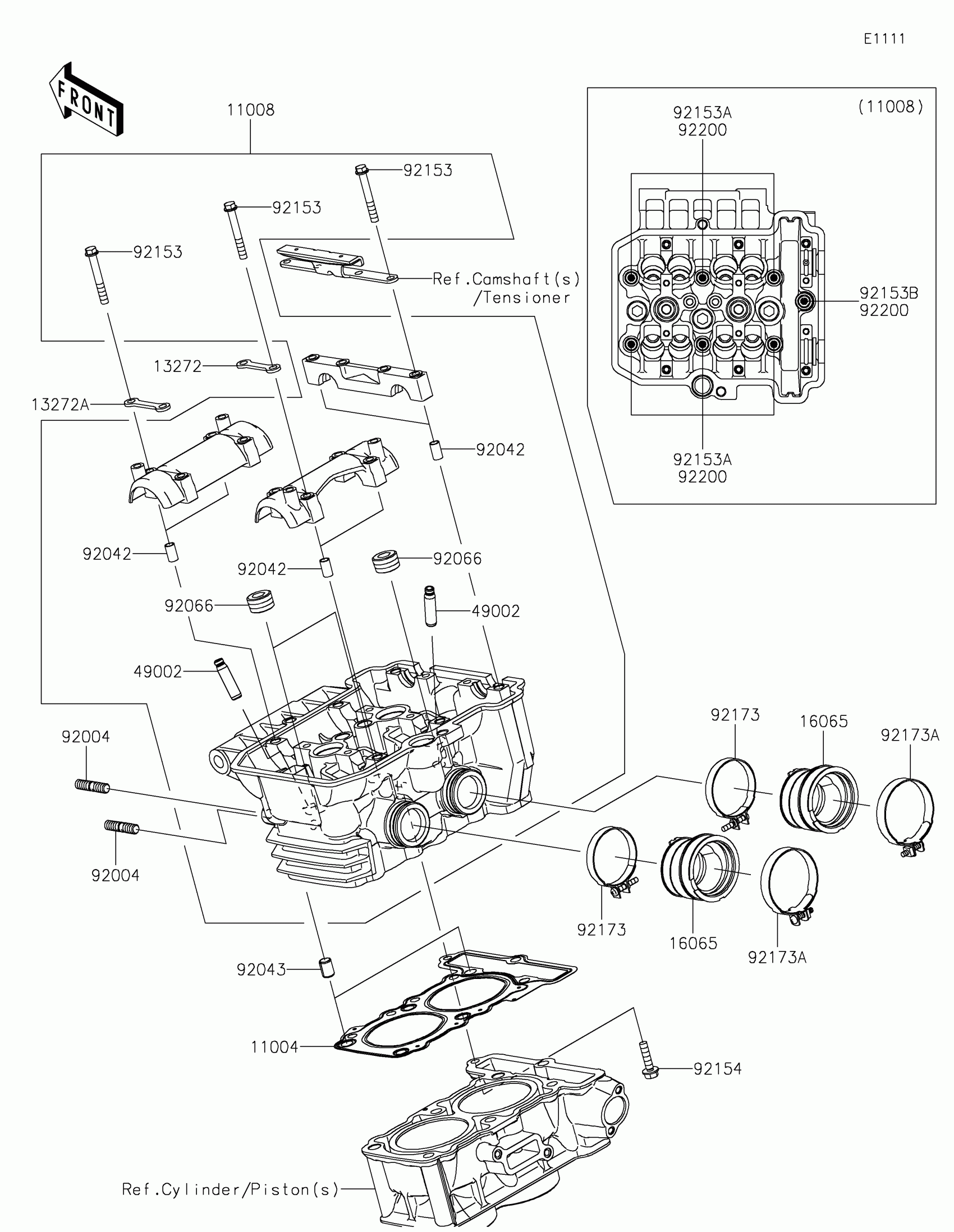

2020 Kawasaki Versys-X 300 ABS Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0734

1

$48.42

In stock

11008

HEAD-COMP-CYLINDER

11008-0747

1

$1,314.82

In stock

13272

PLATE,IN

13272-0260

1

$8.46

In stock

13272A

PLATE,EX

13272-0261

1

$8.46

In stock

16065

HOLDER-CARBURETOR

16065-0119

1

$30.39

In stock

49002

GUIDE-VALVE

49002-0009

1

$31.33

In stock

92004

STUD,8X22

92004-0040

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92043

PIN,8.2X10X14

92043-1264

1

$0.53

In stock

92066

PLUG,PT1/2X12.5

92066-0002

1

$8.75

In stock

92153

BOLT,6X45

92153-0339

1
Out of stock

92153A

BOLT,SOCKET,8X146

92153-1774

1

$6.90

In stock

92153B

BOLT,SOCKET,8X115

92153-1775

1

$7.90

In stock

92154

BOLT,FLANGED,6X25

92154-2556

1

$1.47

In stock

92173

CLAMP,47MM

92173-0919

1

$5.76

In stock

92173A

CLAMP,53MM

92173-0956

1

$7.71

In stock

92200

WASHER,8.5X18X1.6

92200-0860

1
Out of stock
