2020 Kawasaki Versys-X 300 ABS Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2020 Kawasaki Versys-X 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

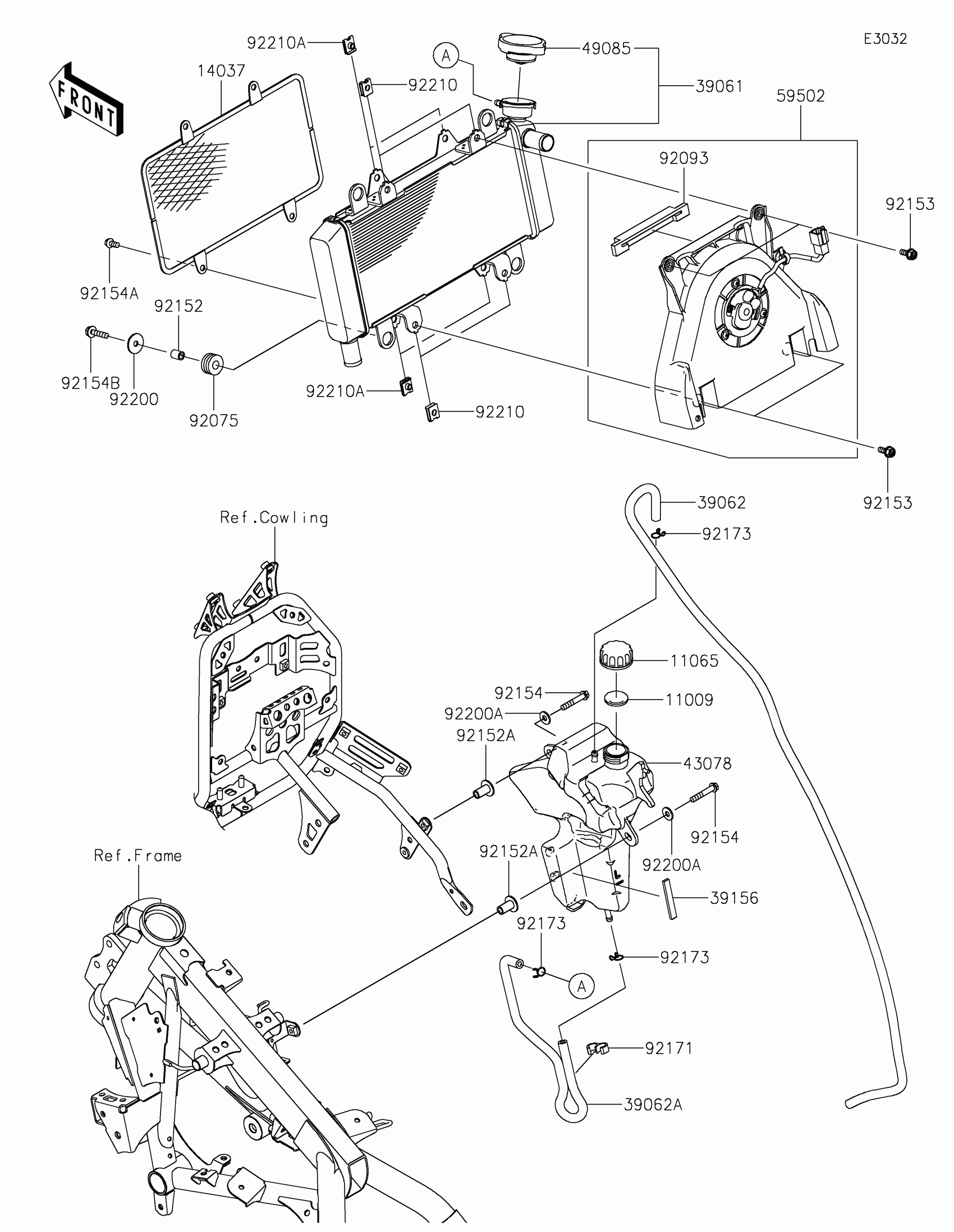

2020 Kawasaki Versys-X 300 ABS Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11065

CAP

11065-0969

1

$1.69

In stock

14037

SCREEN

14037-0781

1

$64.91

In stock

39061

RADIATOR-ASSY

39061-0735

1

$670.62

In stock

39062

1

$15.37

In stock

39062A

1

$7.47

In stock

39156

PAD,8X50X3

39156-2198

1

$0.69

In stock

43078

RESERVOIR

43078-0587

1

$44.11

In stock

49085

CAP-ASSY-PRESSURE

49085-0006

1

$45.73

In stock

59502

FAN-ASSY

59502-0611

1

$573.57

In stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92093

SEAL

92093-0587

1

$7.51

In stock

92152

COLLAR,6.8X10X13

92152-0846

1

$3.20

In stock

92152A

COLLAR

92152-2283

1
Out of stock

92153

BOLT

92153-0531

1
Out of stock

92154

BOLT,FLANGED,6X35

92154-0807

1

$2.44

In stock

92154A

BOLT,FLANGED,6X12

92154-1777

1

$0.93

In stock

92154B

BOLT,FLANGED,6X25

92154-2556

1

$1.47

In stock

92171

CLAMP

92171-1184

1

$2.03

In stock

92173

CLAMP

92173-0050

1

$5.75

In stock

92200

WASHER,6.5X24X1.6

92200-0789

1
Out of stock

92200A

WASHER,6.5X16X1.6

92200-1853

1
Out of stock

92210

NUT

92210-1323

1
Out of stock

92210A

NUT

92210-1518

1
Out of stock
