2020 Kawasaki Versys-X 300 ABS Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2020 Kawasaki Versys-X 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

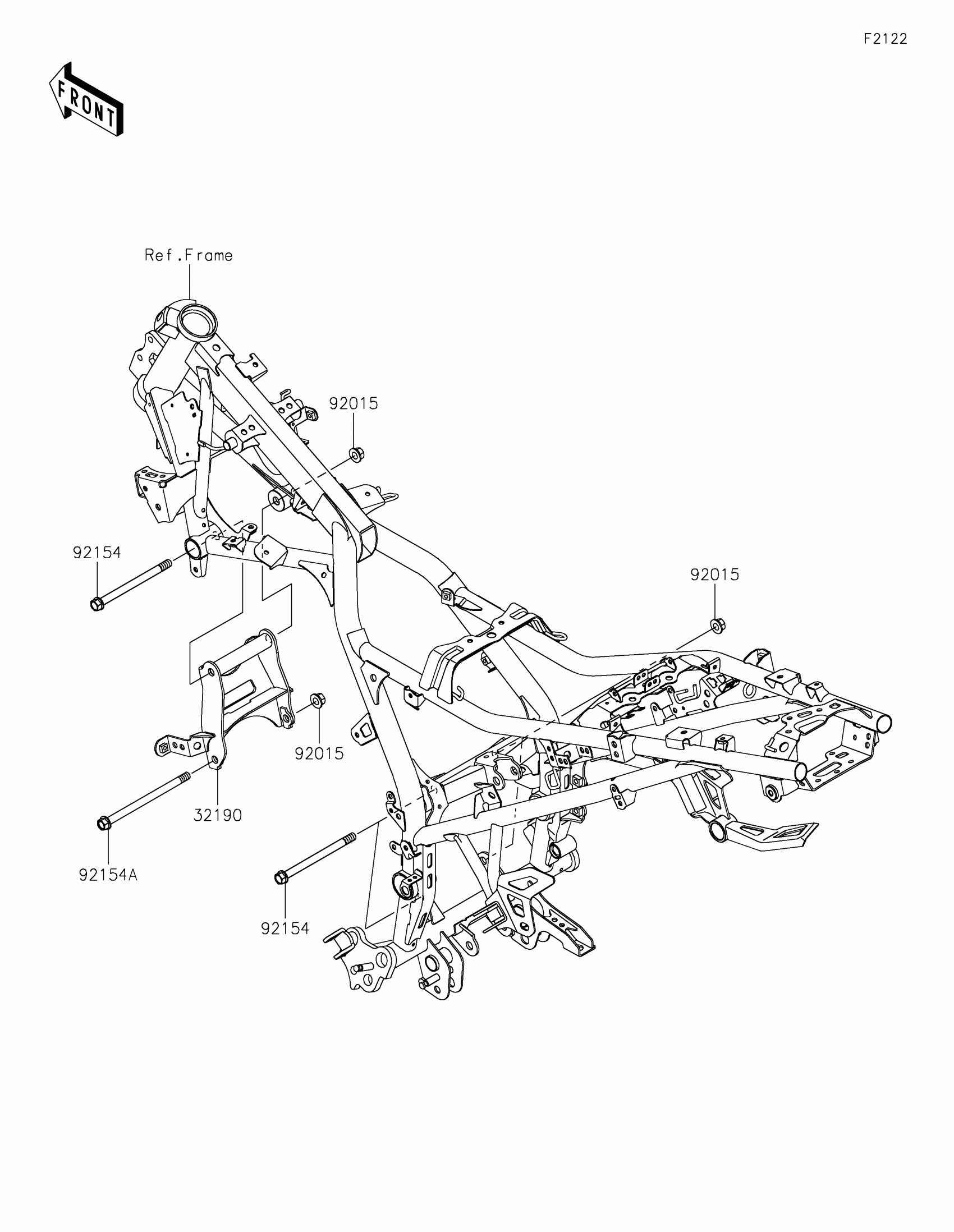

2020 Kawasaki Versys-X 300 ABS Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32190

BRACKET-ENGINE

32190-0740

1

$95.10

In stock

92015

NUT,FLANGED,10MM

92015-1415

1

$3.72

In stock

92154

BOLT,FLANGED,10X135

92154-0359

1

$3.68

In stock

92154A

BOLT

92154-2509

1

$16.68

In stock
