2010 Kawasaki Versys® Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

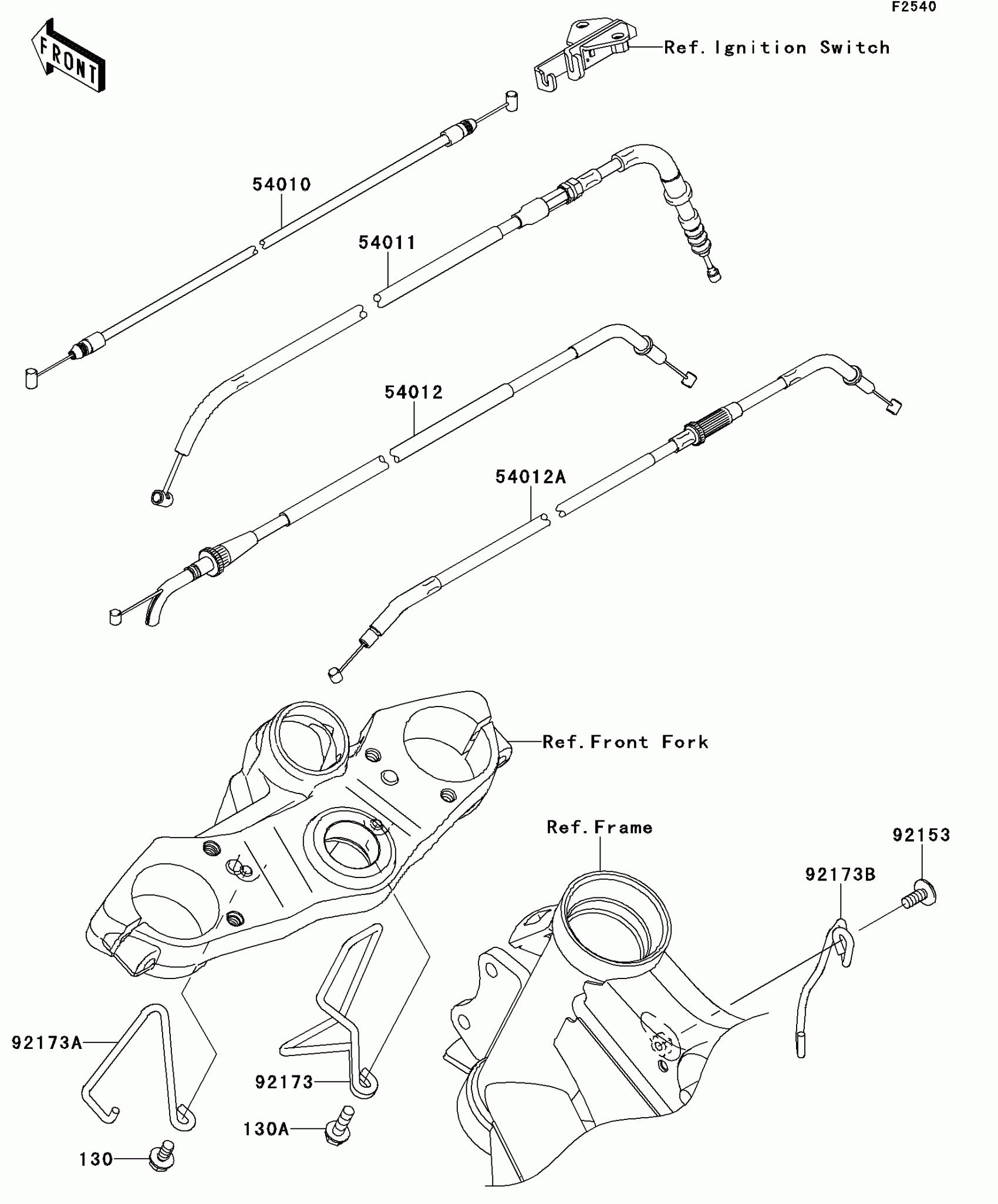

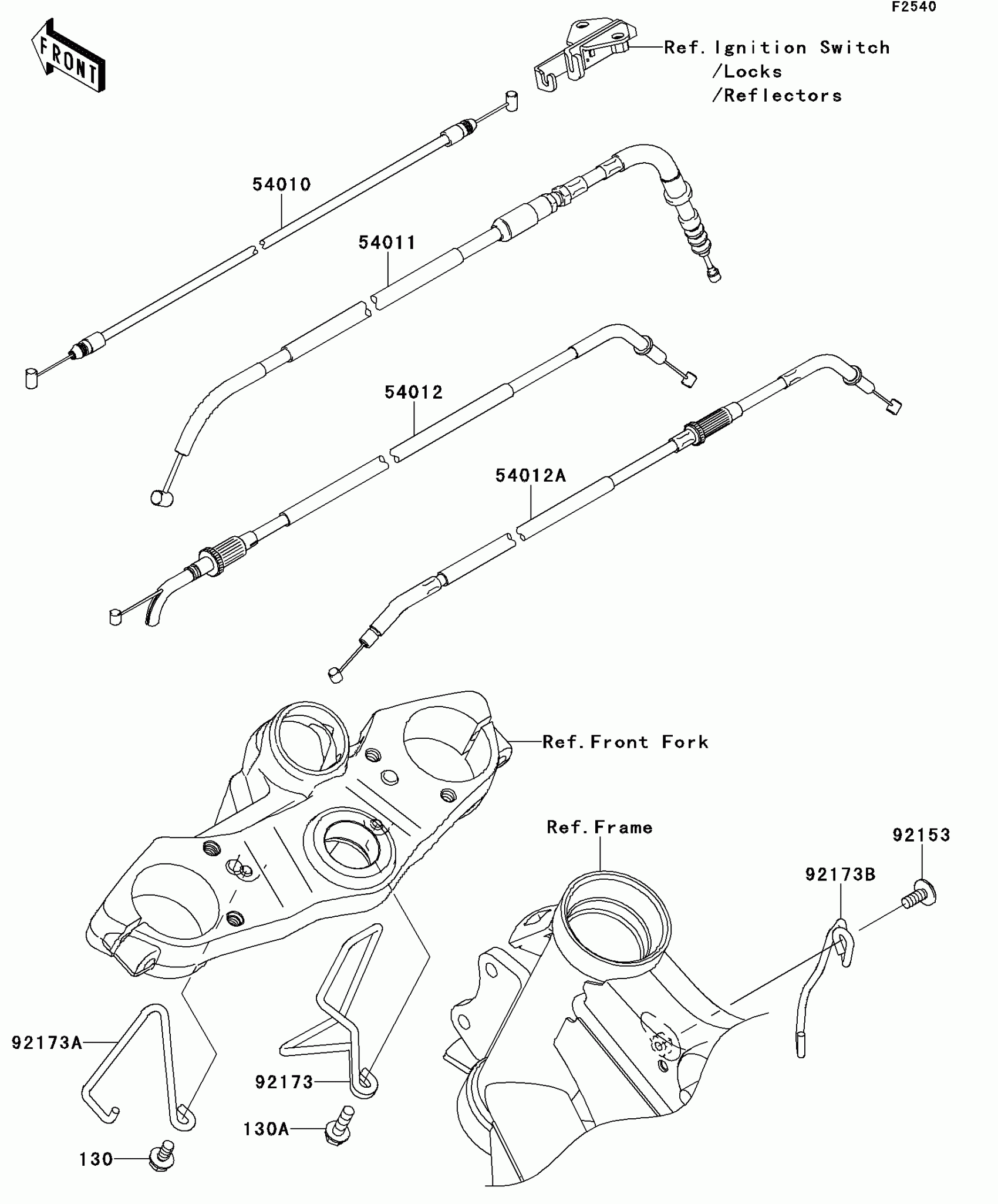

2010 Kawasaki Versys® Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

54010

CABLE,SEAT LOCK

54010-0029

1

$16.37

In stock

54011

CABLE-CLUTCH

54011-0082

1

$30.40

In stock

54012

1

$25.17

In stock

54012A

1

$25.17

In stock

92153

BOLT,SOCKET,6X14

92153-1446

1
Out of stock

92173

CLAMP,UPP BKT,RH

92173-0109

1

$14.29

In stock

92173A

CLAMP,UPP BKT,LH

92173-0216

1

$15.20

In stock

92173B

CLAMP,CABLE

92173-0241

1

$12.56

In stock

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

130A

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock
