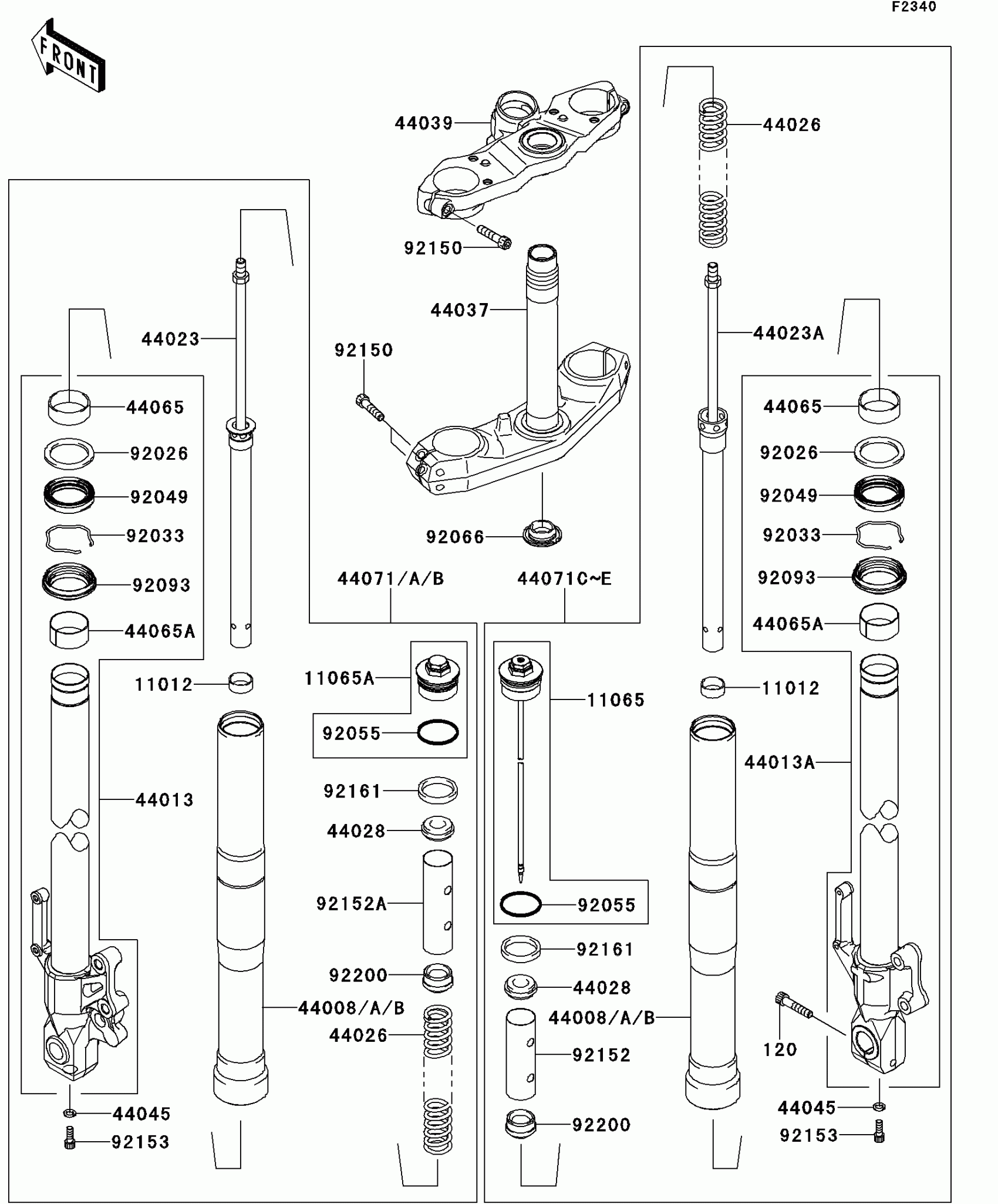

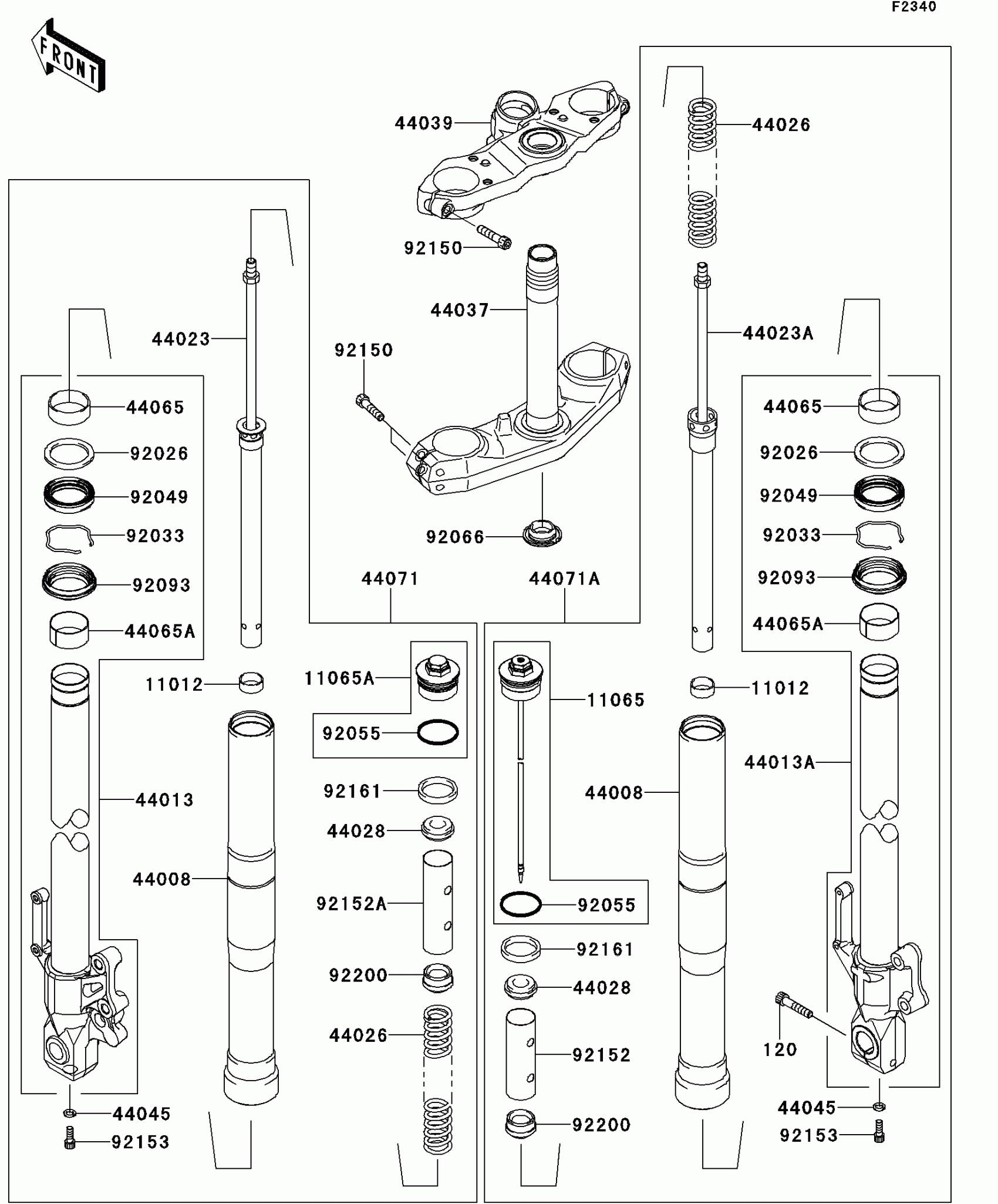

Kawasaki Versys® Front Fork Diagram

#

Description
Price

11012

CAP

11012-1761

$35.56

11065

CAP,FORK BOLT COMP,RH

11065-0196

$67.33

11065A

CAP,FORK BOLT COMP,LH

11065-0197

$67.33

44008

PIPE-FORK OUTER,A.BLACK

44008-0037-499

$282.30

44013

PIPE-FORK INNER,LH,F.S.BLACK

44013-0156-18R

Unavailable

44013A

PIPE-FORK INNER,RH,F.S.BLACK

44013-0157-18R

Unavailable

44023

CYLINDER-SET-FORK,LH

44023-0048

$168.36

44023A

CYLINDER-SET-FORK,RH

44023-0049

$168.36

44026

SPRING-FRONT FORK

44026-0097

$66.72

44028

GUIDE-FORK SPRING

44028-1083

$9.07

44037

HOLDER-FORK UNDER

44037-0053

$409.25

44039

HOLDER-FORK UPPER,P.SILVER

44039-0064-458

Unavailable

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44065

BUSHING-FRONT FORK,GUIDE

44065-0001

$15.89

44065A

BUSHING-FRONT FORK,SLIDE

44065-0002

$15.89

44071

DAMPER-ASSY,FORK,LH

44071-5111

$737.39

44071A

DAMPER-ASSY,FORK,RH

44071-5112

$737.39

92026

SPACER,FORK OUTER

92026-1276

$7.25

92033

RING-SNAP

92033-1222

$4.88

92049

SEAL-OIL

92049-0058

$20.44

92055

RING-O

92055-0131

$4.95

92066

PLUG

92066-0032

$11.19

92093

SEAL,DUST

92093-0035

$20.73

92150

BOLT,SOCKET

92150-1511

Unavailable

92152

COLLAR,FORK,L=100

92152-0497

$18.19

92152A

COLLAR,FORK,L=117.5

92152-0498

$18.19

92153

BOLT,SOCKET,8X22

92153-0028

$7.81

92161

DAMPER

92161-0468

$16.66

92200

WASHER

92200-1464

$8.19

120

BOLT-SOCKET,8X40

120CB0840

$4.24
