2010 Kawasaki Versys® Rear Master Cylinder Diagram

← All diagrams

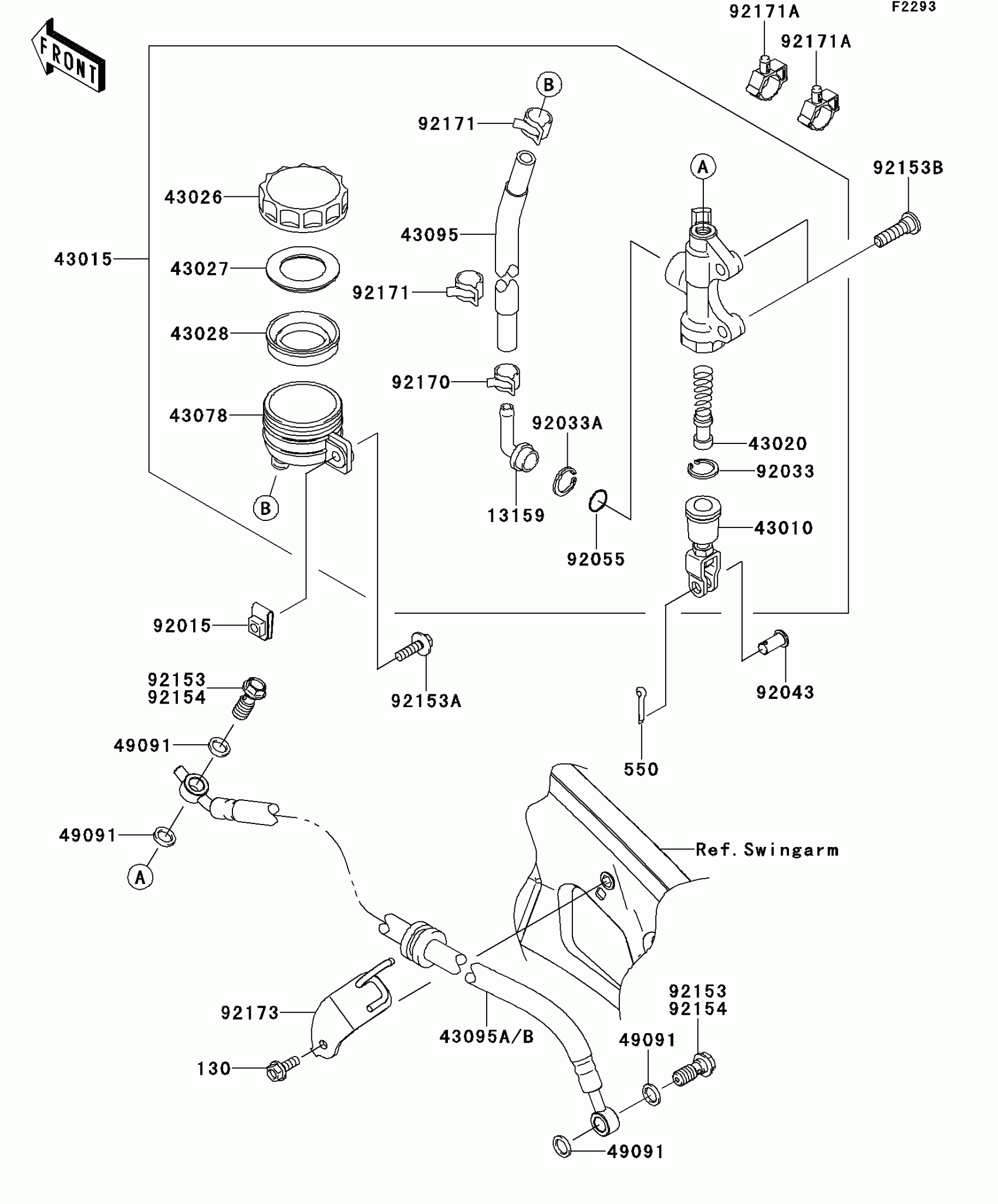

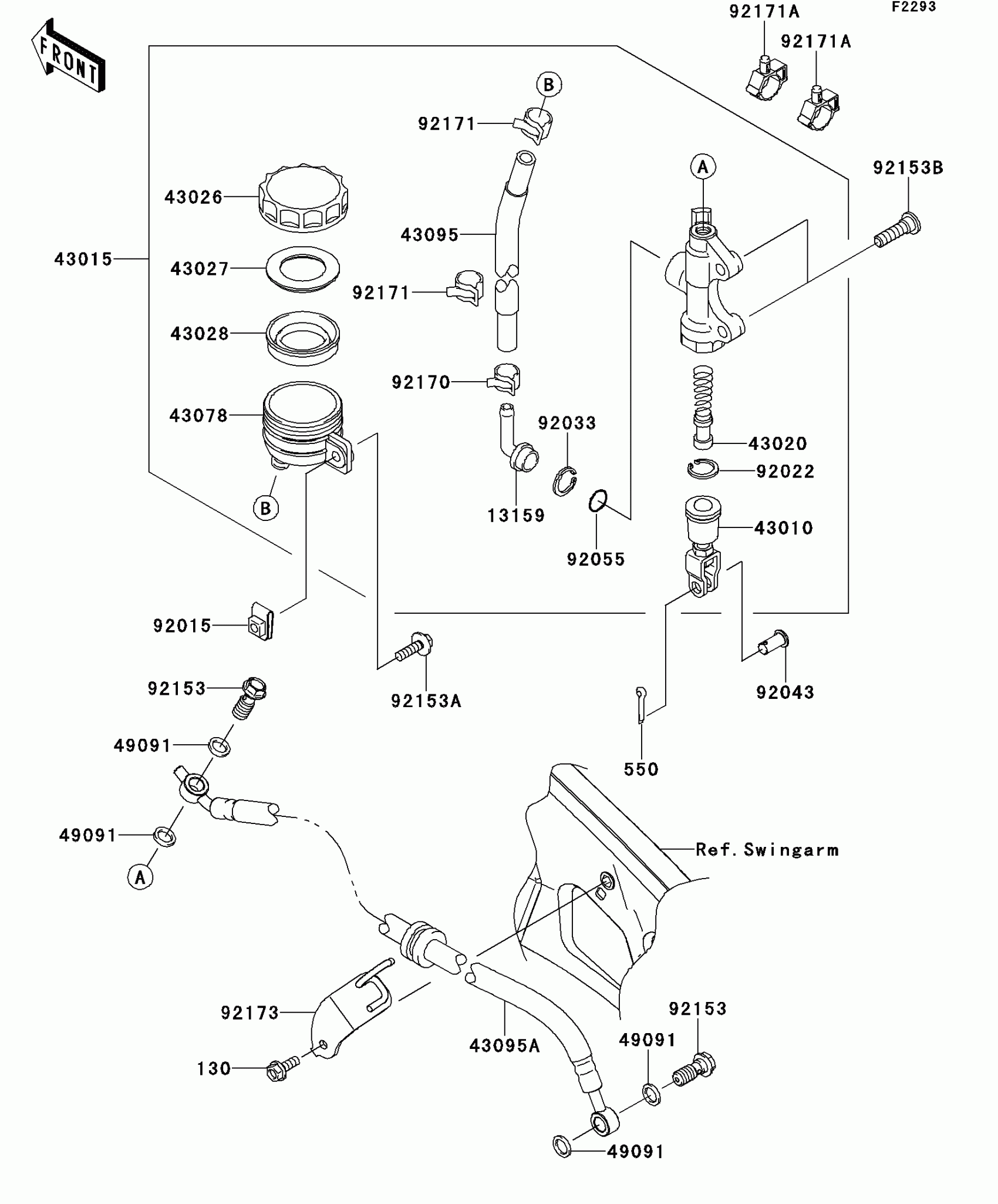

Find the part on the Rear Master Cylinder diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Versys® Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13159

CONNECTOR

13159-1056

1

$11.16

In stock

43010

ROD-ASSY-BRAKE

43010-1074

1

$60.54

In stock

43015

1

$276.83

In stock

43020

PISTON-COMP-BRAKE

43020-1094

1

$59.90

In stock

43026

CAP-BRAKE

43026-1051

1

$31.36

In stock

43027

PLATE-DIAPHRAGM

43027-1051

1

$4.22

In stock

43028

1

$15.01

In stock

43078

1

$28.80

In stock

43095

1

$18.46

In stock

43095A

HOSE-BRAKE,RR

43095-0254

1

$55.59

In stock

49091

1

$1.81

In stock

92015

NUT,6MM

92015-1602

1

$5.84

In stock

92022

WASHER,CIRCRIP

92022-1601

1
Out of stock

92033

RING-SNAP,20.5MM

92033-1186

1

$3.94

In stock

92043

PIN,8X17

92043-0104

1

$3.11

In stock

92055

RING-O,MASTER CYLINDER

92055-1251

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92153A

BOLT,6X22

92153-0725

1
Out of stock

92153B

BOLT,SOCKET,8X30

92153-1624

1

$3.11

In stock

92170

CLAMP,HOSE

92170-1091

1

$3.97

In stock

92171

CLAMP,HOSE

92171-0463

1

$5.56

In stock

92171A

CLAMP

92171-0955

1

$4.68

In stock

92173

CLAMP,BRAKE HOSE

92173-0128

1

$32.59

In stock

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

550

PIN-COTTER,2.0X15

550AA2015

1

$0.94

In stock
