Partiron

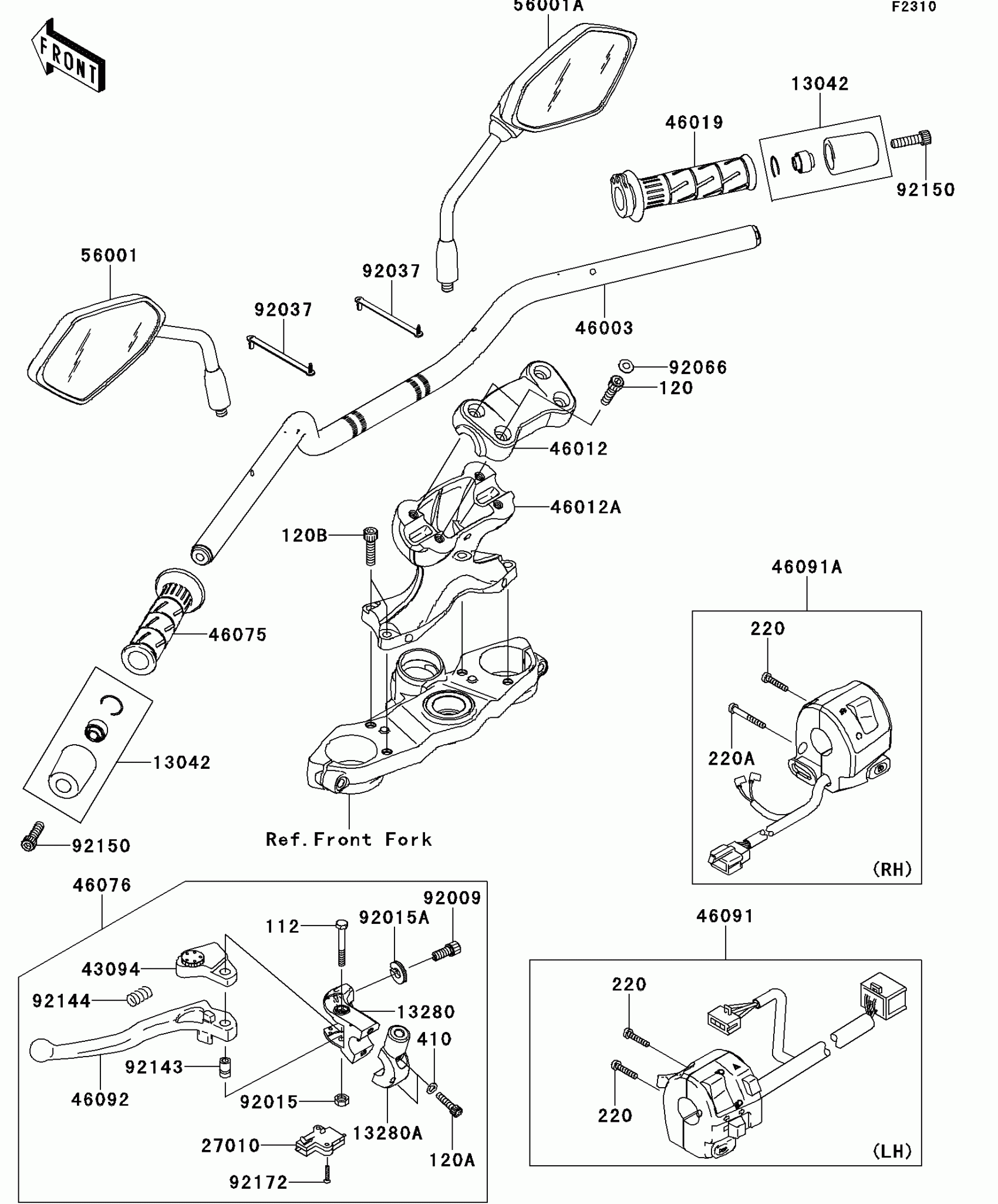

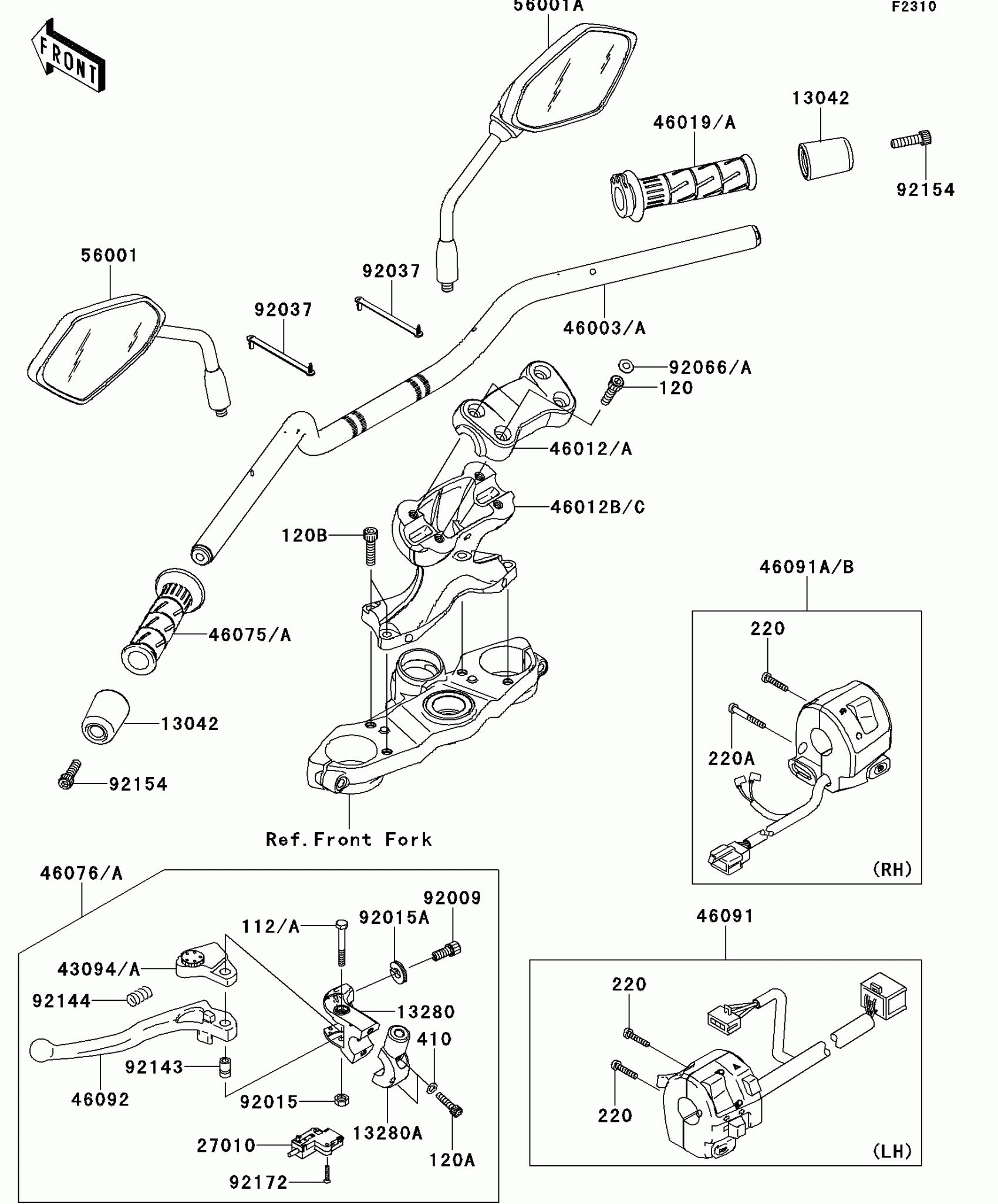

Kawasaki Versys® Handlebar Diagram

#

Description
Price

13042

WEIGHT,HANDLE

13042-5002

$45.66

13280

HOLDER,CLUTCH LEVER

13280-0306

$47.37

13280A

HOLDER,CLUTCH LEVER

13280-0307

$32.56

27010

SWITCH,CLUTCH,BLACK

27010-1094

$25.31

43094

ADJUSTER,CLUTCH LEVER

43094-1053

$36.81

46003

HANDLE,F.P.SILVER

46003-0167-10T

$151.60

46012

HOLDER-HANDLE,UPP,P.SILVER

46012-0029-458

$97.35

46012A

HOLDER-HANDLE,LWR,P.SILVER

46012-0030-458

Unavailable

46019

GRIP-ASSY,THROTTLE

46019-0001

$37.15

46075

GRIP,HANDLE,LH

46075-1144

$18.64

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0052

$111.17

46091

HOUSING-ASSY-CONTROL,LH

46091-0216

$175.25

46091A

HOUSING-ASSY-CONTROL,RH

46091-0217

$121.40

46092

LEVER-GRIP,CLUTCH

46092-0031

$20.78

56001

MIRROR-ASSY,LH

56001-0174

$86.42

56001A

MIRROR-ASSY,RH

56001-0175

$90.54

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$11.50

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$7.54

92037

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92066

PLUG

92066-1281

$4.39

92143

COLLAR

92143-1379

$7.25

92144

SPRING

92144-1467

$4.88

92150

BOLT,SOCKET,8X30

92150-1604

$4.37

92172

SCREW,3X16

92172-0183

$1.57

112

BOLT-UPSET,6X45

112AB0645

$3.29

120

BOLT-SOCKET,8X30

120CA0830

$1.98

120A

BOLT-SOCKET,6X25

120CB0625

$1.81

120B

BOLT-SOCKET,8X30

120CC0830

$2.82

220

SCREW-PAN-CROS,5X25

220AB0525

$2.66

220A

SCREW-PAN-CROS,5X40

220AB0540

$1.49

410

WASHER-PLAIN-SMALL,6MM

410AB0600

$0.68
