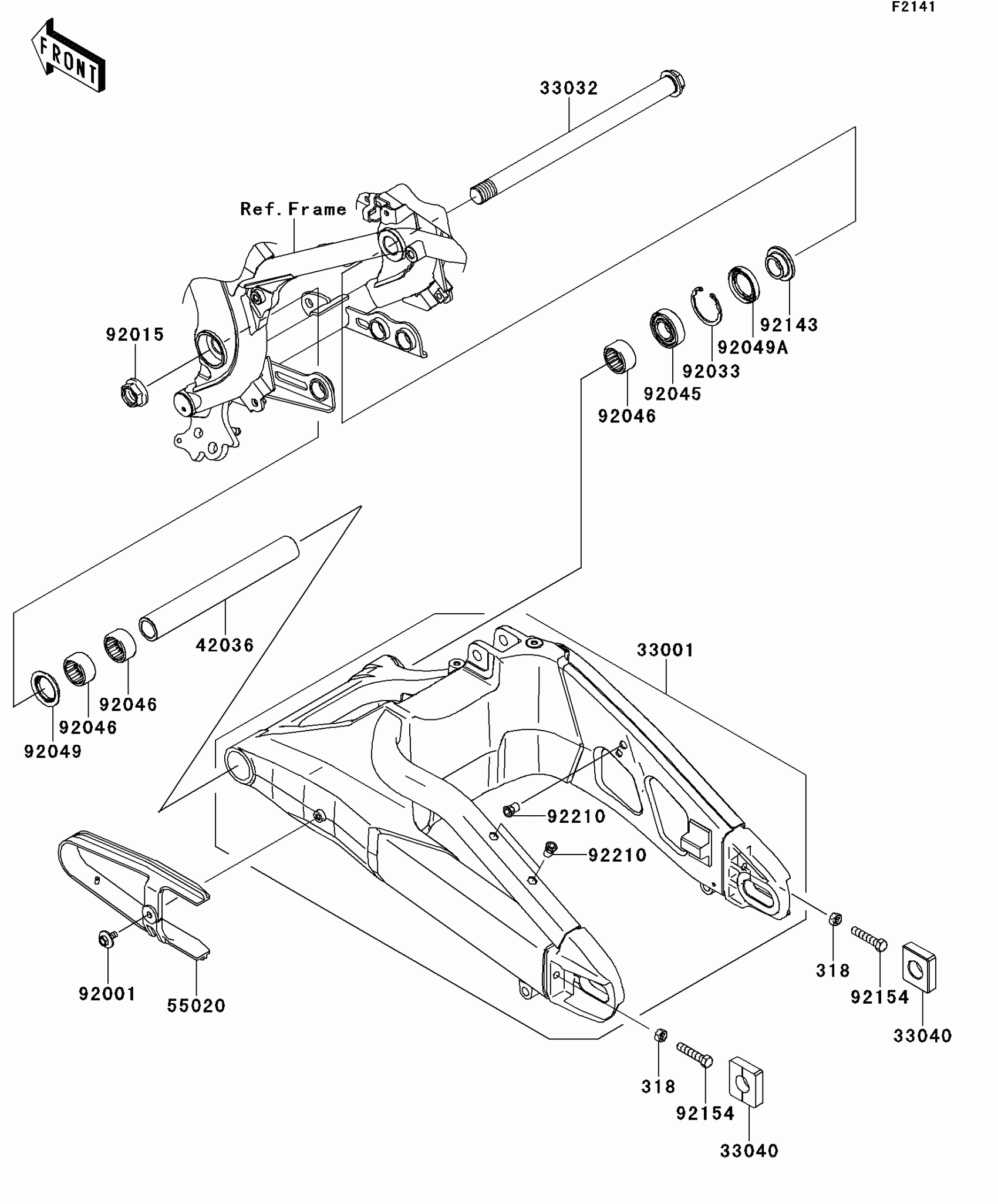

2010 Kawasaki Versys® Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Versys® Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

33001

ARM-COMP-SWING,P.SILVER

33001-0209-458

1
Out of stock

33032

SHAFT-SWING ARM

33032-1142

1

$107.05

In stock

33040

ADJUSTER-CHAIN

33040-1109

1

$18.36

In stock

42036

1

$75.03

In stock

55020

GUARD,CHAIN

55020-0234

1

$37.75

In stock

92001

BOLT,6X16

92001-1950

1

$3.43

In stock

92015

NUT,FLANGED,20MM

92015-1724

1

$14.14

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92045

1

$11.39

In stock

92046

1

$19.97

In stock

92049

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock

92049A

SEAL-OIL,TC28426.5

92049-1185

1
Out of stock

92143

1

$18.34

In stock

92154

BOLT,8X40

92154-0288

1

$3.90

In stock

92210

NUT,POP,6MM,L=15

92210-1397

1
Out of stock

318

NUT-HEX-SMALL,8MM

318BA0800

1

$1.20

In stock
