2010 Kawasaki Versys® Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

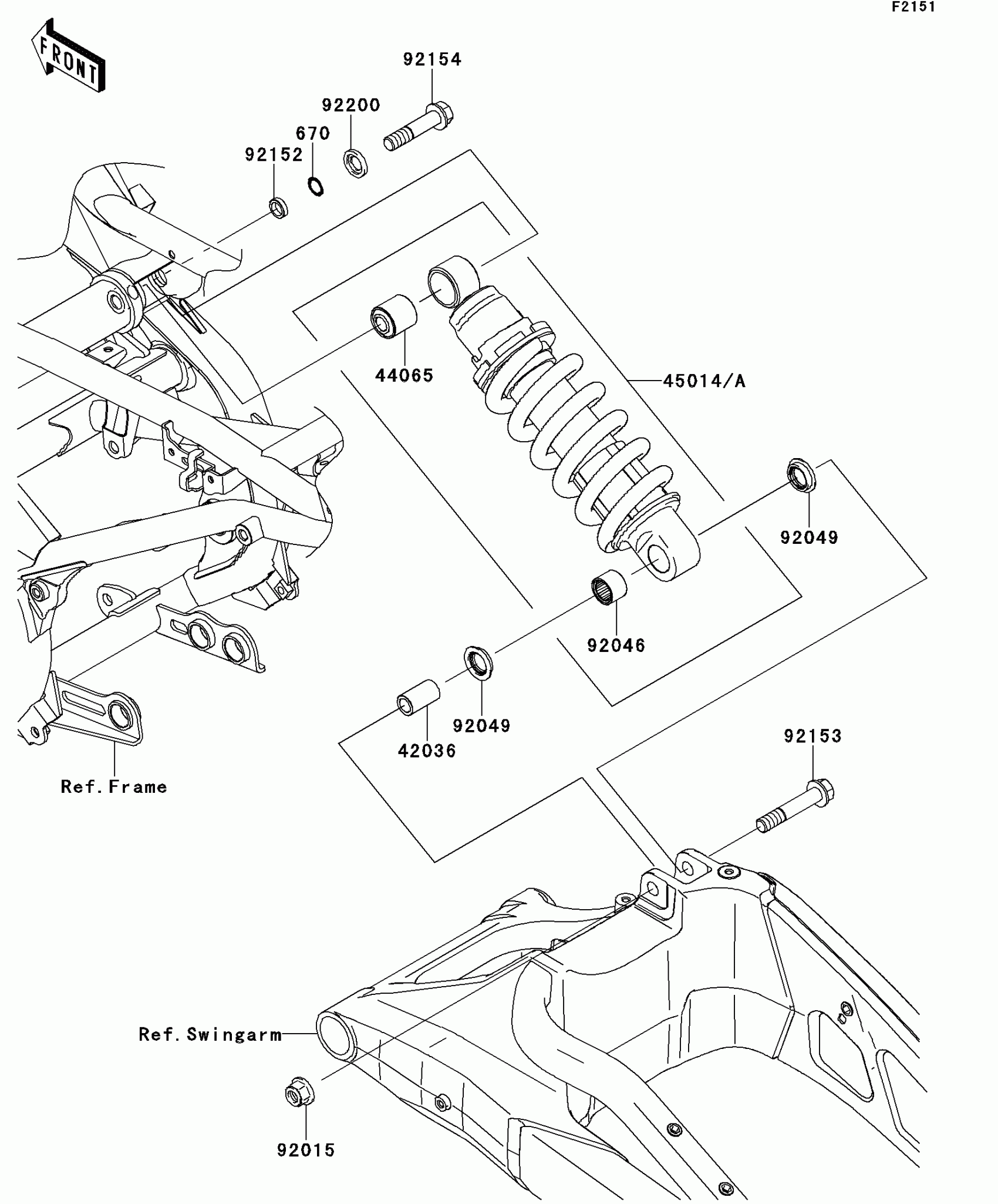

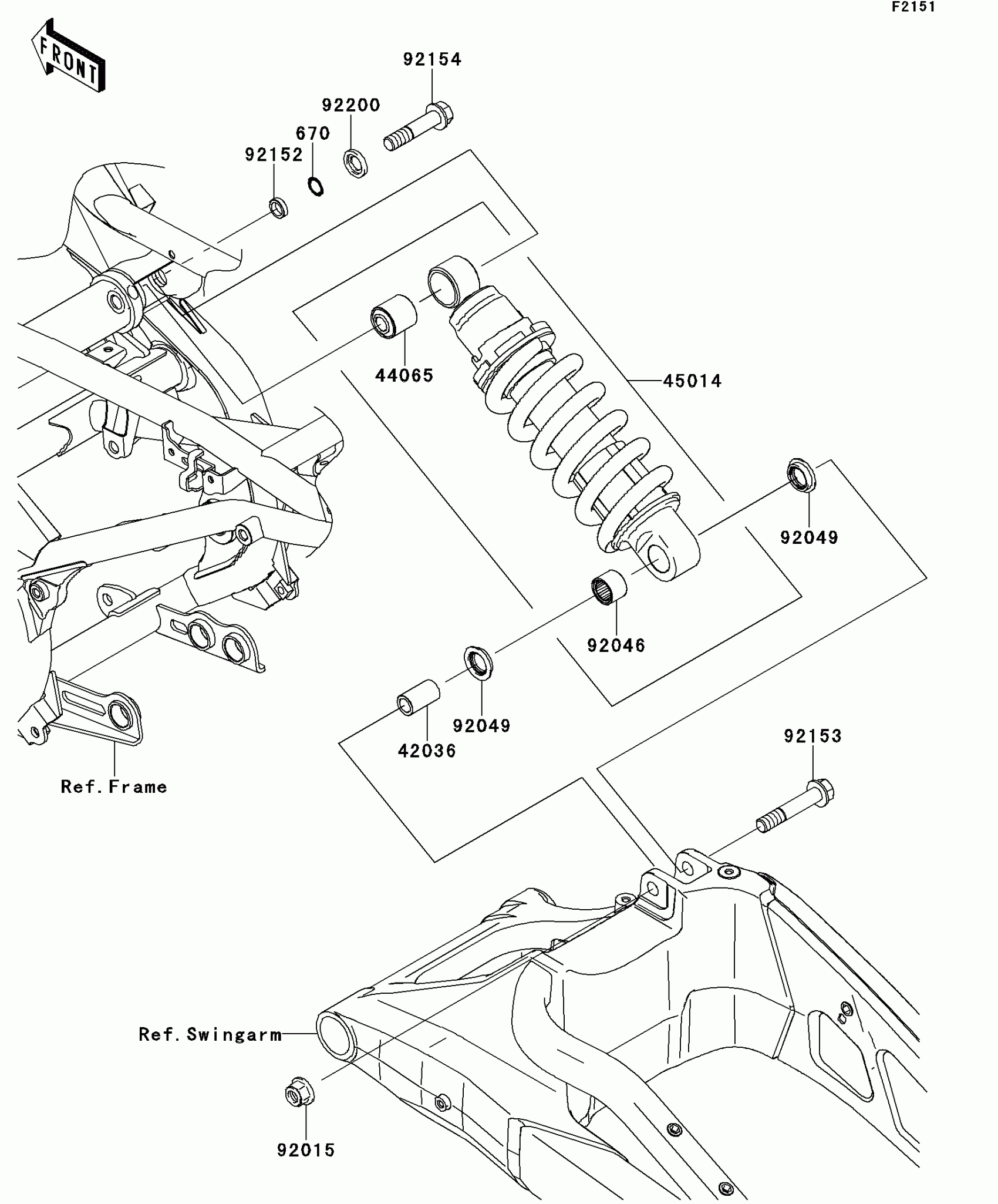

2010 Kawasaki Versys® Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

42036

SLEEVE,12.1X18X32

42036-0024

1

$12.95

In stock

44065

1

$36.05

In stock

45014

SHOCKABSORBER,P.SILVER

45014-0147-458

1

$665.00

In stock

92015

1

$7.04

In stock

92046

BEARING-NEEDLE,SFYZM182417

92046-1272

1
Out of stock

92049

SEAL-OIL,KCR MF018N1

92049-1493

1
Out of stock

92152

1

$3.97

In stock

92153

BOLT,FLANGED,12X65

92153-1767

1

$9.37

In stock

92154

BOLT,FLANGED,12X55

92154-0289

1

$7.84

In stock

92200

WASHER,12.5X24X3.2

92200-0519

1
Out of stock

670

O RING,12MM

670B2012

1

$2.58

In stock
