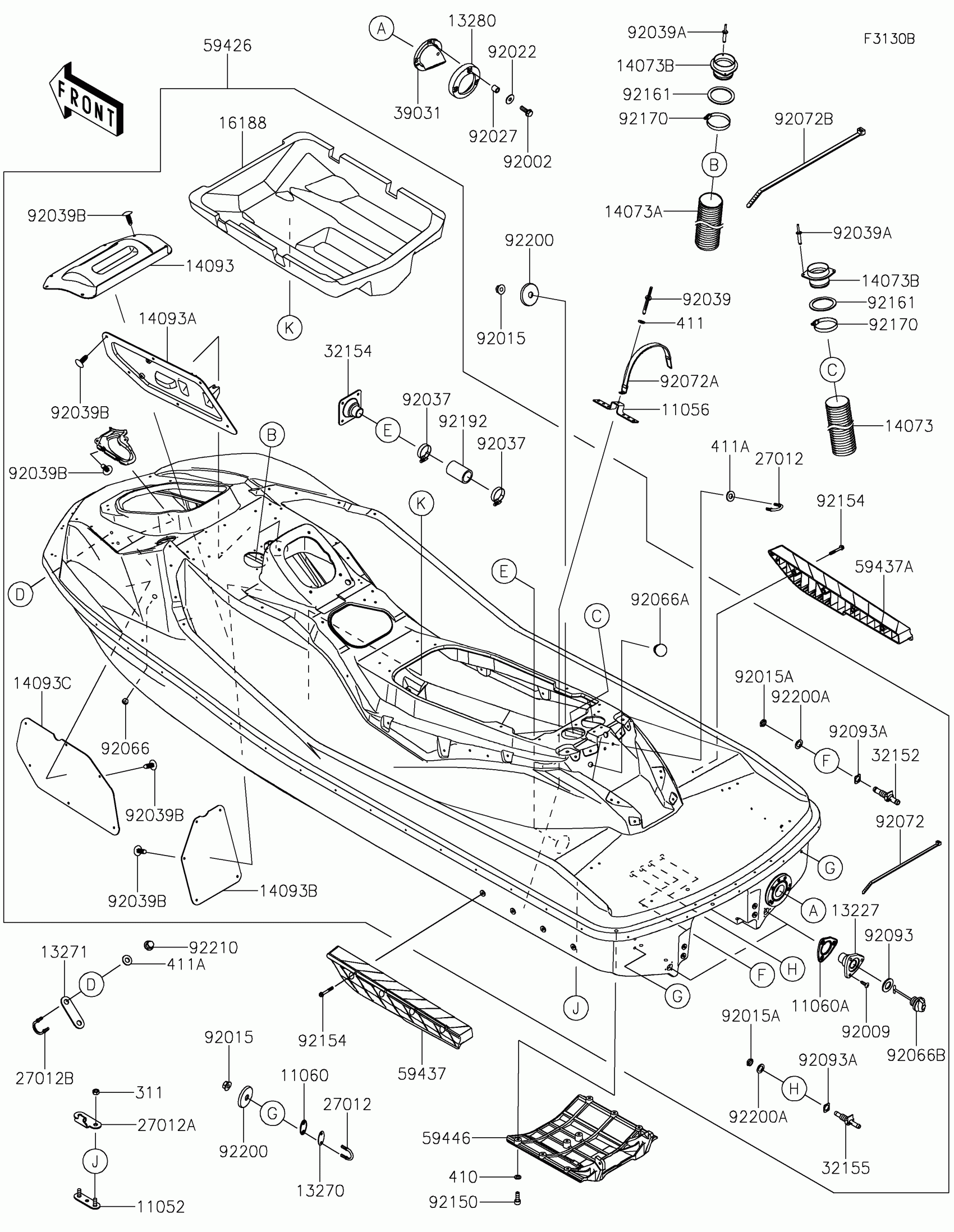

Find the part on the Hull diagram for your 2025 Kawasaki Ultra 160LX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ultra 160LX Hull Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11052

BRACKET,RR DUCT

11052-3712

1
Out of stock

11056

BRACKET,WATER MUFFLER

11056-3722

1
Out of stock

11060

GASKET,U HOOK,RR

11060-3800

1
Out of stock

11060A

GASKET,DRAIN PLUG

11060-3801

1
Out of stock

13227

HOUSING,DRAIN PLUG,F.BLACK

13227-3721-6Z

1
Out of stock

13270

PLATE

13270-3860

1

$8.20

In stock

13271

PLATE

13271-3724

1

$3.85

In stock

13280

1

$25.92

In stock

14073

DUCT

14073-0868

1

$15.81

In stock

14073A

DUCT,L=800

14073-0878

1

$21.41

In stock

14073B

DUCT

14073-3805

1

$5.76

In stock

14093

COVER,BATTERY

14093-1162

1
Out of stock

14093A

COVER,STORAGE CASE,RH

14093-1163

1
Out of stock

14093B

COVER,STORAGE CASE,RR

14093-1211

1
Out of stock

14093C

COVER,STORAGE CASE,LH

14093-1212

1
Out of stock

16188

FLOAT

16188-0063

1
Out of stock

27012

HOOK

27012-3797

1
Out of stock

27012A

HOOK

27012-3816

1
Out of stock

27012B

HOOK

27012-3821

1
Out of stock

32152

PIPE

32152-3749

1
Out of stock

32154

PIPE,DRIVE SHAFT

32154-3714

1
Out of stock

32155

PIPE,COOLING

32155-1511

1
Out of stock

39031

CAP-END

39031-3704

1

$41.65

In stock

59426

HULL-COMP,BLACK

59426-0050-650

1
Out of stock

59437

STABILIZER,LH,F.BLACK

59437-3749-6Z

1
Out of stock

59437A

STABILIZER,RH,F.BLACK

59437-3750-6Z

1
Out of stock

59446

COVER-JET PUMP

59446-0004

1
Out of stock

92002

BOLT,6X20

92002-3755

1
Out of stock

92009

SCREW,TAPPING,4X16

92009-3849

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1933

1
Out of stock

92015A

NUT,20MM

92015-3738

1
Out of stock

92022

WASHER

92022-567

1
Out of stock

92027

COLLAR,6.2X10X10

92027-3705

1
Out of stock

92037

CLAMP

92037-3009

1
Out of stock

92039

RIVET

92039-0808

1
Out of stock

92039A

RIVET

92039-3775

1
Out of stock

92039B

RIVET

92039-3788

1
Out of stock

92066

PLUG

92066-1306

1
Out of stock

92066A

PLUG

92066-1550

1
Out of stock

92066B

PLUG,RR,DRAIN,F.BLACK

92066-3783-6Z

1
Out of stock

92072

BAND,L=188.85

92072-0105

1
Out of stock

92072A

BAND,314X18

92072-3814

1
Out of stock

92072B

BAND,L=608.22

92072-3884

1
Out of stock

92093

SEAL

92093-3720

1
Out of stock

92093A

SEAL

92093-3784

1
Out of stock

92150

BOLT,SOCKET,6X18

92150-3775

1
Out of stock

92154

BOLT,FLANGED,8X55

92154-1123

1
Out of stock

92161

DAMPER

92161-3769

1

$3.37

In stock

92170

CLAMP

92170-1679

1

$5.95

In stock

92192

TUBE,39X51X78

92192-3756

1
Out of stock

92200

WASHER

92200-3779

1
Out of stock

92200A

WASHER,21X34X2

92200-3802

1
Out of stock

92210

NUT,CAP,8MM

92210-1132

1
Out of stock

311

NUT-HEX,6MM

311R0600

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM

410S0600

1
Out of stock

411

WASHER-PLAIN,5MM

411S0500

1
Out of stock

411A

WASHER-PLAIN,8MM

411S0800

1
Out of stock
