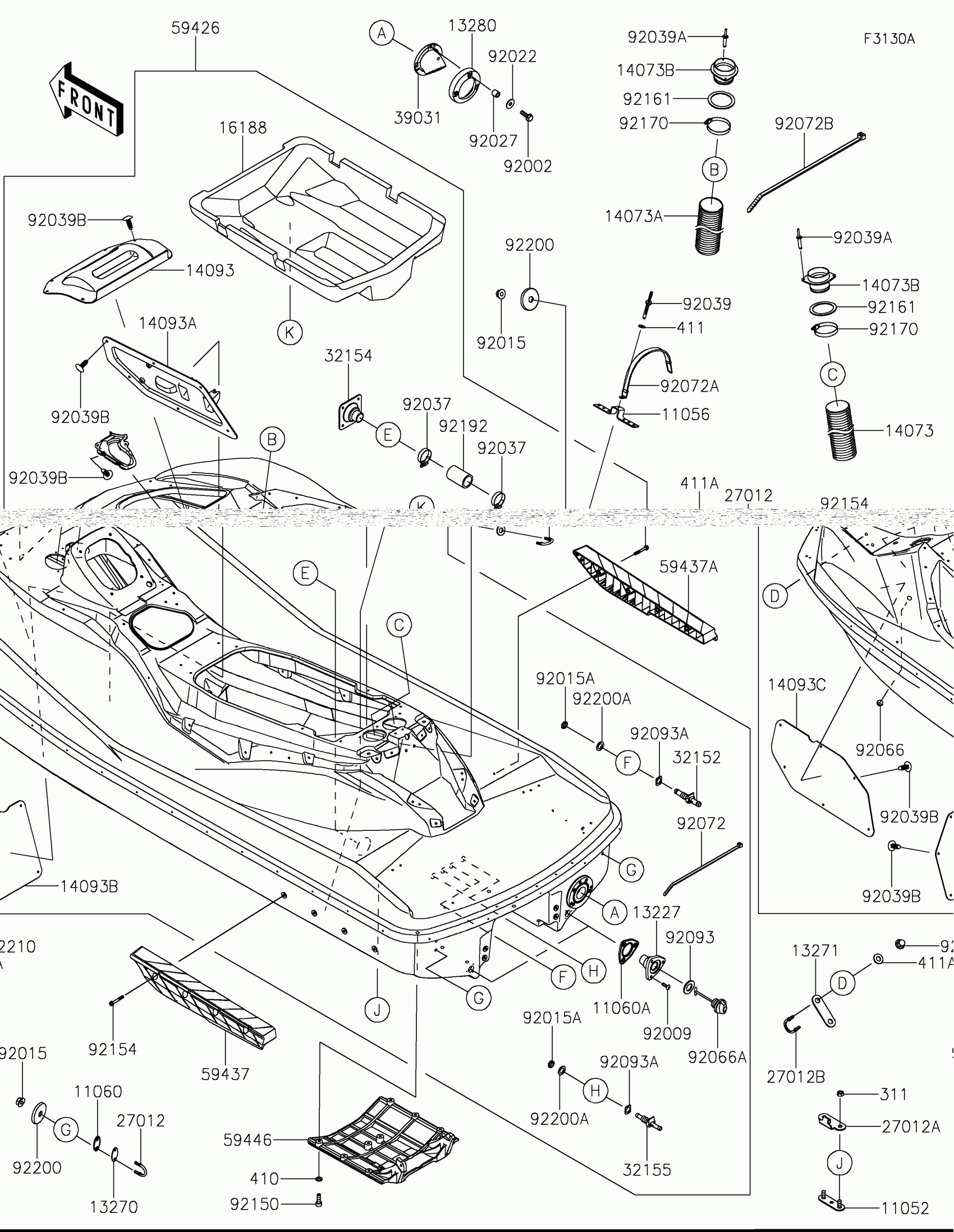

Kawasaki Ultra 160LX Hull(ASFNN) Diagram

#

Description
Price

11052

BRACKET,RR DUCT

11052-3712

$8.80

11056

BRACKET,WATER MUFFLER

11056-3722

$12.03

11060

GASKET,U HOOK,RR

11060-3800

$5.41

11060A

GASKET,DRAIN PLUG

11060-3801

$4.96

13227

HOUSING,DRAIN PLUG,F.BLACK

13227-3721-6Z

$6.08

13270

PLATE

13270-3860

$8.20

13271

PLATE

13271-3724

$3.85

13280

HOLDER,EXHAUST VALVE

13280-3718

$25.92

14073

DUCT

14073-0868

$15.81

14073A

DUCT,L=800

14073-0878

$21.41

14073B

DUCT

14073-3805

$5.76

14093

COVER,BATTERY

14093-1162

$20.03

14093A

COVER,STORAGE CASE,RH

14093-1163

$17.78

14093B

COVER,STORAGE CASE,RR

14093-1211

$10.47

14093C

COVER,STORAGE CASE,LH

14093-1212

$16.78

16188

FLOAT

16188-0063

$53.98

27012

HOOK

27012-3797

$32.91

27012A

HOOK

27012-3816

$8.93

27012B

HOOK

27012-3821

$25.59

32152

PIPE

32152-3749

$5.39

32154

PIPE,DRIVE SHAFT

32154-3714

$33.87

32155

PIPE,COOLING

32155-1511

$5.39

39031

CAP-END

39031-3704

$41.65

59426

HULL-COMP,BLACK

59426-0041-650

$5,118.82

59437

STABILIZER,LH,F.BLACK

59437-3749-6Z

$140.17

59437A

STABILIZER,RH,F.BLACK

59437-3750-6Z

$140.17

59446

COVER-JET PUMP

59446-0004

$171.74

92002

BOLT,6X20

92002-3755

$3.57

92009

SCREW,TAPPING,4X16

92009-3849

$1.20

92015

NUT,FLANGED,8MM

92015-1933

$2.99

92015A

NUT,20MM

92015-3738

$7.22

92022

WASHER

92022-567

$1.89

92027

COLLAR,6.2X10X10

92027-3705

$8.63

92037

CLAMP

92037-3009

$3.25

92039

RIVET

92039-0808

$1.23

92039A

RIVET

92039-3775

$1.25

92039B

RIVET

92039-3788

$2.34

92066

PLUG

92066-1306

$4.14

92066A

PLUG,RR,DRAIN,F.BLACK

92066-3783-6Z

$13.20

92072

BAND,L=188.85

92072-0105

$1.30

92072A

BAND,314X18

92072-3814

$16.78

92072B

BAND,L=608.22

92072-3884

$2.66

92093

SEAL

92093-3720

$2.75

92093A

SEAL

92093-3784

$2.97

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

92154

BOLT,FLANGED,8X55

92154-1123

$9.42

92161

DAMPER

92161-3769

$3.37

92170

CLAMP

92170-1679

$5.95

92192

TUBE,39X51X78

92192-3756

$10.00

92200

WASHER

92200-3779

$4.66

92200A

WASHER,21X34X2

92200-3802

$5.42

92210

NUT,CAP,8MM

92210-1132

$3.19

311

NUT-HEX,6MM

311R0600

$0.65

410

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

411

WASHER-PLAIN,5MM

411S0500

$0.78

411A

WASHER-PLAIN,8MM

411S0800

$2.15
