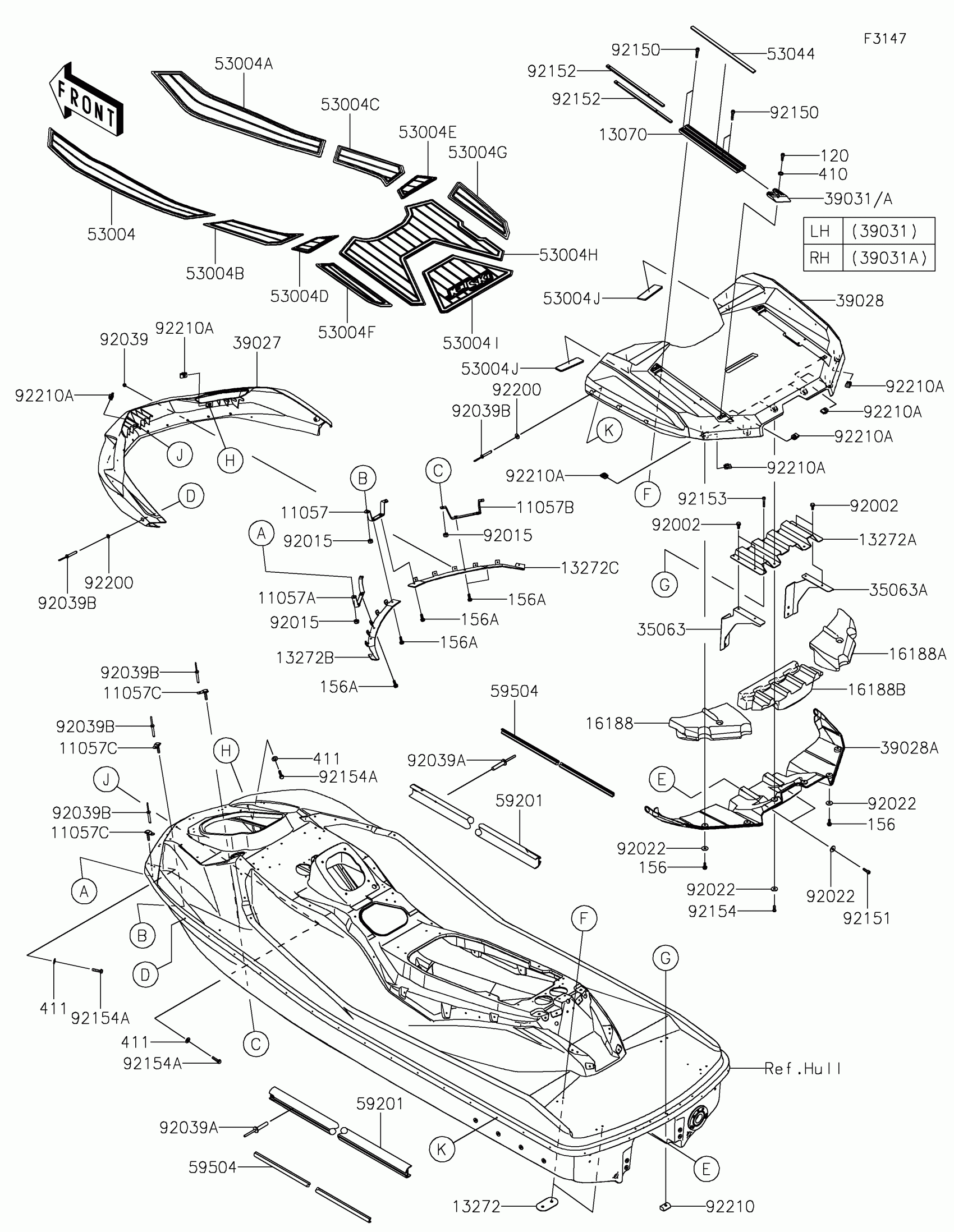

Kawasaki JET SKI® ULTRA® 160LX Pads Diagram

#

Description
Price

11057

BRACKET,FR BUMPER,CNT

11057-7809

$30.74

11057A

BRACKET,FR BUMPER,LH

11057-7810

$36.16

11057B

BRACKET,FR BUMPER,RH

11057-7811

$36.16

11057C

BRACKET,FR

11057-7812

$5.49

13070

GUIDE,RR

13070-0974

$44.28

13272

PLATE,GUIDE

13272-3849

$8.24

13272A

PLATE,RR,INSIDE

13272-3873

$83.42

13272B

PLATE,FR BUMPER,LH

13272-3984

$133.39

13272C

PLATE,FR BUMPER,RH

13272-3985

$133.39

16188

FLOAT,RR,LH

16188-0066

$16.95

16188A

FLOAT,RR,RH

16188-0067

$16.95

16188B

FLOAT,RR,CNT

16188-0068

$18.39

35063

STAY,RR,LH

35063-1567

$31.42

35063A

STAY,RR,RH

35063-1569

$31.42

39027

BUMPER-FRONT,BLACK

39027-0004-6Z

$296.37

39028

BUMPER-REAR,UPP,BLACK

39028-0006-6Z

$313.76

39028A

BUMPER-REAR,LWR,BLACK

39028-0007-6Z

$61.07

39031

CAP-END,LH,BLACK

39031-0025-6Z

$4.22

39031A

CAP-END,RH,BLACK

39031-0026-6Z

$4.22

53004

MAT,FLOOR,FR,LH

53004-0662

$84.73

53004A

MAT,FLOOR,FR,RH

53004-0663

$84.73

53004B

MAT,FLOOR,MIDDLE,LH

53004-0664

$31.34

53004C

MAT,FLOOR,MIDDLE,RH

53004-0665

$31.34

53004D

MAT,FLOOR,RR,LH

53004-0666

$17.60

53004E

MAT,FLOOR,RR,RH

53004-0667

$17.60

53004F

MAT,DECK,LH

53004-0668

$25.58

53004G

MAT,DECK,RH

53004-0669

$22.06

53004H

MAT,DECK,CNT,FR

53004-0670

$117.51

53004I

MAT,DECK,CNT,RR

53004-0671

$53.31

53004J

MAT,50X135X6

53004-0694

$4.12

53044

TRIM,GUIDE

53044-0733

$3.17

59201

BUMPER,SIDE,BLACK

59201-0008-6Z

$165.68

59504

INSERT-BOAT FENDER,SIDE,F.SIL

59504-0002-AG

$80.84

92002

BOLT,6X16

92002-3728

$3.24

92015

NUT,LOCK,6MM

92015-3766

$4.46

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92039

RIVET

92039-3733

$1.81

92039A

RIVET

92039-3771

$0.79

92039B

RIVET

92039-3773

$0.87

92150

BOLT,SOCKET,6X30

92150-3822

$3.32

92151

BOLT,SOCKET,6X20

92151-3774

$1.35

92152

COLLAR,GUIDE

92152-2815

$42.88

92153

BOLT,SOCKET,5X30

92153-3742

$2.09

92154

BOLT,SOCKET,6X18

92154-4447

$1.49

92154A

BOLT,FLANGED,6X28

92154-4484

$3.97

92200

WASHER,5X12X1

92200-3796

$1.57

92210

NUT

92210-1892

$15.80

92210A

NUT,6MM

92210-3768

$4.39

120

BOLT-SOCKET,6X20

120R0620

$2.74

156

BOLT-WP,6X16

156R0616

$2.76

156A

BOLT-WP,6X18

156R0618

$2.84

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.68

411

WASHER-PLAIN,6MM

411S0600

$1.49
