Partiron

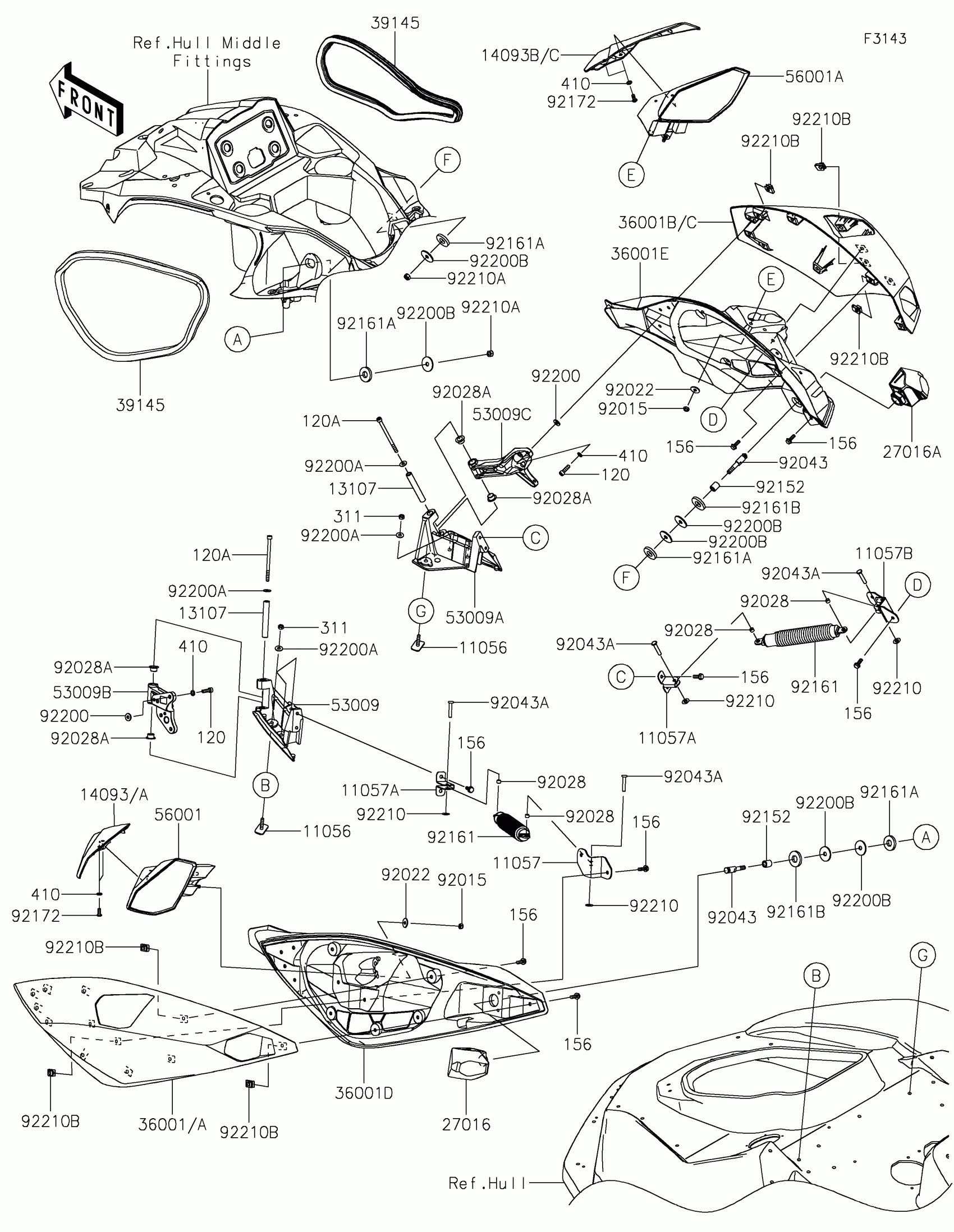

Kawasaki JET SKI® ULTRA® 160LX Hull Fittings(Side Storage) Diagram

#

Description
Price

11056

BRACKET

11056-3724

$4.46

11057

BRACKET,HATCH SIDE

11057-7467

$33.39

11057A

BRACKET,DECK SIDE

11057-7469

$10.68

11057B

BRACKET,HATCH SIDE

11057-7470

$33.39

13107

SHAFT,FRONT HINGE

13107-0944

$14.56

14093

COVER,MIRROR,LH,M.S.GOLD

14093-1146-66U

$45.61

14093A

COVER,MIRROR,LH,M.G.S.D.GREEN

14093-1146-72Q

$45.61

14093B

COVER,MIRROR,RH,M.S.GOLD

14093-1147-66U

$45.61

14093C

COVER,MIRROR,RH,M.G.S.D.GREEN

14093-1147-72Q

$45.61

27016

LOCK-ASSY,SIDE COVER,LH

27016-0103

$76.02

27016A

LOCK-ASSY,SIDE COVER,RH

27016-0104

$76.02

36001

COVER-SIDE,LH,M.S.GOLD

36001-0710-66U

$86.25

36001A

COVER-SIDE,LH,M.G.S.D.GREEN

36001-0710-72Q

$86.25

36001B

COVER-SIDE,RH,M.S.GOLD

36001-0711-66U

$86.25

36001C

COVER-SIDE,RH,M.G.S.D.GREEN

36001-0711-72Q

$86.25

36001D

COVER-SIDE,LH,INNER

36001-0712

$33.37

36001E

COVER-SIDE,RH,INNER

36001-0713

$31.70

39145

TRIM-SEAL

39145-0779

$10.02

53009

HINGE,DECK SIDE

53009-0308

$72.07

53009A

HINGE,DECK SIDE

53009-0309

$72.07

53009B

HINGE,HATCH SIDE

53009-0310

$90.85

53009C

HINGE,HATCH SIDE

53009-0311

$90.85

56001

MIRROR-ASSY,LH

56001-0440

$106.63

56001A

MIRROR-ASSY,RH

56001-0441

$106.63

92015

NUT,LOCK,6MM

92015-3766

$4.46

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92028

BUSHING

92028-3765

$2.28

92028A

BUSHING

92028-3770

$1.90

92043

PIN

92043-0754

$19.08

92043A

PIN,6X33

92043-3748

$10.76

92152

COLLAR,8.2X14X16.2

92152-0979

$12.85

92161

DAMPER,HATCH

92161-1581

$193.94

92161A

DAMPER

92161-3739

$4.20

92161B

DAMPER

92161-3747

$3.52

92172

SCREW,TAPPING,6X14

92172-1428

$1.49

92200

WASHER,6.5X16X2.0

92200-1543

$1.68

92200A

WASHER,6.5X16X1.0

92200-3712

$2.84

92200B

WASHER,8.5X32X2

92200-3786

$4.39

92210

NUT,SPEED,6MM

92210-3739

$1.59

92210A

NUT,LOCK,8MM

92210-3742

$5.71

92210B

NUT,6MM

92210-3768

$4.39

120

BOLT-SOCKET,6X22

120R0622

$2.24

120A

BOLT-SOCKET,6X95

120R0695

$8.29

156

BOLT-WP,6X18

156R0618

$2.84

311

NUT-HEX,6MM

311R0600

$0.65

410

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable
