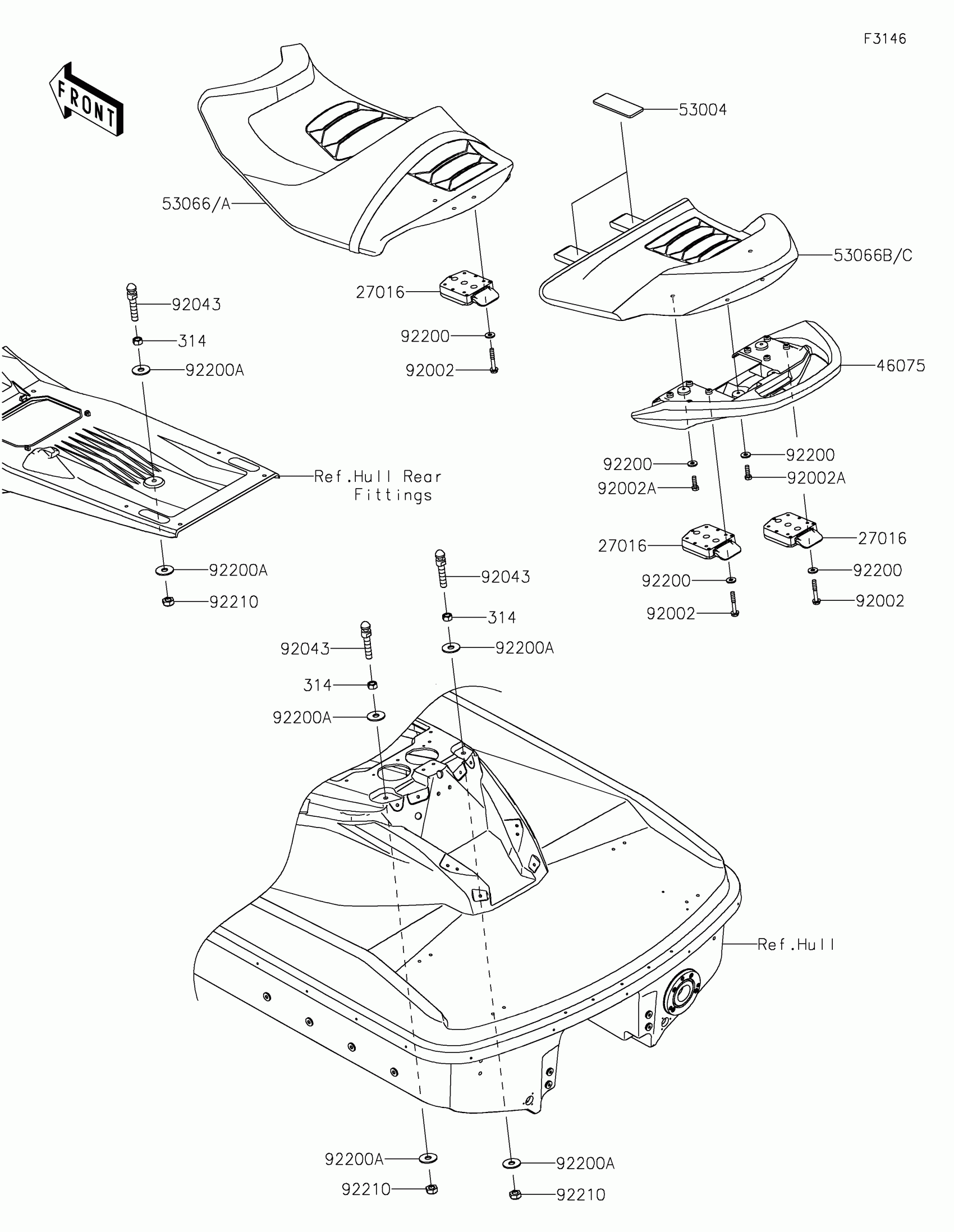

Kawasaki JET SKI® ULTRA® 160LX Seat Diagram

Description

Price

27016

LOCK-ASSY,SEAT,FR&RR

27016-0099

$87.08

46075

GRIP,RR

46075-0656

$183.34

53004

MAT,50X135X6

53004-0694

$4.12

53066

SEAT-ASSY,FR,BLACK+BRN+BRN

53066-0803-71A

$669.53

53066A

SEAT-ASSY,RR,BLACK+BRN

53066-0806-71B

$472.56

92002

BOLT,6X40

92002-3716

$3.79

92002A

BOLT,6X20

92002-3755

$3.57

92043

92043-3763

$47.69

92200

WASHER,6.5X16X2.0

92200-1543

$1.68

92200A

WASHER

92200-3762

$1.64

92210

NUT,LOCK,10MM

92210-3792

$6.56

314

NUT-HEX-FINE,10MM

314R1000
