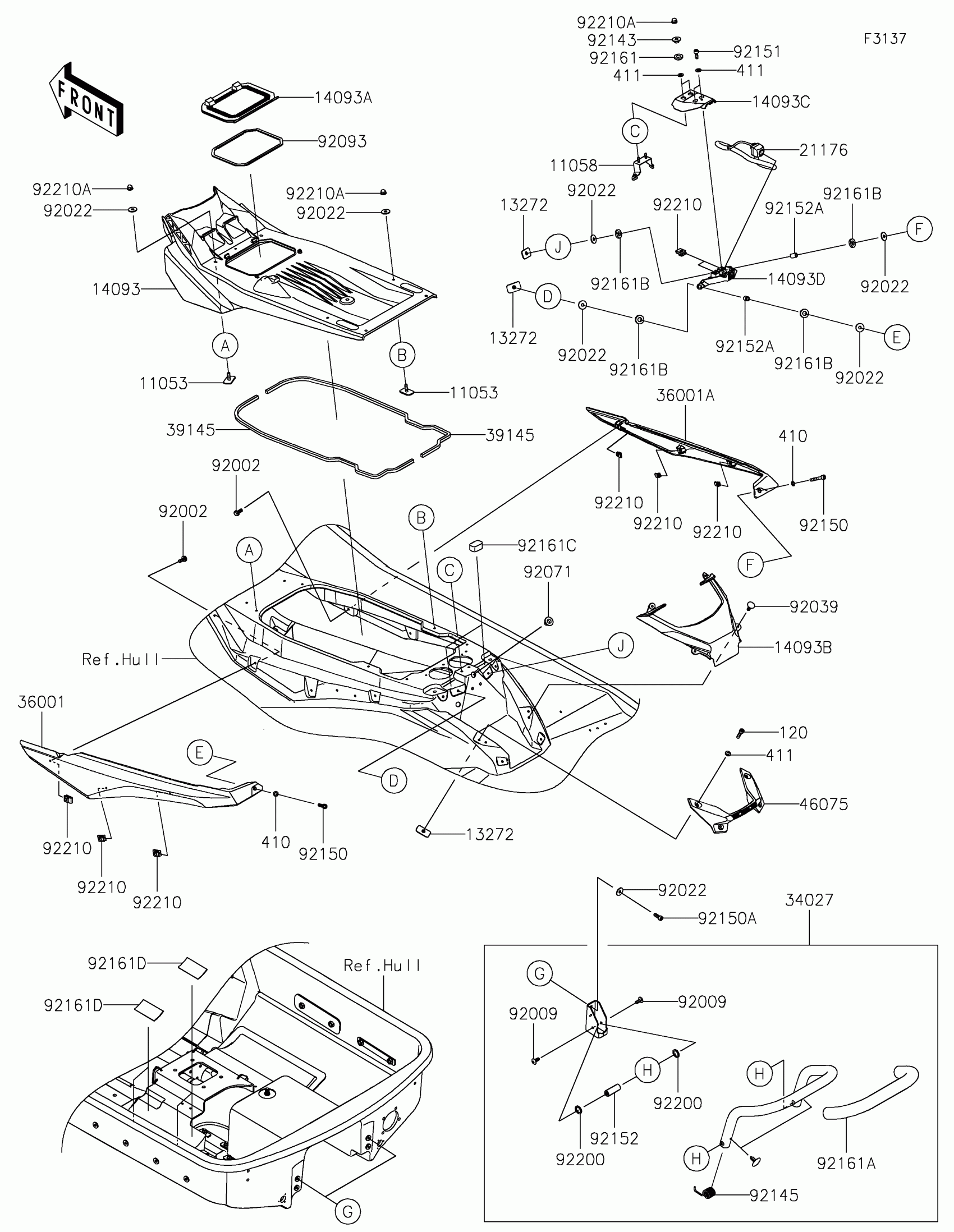

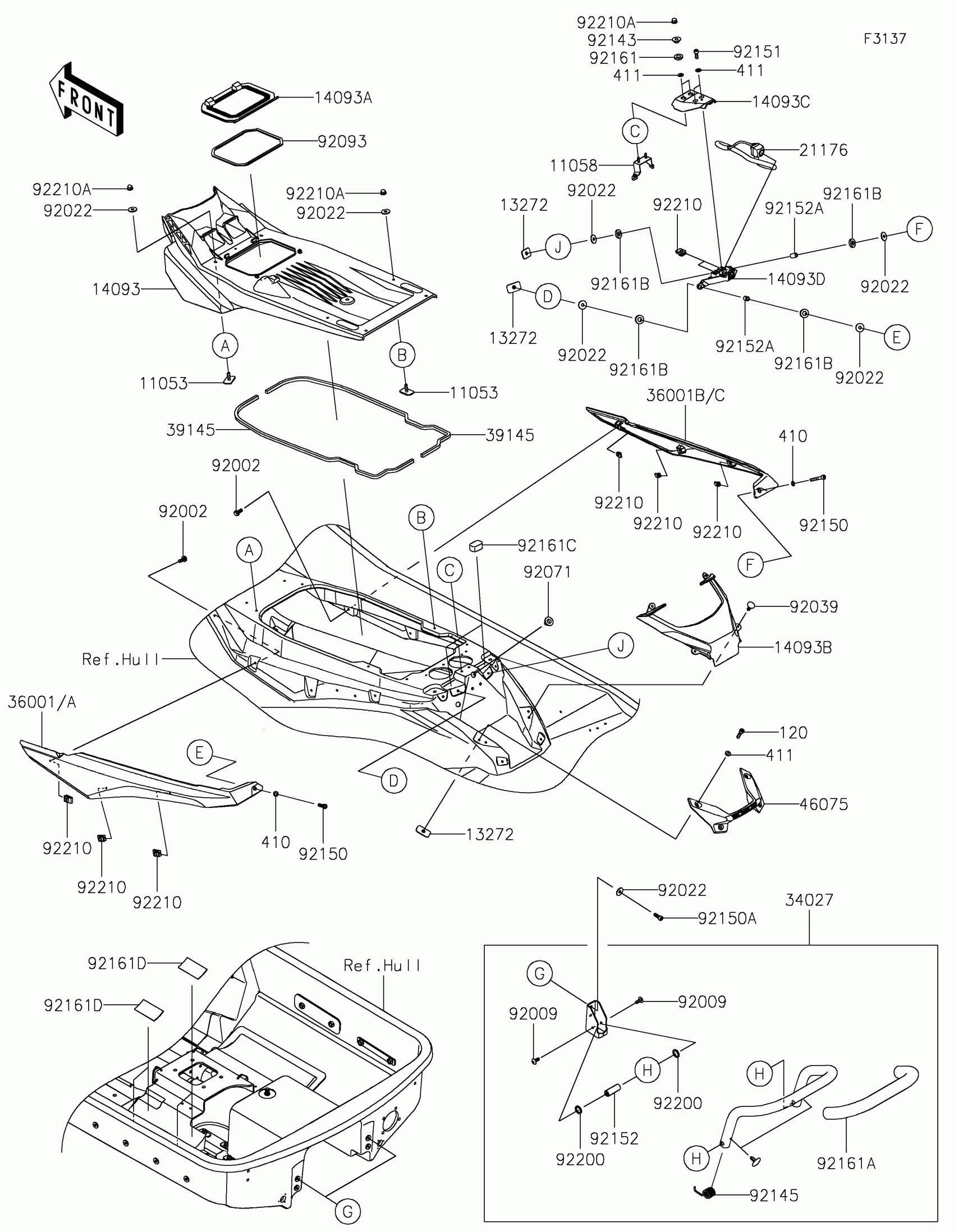

Kawasaki JET SKI® ULTRA® 160LX Hull Rear Fittings Diagram

#

Description
Price

11053

BRACKET

11053-3776

$9.17

11058

BRACKET

11058-0463

$59.42

13272

PLATE

13272-3861

$2.80

14093

COVER,SEAT UNDER

14093-1171

$119.82

14093A

COVER,MAINTENANCE NOTE

14093-1172

$11.78

14093B

COVER,RR STORAGE

14093-1173

$17.27

14093C

COVER,RR CAMERA,UPP

14093-1174

$5.76

14093D

COVER,RR CAMERA,LWR

14093-1175

$5.51

21176

SENSOR,RR CAMERA

21176-1139

$123.62

34027

STEP-ASSY

34027-0027

$373.07

36001

COVER-SIDE,RR,LH,M.S.GOLD

36001-0714-66U

$43.40

36001A

COVER-SIDE,RR,RH,M.S.GOLD

36001-0715-66U

$43.40

39145

TRIM-SEAL,10X10X1085

39145-0738

$14.30

46075

GRIP,RR DECK

46075-0657

$46.91

92002

BOLT,6X16

92002-3728

$3.24

92009

SCREW,6X15

92009-3830

$2.66

92022

WASHER,6.5X20X1.5

92022-3710

Unavailable

92039

RIVET

92039-3788

$2.34

92071

GROMMET

92071-3826

$3.19

92093

SEAL

92093-0761

$9.03

92143

COLLAR

92143-3749

$4.61

92145

SPRING

92145-2249

$9.56

92150

BOLT,SOCKET,6X35

92150-1887

$3.92

92150A

BOLT,SOCKET,6X18

92150-3775

$3.57

92151

BOLT,SOCKET,6X16

92151-3770

$1.97

92152

COLLAR

92152-1593

$30.99

92152A

COLLAR

92152-2900

$10.29

92161

DAMPER

92161-0117

$2.36

92161A

DAMPER

92161-1427

$16.56

92161B

DAMPER,10X20X4

92161-2458

$4.86

92161C

DAMPER,30X45X20

92161-2467

$5.88

92161D

DAMPER

92161-3728

$4.92

92200

WASHER,14.5X20X1.5

92200-3793

$1.85

92210

NUT,6MM

92210-3768

$4.39

92210A

NUT,CAP,6MM

92210-3785

$4.27

120

BOLT-SOCKET,6X25

120R0625

$3.75

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.68

411

WASHER-PLAIN,6MM

411S0600

$1.49
