2004 Kawasaki Ultra 130 Oil Tank Diagram

← All diagrams

Find the part on the Oil Tank diagram for your 2004 Kawasaki Ultra 130, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

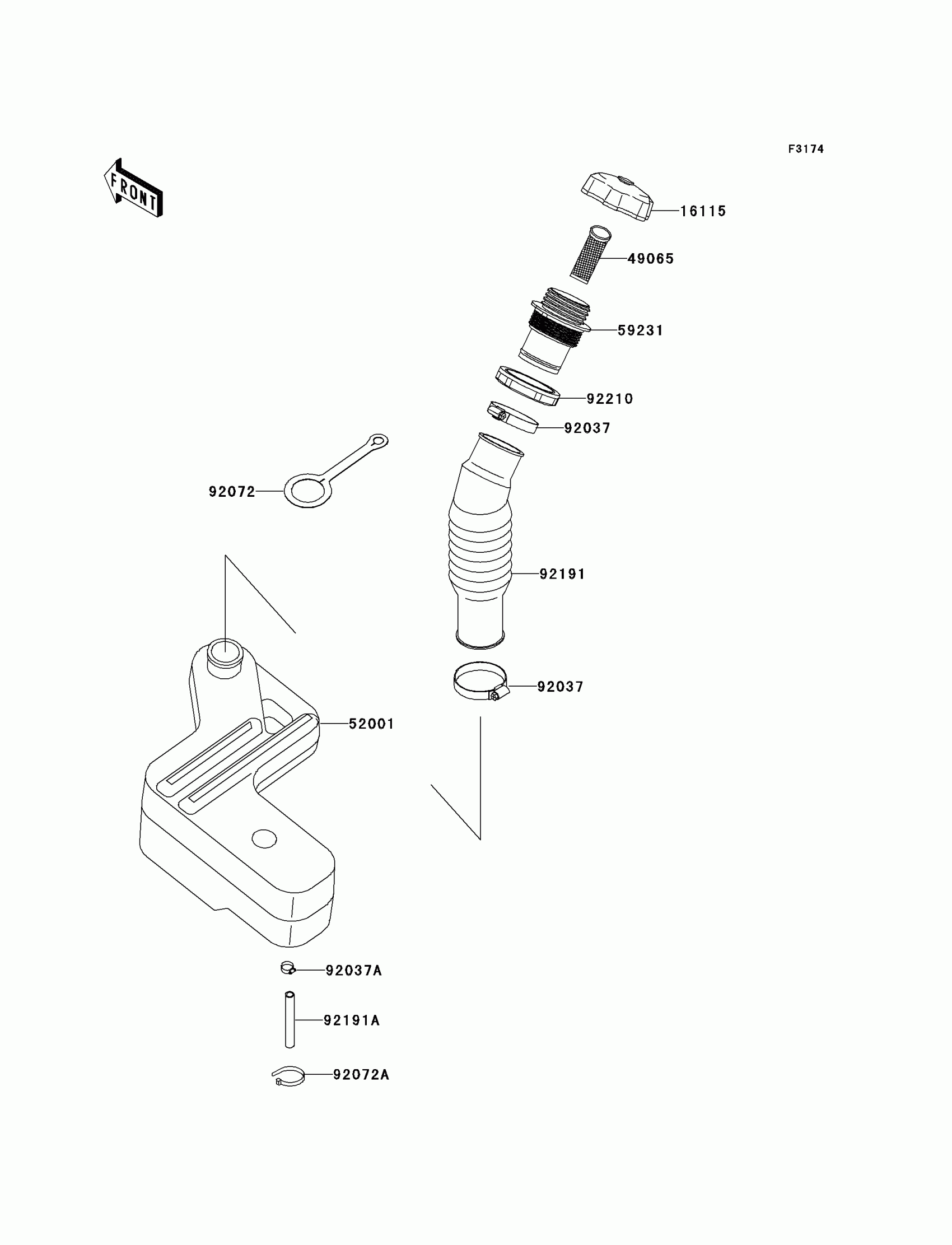

2004 Kawasaki Ultra 130 Oil Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16115

CAP-OIL FILLER

16115-3720

1
Out of stock

49065

FILTER-OIL

49065-3703

1
Out of stock

52001

TANK-OIL

52001-3734

1
Out of stock

59231

FILLER

59231-3724

1
Out of stock

92037

CLAMP

92037-3009

1
Out of stock

92037A

CLAMP

92037-3726

1
Out of stock

92072

BAND

92072-3839

1
Out of stock

92072A

BAND,L=99

92072-3871

1
Out of stock

92191

TUBE

92191-3735

1
Out of stock

92191A

TUBE,OIL

92191-3938

1
Out of stock

92210

NUT,FILLER

92210-3752

1
Out of stock
