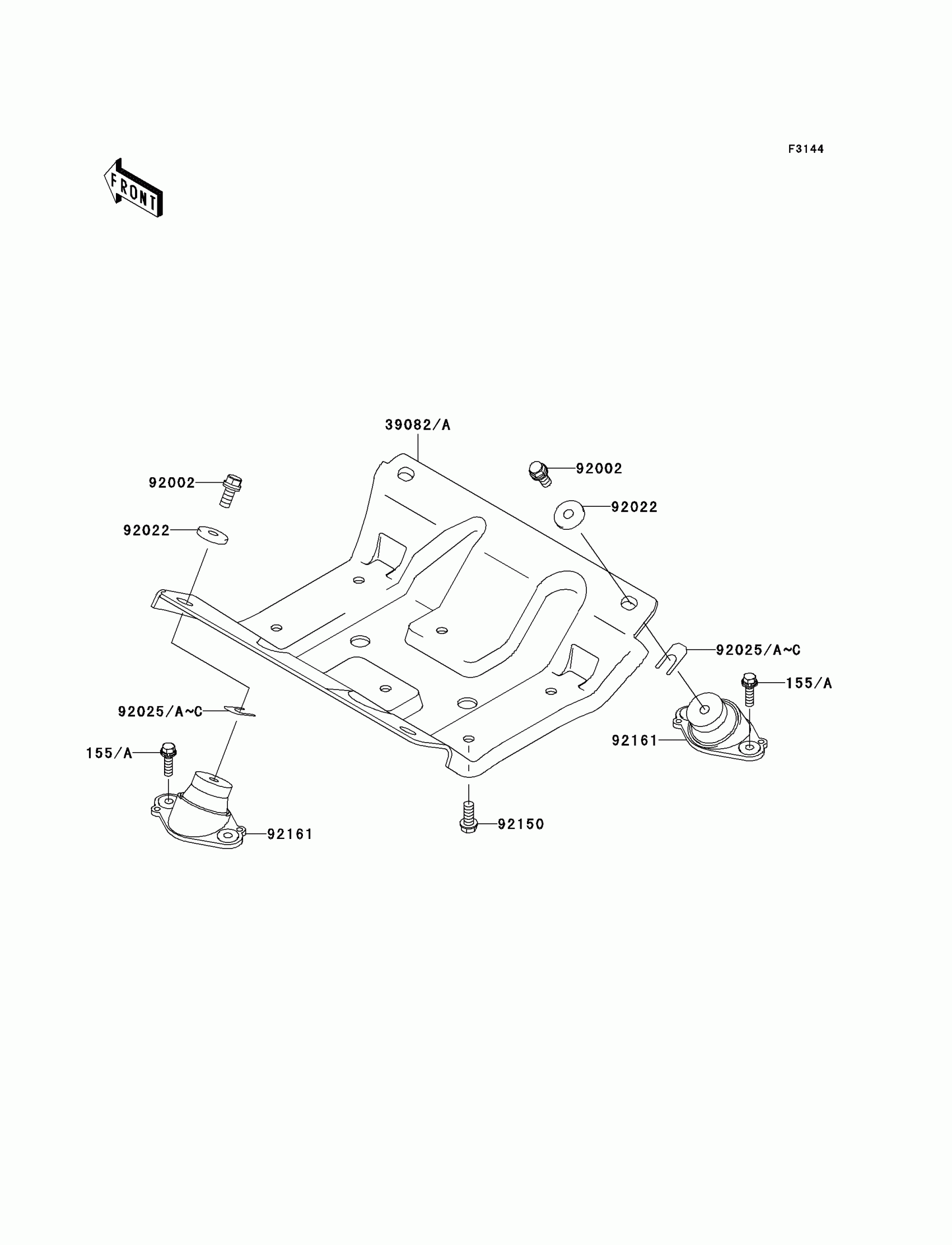

Kawasaki Ultra 130 Engine Mount Diagram

#

Description
Price

155A

BOLT-WSP-SMALL,8X30

155R0830

$4.93

39082A

MOUNT-ENGINE

39082-3722

$166.15

92002

BOLT,10X25

92002-3770

$8.41

92022

WASHER,32X10.5X4

92022-3023

$6.74

92025

SHIM,T=0.3MM

92025-3705

Unavailable

92025A

SHIM,T=0.5MM

92025-3706

Unavailable

92025B

SHIM,T=1.0MM

92025-3707

Unavailable

92025C

SHIM,T=1.5MM

92025-3708

Unavailable

92150

BOLT,10X25

92150-3818

$5.25

92161

DAMPER

92161-3731

$141.50
