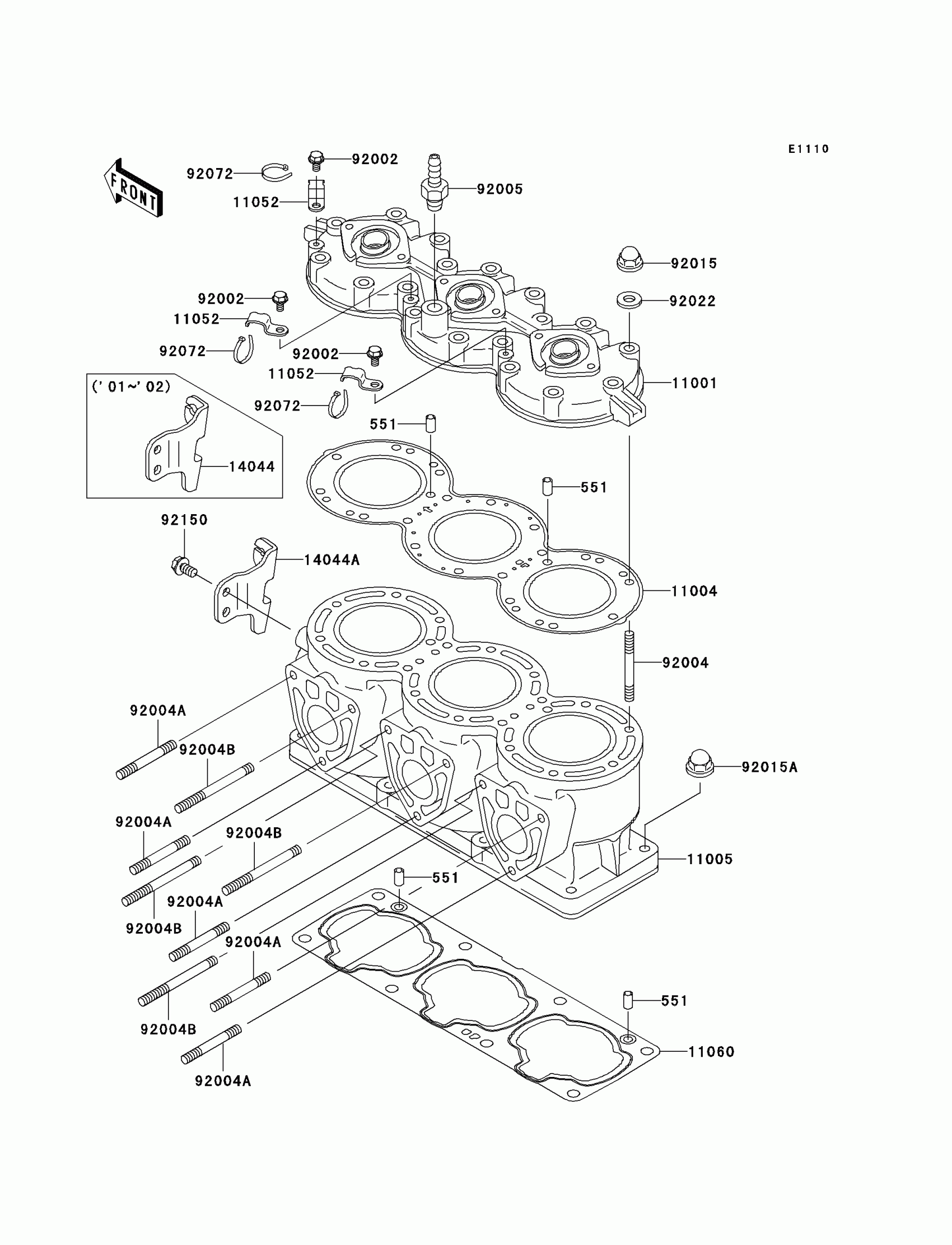

Kawasaki Ultra 130 Cylinder Head/Cylinder Diagram

Description

Price

551

PIN-DOWEL

551R0812

$6.04

11001

HEAD-CYLINDER

11001-3740

$717.27

11004

GASKET-HEAD

11004-3715

$71.46

11005

CYLINDER-ENGINE

11005-3752

$1,688.03

11052

BRACKET

11052-3758

$7.81

11060

GASKET,CYLINDER BASE

11060-3817

$69.00

14044A

HOLDER-CABLE,CYLINDER

14044-3743

$43.74

92002

BOLT,6X12

92002-3763

$3.57

92004

STUD,8X56

92004-3733

$8.36

92004A

STUD,8X40,L=56

92004-3736

$3.79

92004B

STUD,8X75

92004-3744

$8.81

92005

FITTING

92005-3714

$14.12

92015

NUT,CAP,8MM

92015-1371

$3.81

92015A

NUT,10MM

92015-1649

$3.79

92022

WASHER,8.2X18X1.5

92022-1964

$3.19

92072

BAND,L=201

92072-3778

$1.61

92150

BOLT,8X16

92150-3722

$7.49
