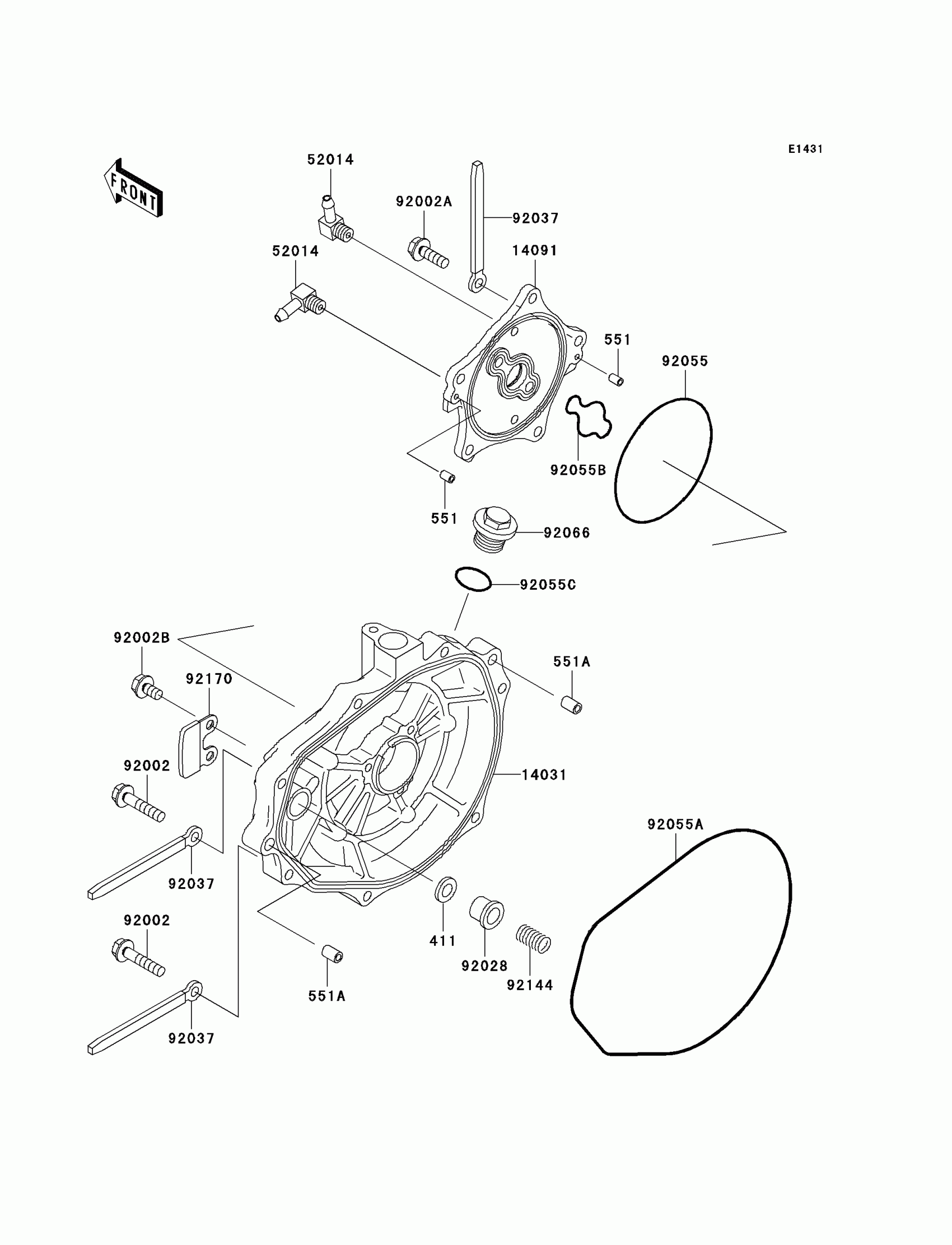

Kawasaki Ultra 130 Engine Cover(s) Diagram

Description

Price

411

WASHER-PLAIN,5MM

411S0500

$0.78

551

PIN-DOWEL

551R0408

$4.09

551A

PIN-DOWEL

551R0812

$6.04

14031

COVER-GENERATOR

14031-3727

Unavailable

14091

COVER

14091-3711

Unavailable

52014

ELBOW

52014-3721

$34.95

92002

BOLT,6X30

92002-3726

$3.57

92002A

BOLT,6X20

92002-3755

$3.57

92002B

BOLT,6X12

92002-3763

$3.57

92028

BUSHING

92028-3718

$7.18

92037

CLAMP,L=100

92037-3736

$4.85

92055

RING-O,92X1.9

92055-1284

$5.63

92055A

RING-O,GENERATOR COVER

92055-3712

$27.13

92055B

RING-O

92055-3739

Unavailable

92055C

RING-O

92055-515

$1.98

92066

PLUG

92066-3739

Unavailable

92144

SPRING

92144-3728

$4.10

92170

CLAMP

92170-3746

$9.56
