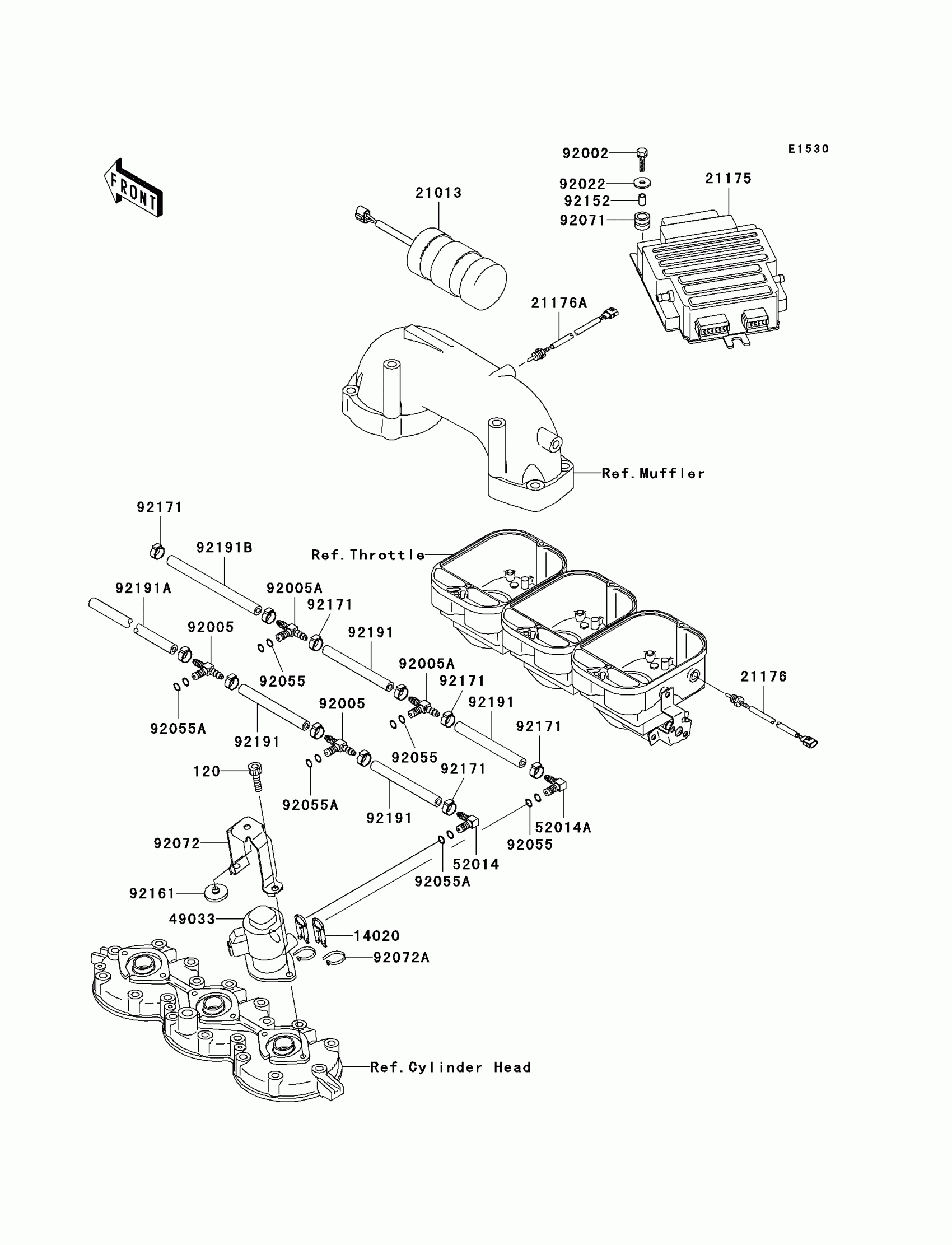

Kawasaki Ultra 130 Fuel Injection Diagram

#

Description
Price

120

BOLT-SOCKET

120Z0820

Unavailable

14020

RETAINER

14020-3705

$5.22

21013

CONDENSER

21013-3701

$222.47

21175

CONTROL UNIT-ELECTRONIC

21175-3719

$1,889.13

21176

SENSOR,AIR TEMPERATURE

21176-3742

$149.87

21176A

SENSOR,WATER TEMPERATURE

21176-3744

Unavailable

49033

NOZZLE-INJECTION

49033-3704

$916.33

52014

ELBOW,INLET

52014-3715

Unavailable

52014A

ELBOW,OUTLET

52014-3716

Unavailable

92002

BOLT,6X25

92002-3775

$5.12

92005

FITTING,INLET

92005-3733

$7.42

92005A

FITTING,OUTLET

92005-3734

Unavailable

92022

WASHER,6.2X20X2

92022-3714

$3.19

92055

RING-O,OUTLET

92055-3758

$3.53

92055A

RING-O,INLET

92055-3759

Unavailable

92071

GROMMET

92071-3834

$10.20

92072

BAND,INJECTION

92072-3854

$11.19

92072A

BAND,L=152

92072-3874

$3.75

92152

COLLAR,6.2X8X12

92152-3716

$4.95

92161

DAMPER

92161-3718

$7.73

92171

CLAMP

92171-3706

$4.95

92191

TUBE,6X12X110

92191-3870

$19.54

92191A

TUBE,6X12X235

92191-3894

$21.86

92191B

TUBE,6X12X180

92191-3921

$34.97
