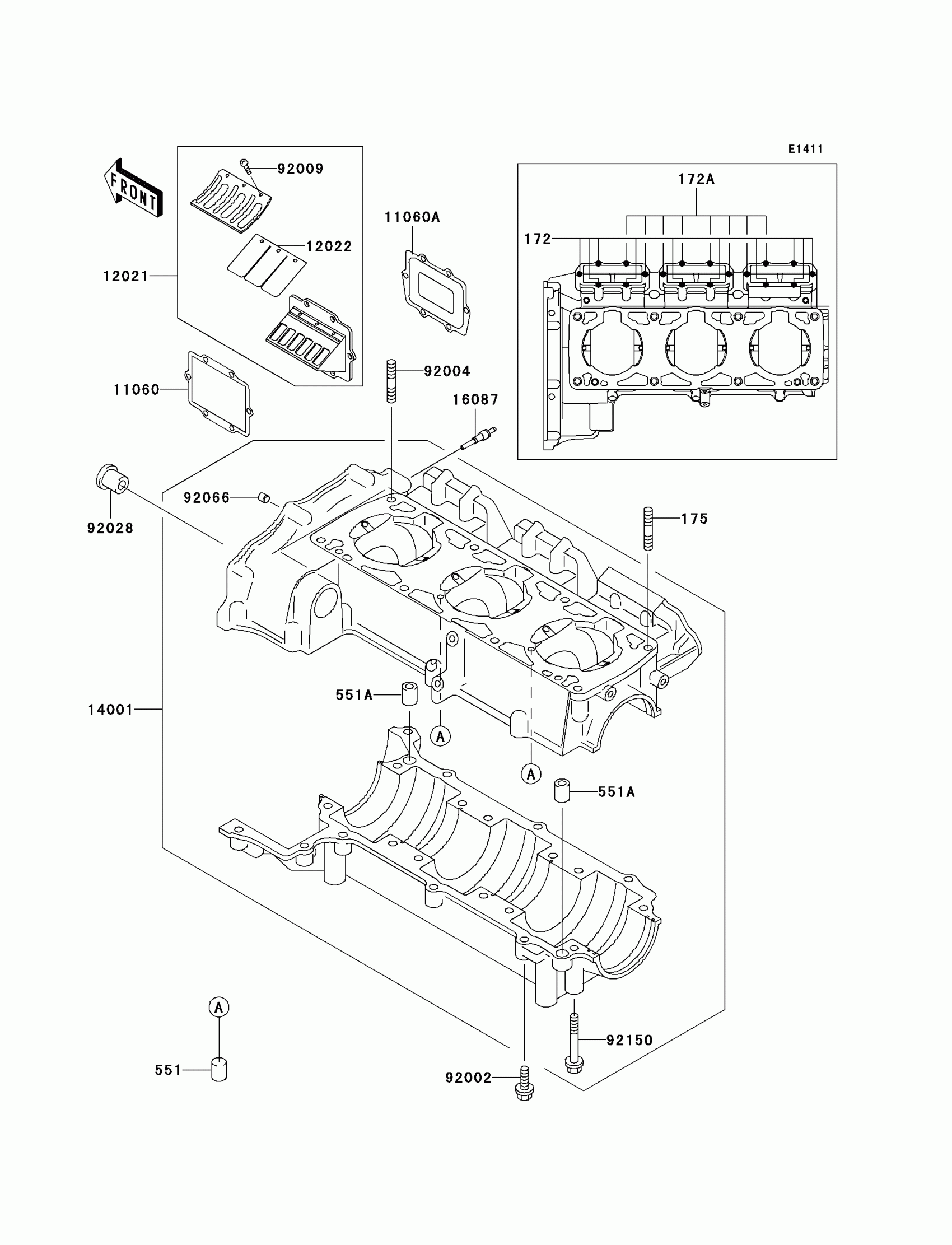

Kawasaki Ultra 130 Crankcase Diagram

Description

Price

172

BOLT-STUD,6X20

172R0620

$6.25

172A

BOLT-STUD,6X30

172R0630

Unavailable

175

BOLT-STUD-FINE,10X35

175R1035

$8.41

551

PIN-DOWEL

551R0612

$3.57

551A

PIN-DOWEL

551R1012

$5.71

11060

GASKET,REED VALVE

11060-3717

$14.40

11060A

GASKET,REED VALVE

11060-3757

$14.40

12021

VALVE-ASSY-REED

12021-3713

$174.86

12022

VALVE-REED

12022-3711

Unavailable

14001

SET-CRANKCASE

14001-5385

Unavailable

16087

VALVE-CHECK

16087-3713

$39.75

92002

BOLT,6X30

92002-3726

$3.57

92004

STUD,10X35

92004-3752

$7.41

92009

SCREW,REED VALVE

92009-1014

$2.05

92028

BUSHING

92028-3718

$7.18

92066

PLUG

92066-1213

$4.22

92150

BOLT,8X65

92150-3708

$12.14
