1976 Yamaha TZ350 (TZ350C) Tachometer Gear Diagram

← All diagrams

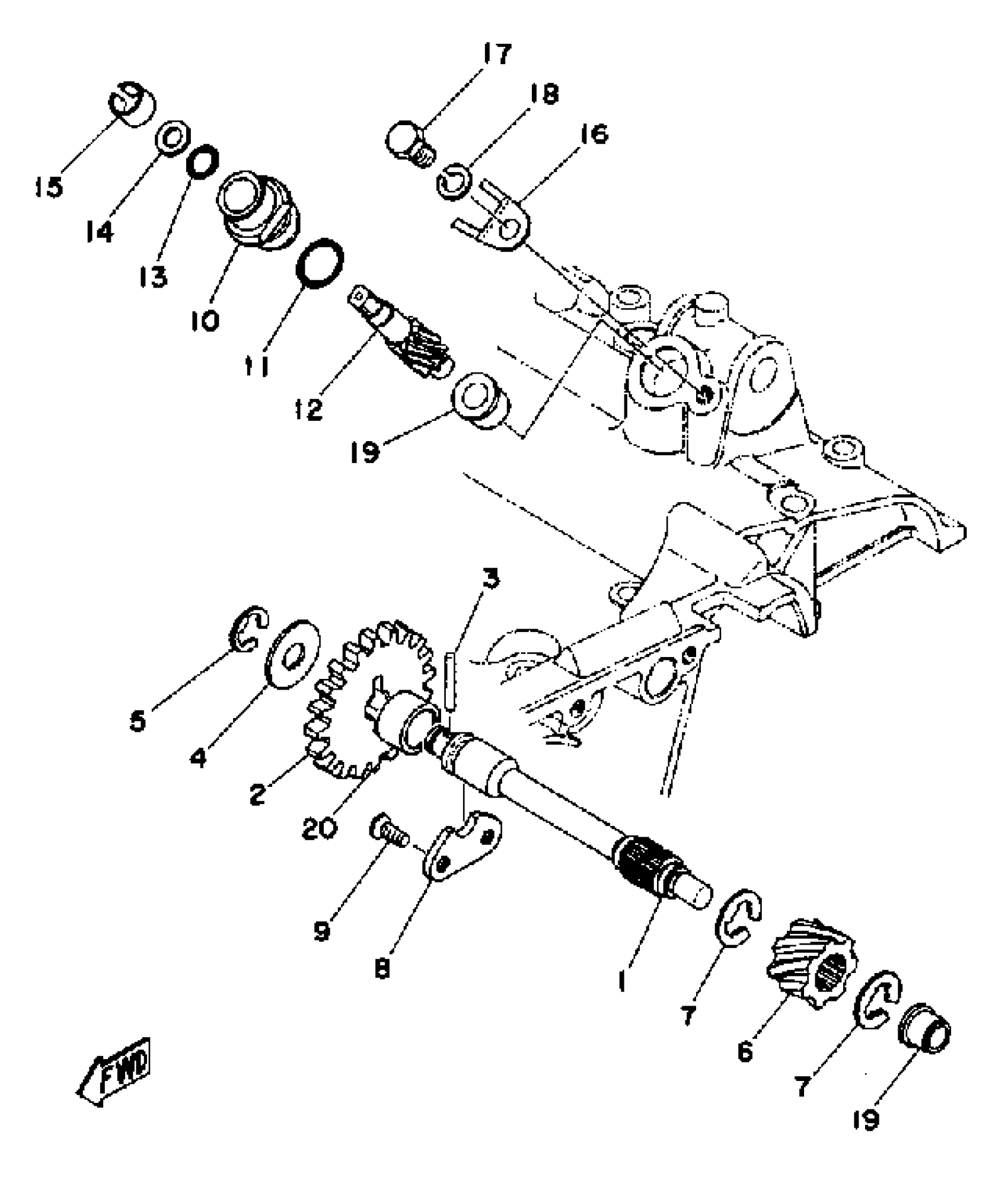

Find the part on the Tachometer Gear diagram for your 1976 Yamaha TZ350 (TZ350C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha TZ350 (TZ350C) Tachometer Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, DRIVE GEAR

(278-17861-00-00)

1
Out of stock

2

GEAR, PRIMARY (20T)

278-17851-00-00

1
Out of stock

3

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

4

WASHER, PLATE(52H)

90201-105J4-00

1

$6.88

In stock

5

CIRCLIP(2R6)

99001-08600-00

1
Out of stock

6

GEAR, DRIVE

(278-17831-00-00)

1
Out of stock

7

CIRCLIP

99006-10600-00

1

$6.91

In stock

8

STOPPER

(278-17812-00-00)

1
Out of stock

9

SCREW, FLAT

98707-05012-00

1
Out of stock

10

HOUSING ASSEMBLY, TACH (214-17811-01)

353-17810-00-00

1
Out of stock

11

O-RING (137)

93210-13016-00

1

$5.78

In stock

12

GEAR, DRIVEN

214-17841-01-00

1
Out of stock

13

O-RING (214)

93210-07100-00

1

$5.89

In stock

14

SHIM (7.5-10.8-0.4)

214-17847-00-00

1
Out of stock

15

BUSH, FORMED (214-17815-00) 001

90383-10005-00

1
Out of stock

16

STOPPER

5U7-17812-00-00

1
Out of stock

17

BOLT(3JP)

97017-06010-00

—

$2.62

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

BUSH (214-17843-00)

90381-08002-00

—

$10.54

In stock

20

BUSH, SOLID

(90380-14040-00)

1
Out of stock
