1976 Yamaha TZ350 (TZ350C) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1976 Yamaha TZ350 (TZ350C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

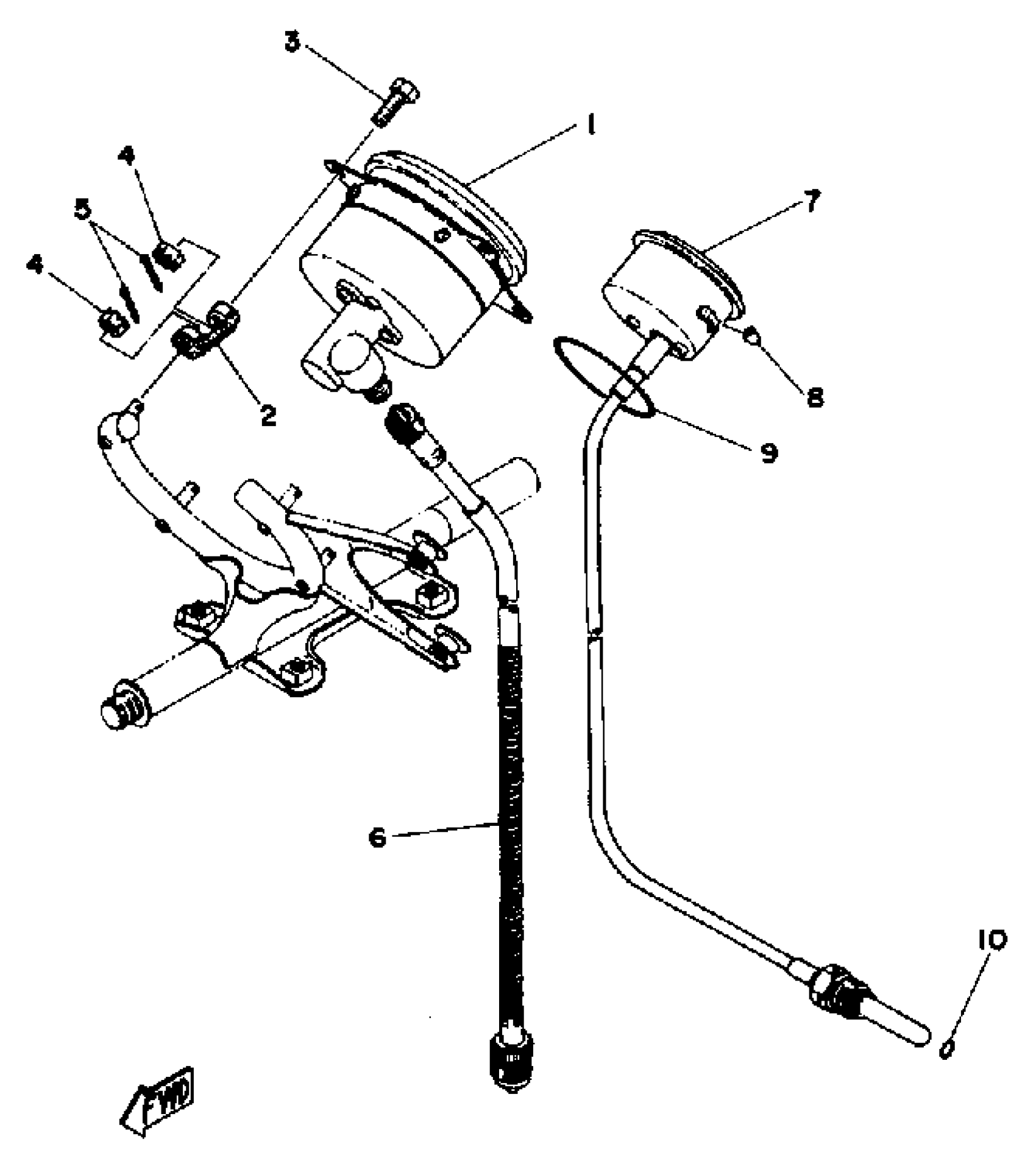

1976 Yamaha TZ350 (TZ350C) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TACHOMETER ASSEMBLY

328-83540-00-00

1
Out of stock

2

DAMPER, BRACKET

143-83543-00-00

1
Out of stock

3

BOLT, WITH HOLE

(90102-05012-00)

1
Out of stock

4

NUT, SLTED

95307-05900-00

1
Out of stock

5

. PIN, COTTER

91401-10015-00

1
Out of stock

6

TACHOMETER CABLE

371-83560-01-00

1
Out of stock

7

WATER TEMP METER

(409-83590-01-00)

1
Out of stock

8

CLIP

90468-10001-00

1
Out of stock

9

O-RING

93210-56077-00

1
Out of stock

10

O-RING (260)

93210-10118-00

1

$5.86

In stock
