1976 Yamaha TZ350 (TZ350C) Electrical Diagram

← All diagrams

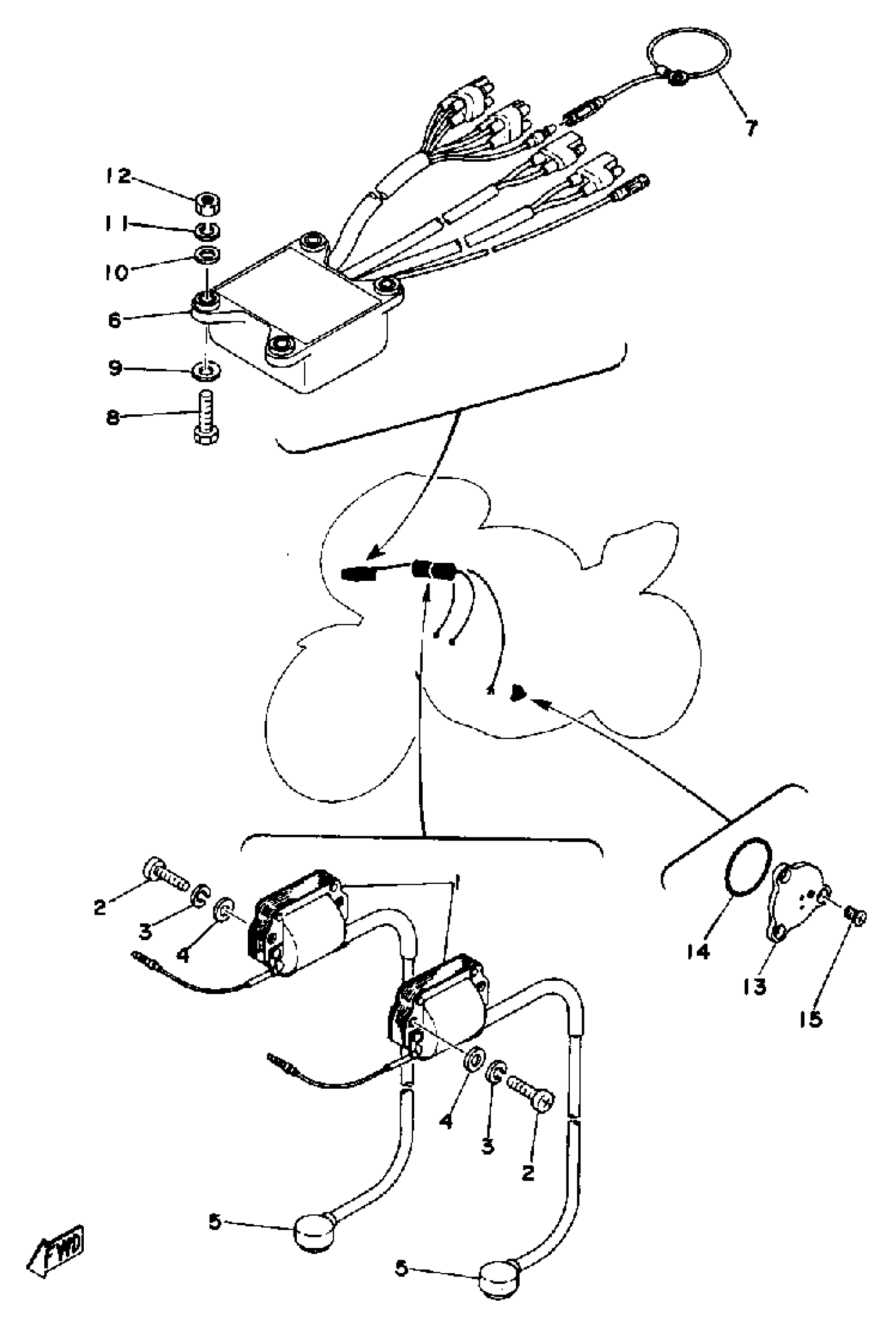

Find the part on the Electrical diagram for your 1976 Yamaha TZ350 (TZ350C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha TZ350 (TZ350C) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSEMBLY

(400-82310-30-00)

1
Out of stock

2

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

5

PLUG CAP ASSEMBLY

294-82370-00-00

1
Out of stock

5

PLUG CAP ASSY

7KA-82370-00-00

1

$62.25

In stock

6

CDI UNIT ASSEMBLY

328-85540-10-00

1
Out of stock

7

WIRE, LEAD

558-82116-00-00

—
Out of stock

8

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

9

WASHER, PLATE

90201-06M08-00

1
Out of stock

10

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

13

NEUTRAL SWITCH ASSY

1L9-82540-00-00

1
Out of stock

14

O-RING (371)

93210-29196-00

1

$6.45

In stock

15

SCREW, FLAT

98707-05012-00

—
Out of stock
