1976 Yamaha TZ350 (TZ350C) Handle - Wire Diagram

← All diagrams

Find the part on the Handle - Wire diagram for your 1976 Yamaha TZ350 (TZ350C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

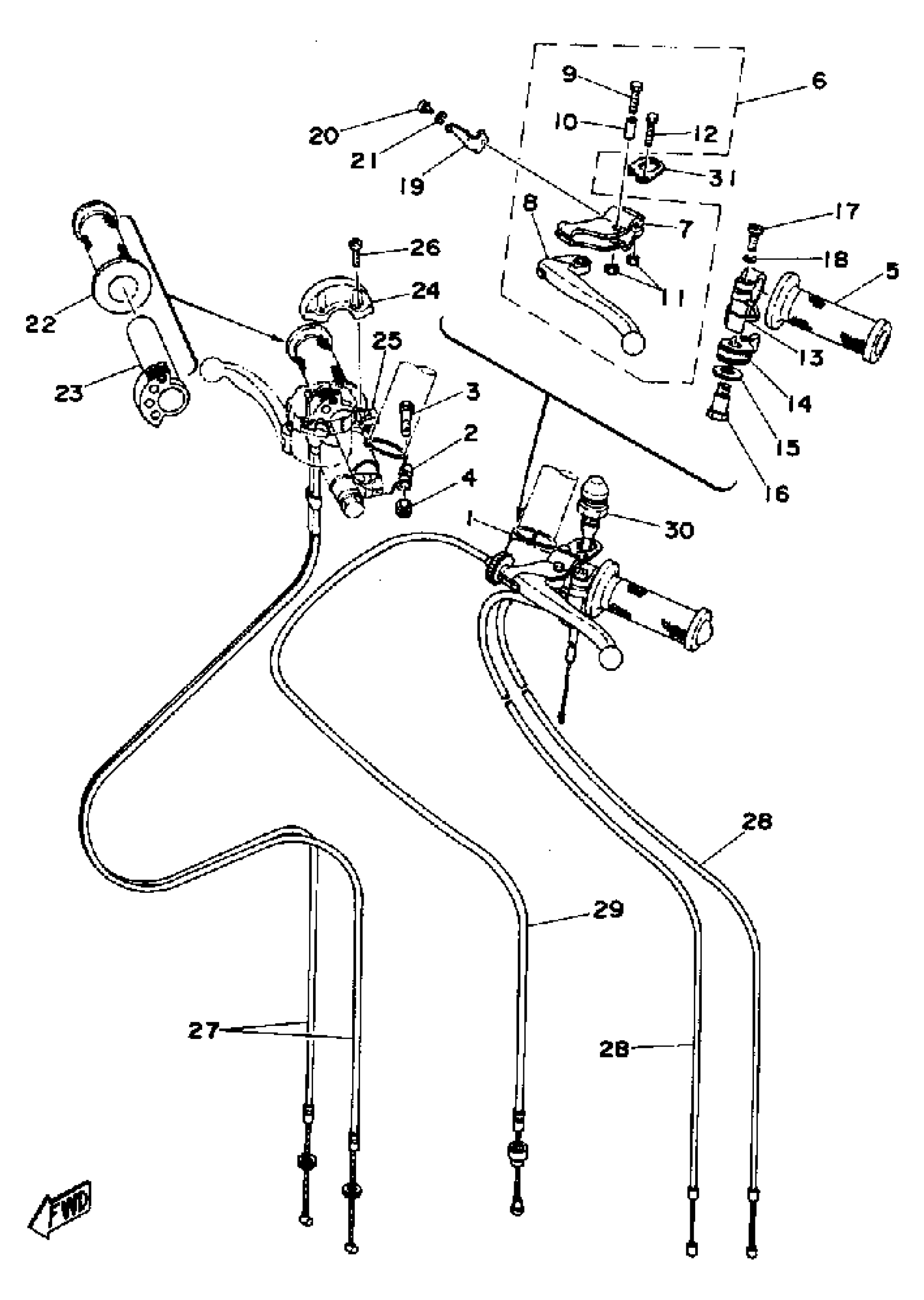

1976 Yamaha TZ350 (TZ350C) Handle - Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR LH

409-26121-01-00

1
Out of stock

2

HANDLEBAR RH

409-26122-01-00

1
Out of stock

3

BOLT

97013-08035-00

1

$4.80

In stock

4

NUT, U

95617-08100-00

1

$6.78

In stock

5

GRIP (L.H)

47X-26241-00-00

—
Out of stock

6

LEVER HOLDER ASY 1

240-82810-00-00

1
Out of stock

7

HOLDER, LEVER 1

(240-82811-00-00)

1
Out of stock

8

LEVER L

150-83912-00-38

1
Out of stock

9

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

10

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

11

NUT(650)

95380-06700-00

1

$6.17

In stock

12

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

13

HOLDER, STARTER LEVER

240-83946-00-00

1
Out of stock

14

LEVER, STARTER

240-83941-00-00

1
Out of stock

15

WASHER PLATE 122222440000

90201-12175-00

—
Out of stock

16

BOLT

90109-08398-00

1
Out of stock

17

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

SPRING, LOCK

5F6-26368-00-00

—
Out of stock

20

GASKET, EXHAUST

98507-05008-00

—

$2.69

In stock

20

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

21

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

22

GRIP (R.H)

47X-26242-00-00

—
Out of stock

23

TUBE, THRTL GUIDE

240-26243-01-00

1
Out of stock

24

CAP, GRIP UPPER

240-26281-00-00

1
Out of stock

25

CAP, GRIP LOWER

240-26282-00-00

1
Out of stock

26

SCREW, PAN HEAD

98517-05020-00

—

$1.35

In stock

26

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

27

CABLE, THROTTLE 1 (650MM)

240-26311-00-00

1
Out of stock

28

CABLE, STARTER 1 (800MM)

1RK-26331-00-00

1
Out of stock

29

CABLE, CLUTCH

(1H3-26335-02-00)

1
Out of stock

30

SWITCH, HANDLE 1

(328-83976-00-00)

1
Out of stock

31

HOLDER, HANDLE SWCH

(294-83974-00-00)

1
Out of stock
