1976 Yamaha TZ350 (TZ350C) Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 1976 Yamaha TZ350 (TZ350C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

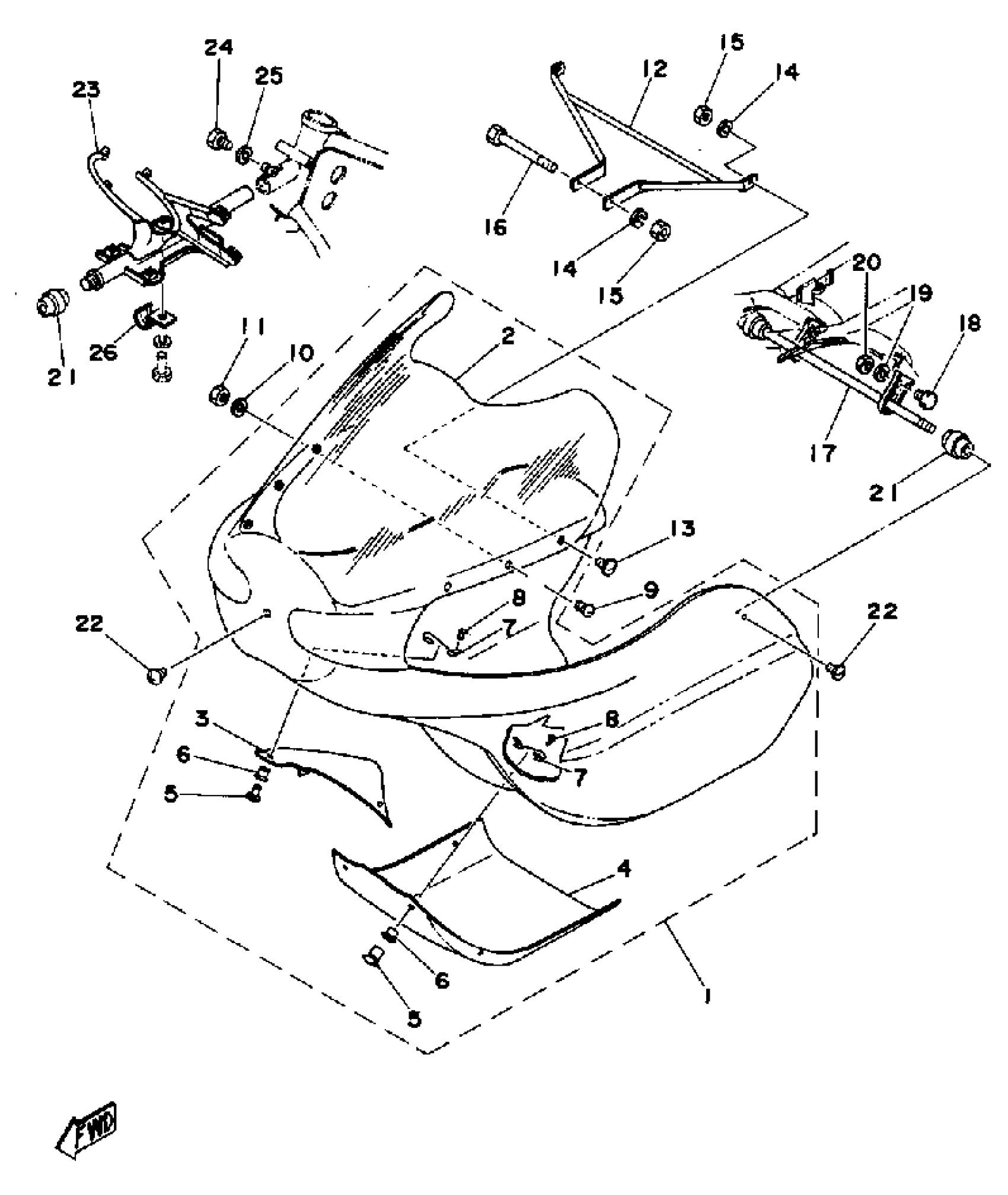

1976 Yamaha TZ350 (TZ350C) Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TZ250C RR FR W/WDS

(ACC-11110-75-05)

1
Out of stock

2

TZ750E WNDSHD ONLY

(ACC-11110-77-04)

1
Out of stock

5

. HEAD

240-28386-00-00

1
Out of stock

6

RIVET

240-28389-00-00

1
Out of stock

7

SPRING

(240-28388-00-00)

1
Out of stock

8

RIVET, ROUND HEAD

(90260-02002-00)

1
Out of stock

9

SCREW, ROUND HEAD

90140-04012-00

1
Out of stock

10

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

11

NUT(6L4)

95380-04700-00

—

$5.62

In stock

12

STAY 2

(240-28357-00-33)

1
Out of stock

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

NUT, NYLON

95707-06300-00

1

$3.20

In stock

16

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

17

STAY 3

(240-28358-00-33)

1
Out of stock

18

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

20

NUT(6L2)

95333-08600-00

—

$3.20

In stock

21

DAMPER

240-28371-00-33

1
Out of stock

22

SCREW, ROUND HEAD(55K)

90150-06021-00

—

$6.46

In stock

23

STAY 1

(383-28356-00-00)

1
Out of stock

24

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

25

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

26

CLAMP

90462-10007-00

1
Out of stock
