1976 Yamaha TZ350 (TZ350C) C - D - I - Magneto Diagram

← All diagrams

Find the part on the C - D - I - Magneto diagram for your 1976 Yamaha TZ350 (TZ350C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

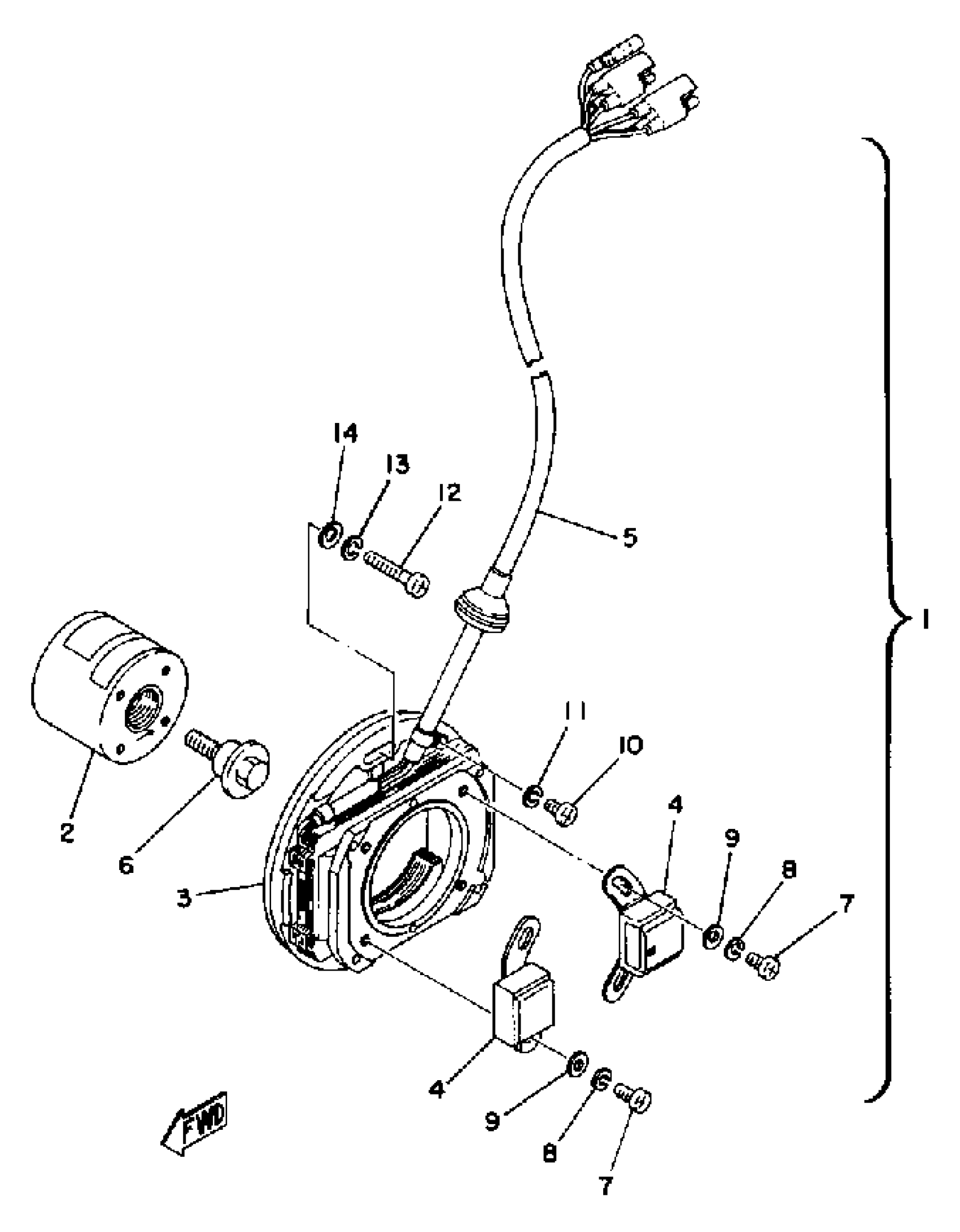

1976 Yamaha TZ350 (TZ350C) C - D - I - Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI MAGNETO ASSEMBLY

(328-85500-11-00)

1
Out of stock

2

ROTOR ASSEMBLY

(328-85550-11-00)

1
Out of stock

3

STATOR ASSEMBLY

(328-85510-11-00)

1
Out of stock

4

. COIL PULSER

364-85543-10-00

1
Out of stock

5

LEAD WIRE ASSEMBLY

(328-85515-10-00)

1
Out of stock

6

. ROTOR

328-85559-10-00

1
Out of stock

7

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

8

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

9

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

10

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

12

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

15

COIL, CHARGE 1

431-85566-10-00

1
Out of stock

16

COIL, CHARGE 2

431-85567-10-00

1
Out of stock
