1973 Yamaha TX750 (TX750) Starting Motor Unit Diagram

← All diagrams

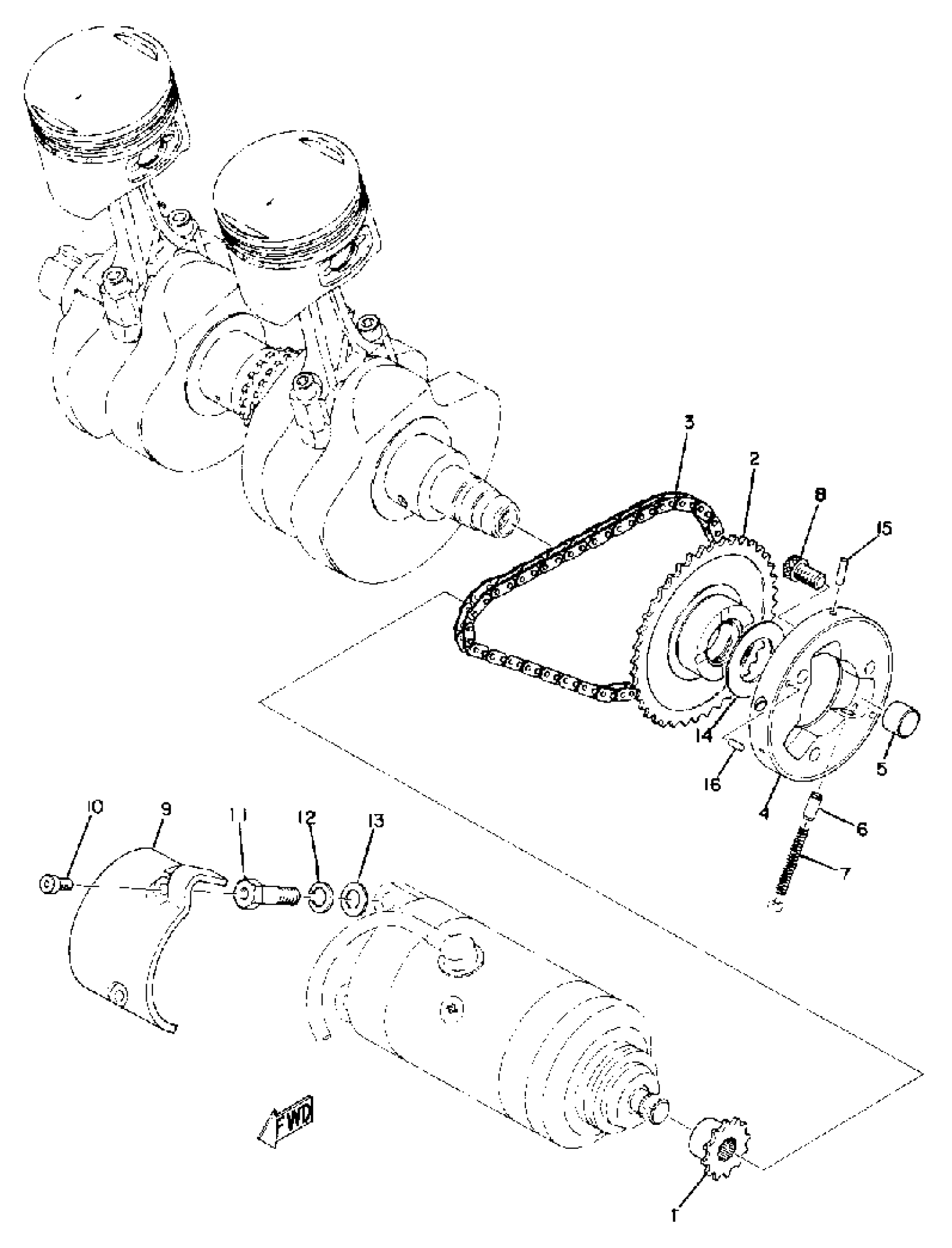

Find the part on the Starting Motor Unit diagram for your 1973 Yamaha TX750 (TX750), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX750 (TX750) Starting Motor Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPROCKET, STARTER 1

341-15518-01-00

1
Out of stock

2

SPROCKET, STARTER 2

341-15519-05-00

1
Out of stock

3

CHAIN

(94563-16052-00)

1
Out of stock

4

STR CLUTCH OTR ASY

341-15580-07-00

1
Out of stock

5

PIN,DOWEL(341)

93615-12088-00

1

$5.63

In stock

6

CAP, STARTER CLUTCH

1J7-15583-01-00

1

$16.60

In stock

7

. SPRING, COMPRESSION (341-15584-02)

90501-03298-00

1
Out of stock

8

BOLT, SOCKET

91317-08016-00

1

$6.17

In stock

9

COVER, STRTG MOTOR

(341-15436-00-00)

1
Out of stock

10

BOLT,SOCKET

91317-06012-00

1

$6.17

In stock

11

BOLT

(90109-08394-00)

1
Out of stock

12

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

13

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

14

WASHER, PLATE(1FK)

90201-256K6-00

—

$3.49

In stock

15

PIN, DOWEL (341)

93603-09106-00

1

$1.41

In stock

16

PIN, DOWEL

93605-10090-00

—

$5.41

In stock
