1973 Yamaha TX750 (TX750) A - C - Generator Diagram

← All diagrams

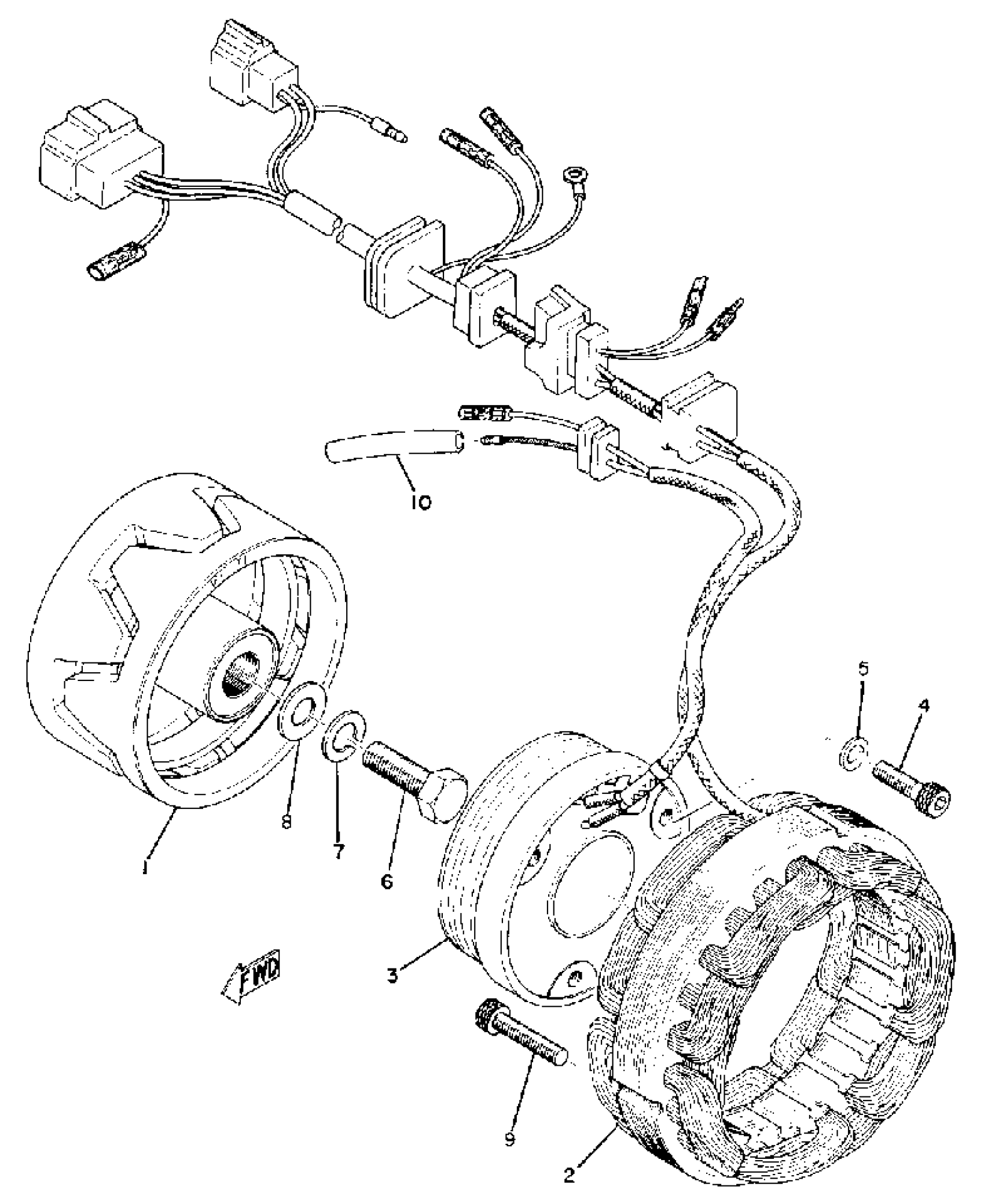

Find the part on the A - C - Generator diagram for your 1973 Yamaha TX750 (TX750), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX750 (TX750) A - C - Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AC GENERATOR ASSEMBLY

(341-81600-12-00)

1
Out of stock

1

ROTOR ASSEMBLY

(371-81650-10-00)

1
Out of stock

2

. STATOR ASSEMBLY

341-81610-12-00

1
Out of stock

3

FIELD COIL ASSEMBLY

(341-81660-12-00)

1
Out of stock

4

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

5

GASKET 256131670000

90430-14043-00

1

$6.46

In stock

6

BOLT

90101-10105-00

1
Out of stock

6

BOLT (341)

90101-10188-00

1

$7.72

In stock

7

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

8

WASHER, PLATE

(90201-10133-00)

1
Out of stock

8

WASHER, PLATE(52H)

90201-102J5-00

—

$13.94

In stock

9

1

$3.82

In stock

10

WASHER, PLATE

(90201-10133-00)

1
Out of stock
