1973 Yamaha TX750 (TX750) Handle - Wire Diagram

← All diagrams

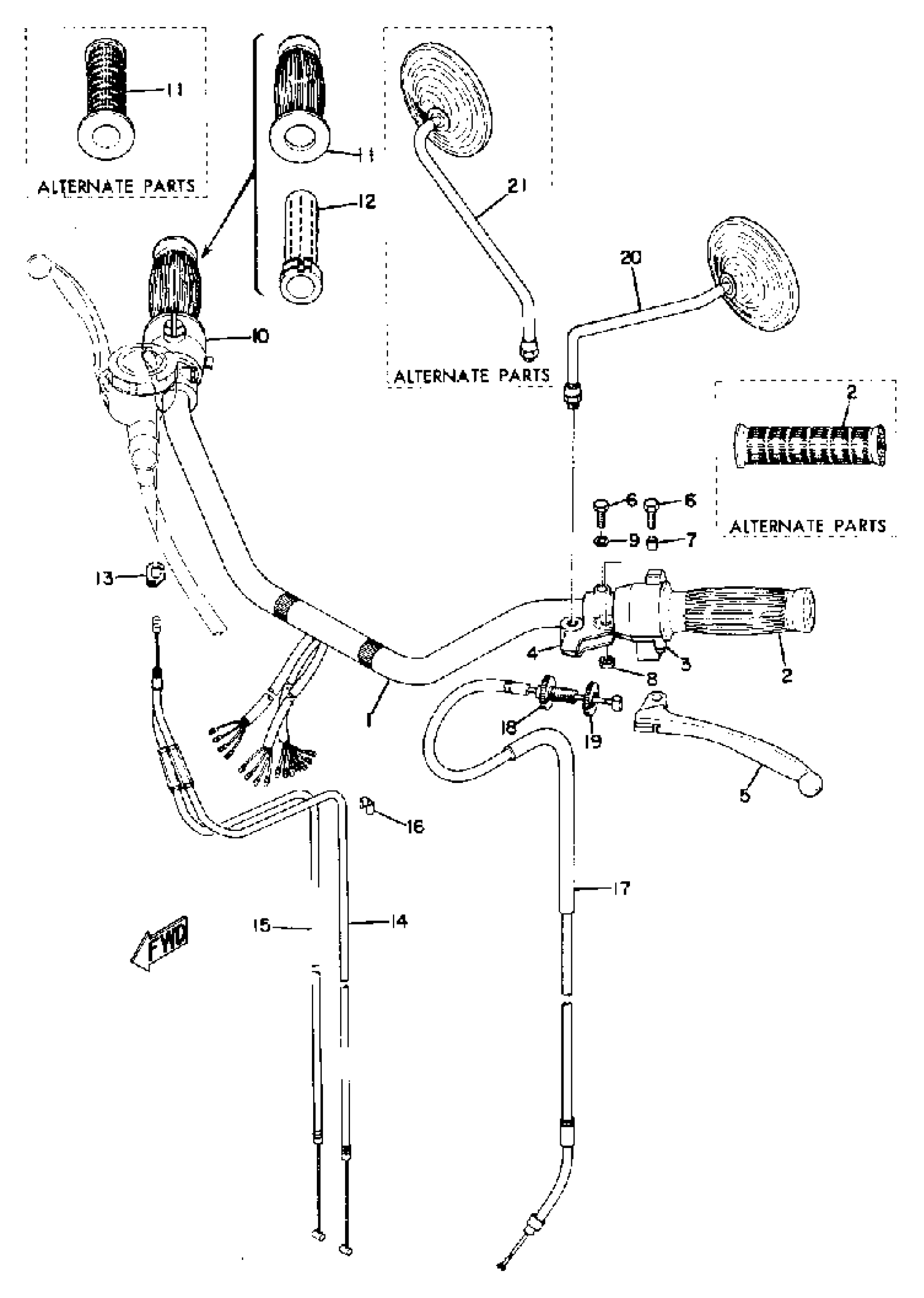

Find the part on the Handle - Wire diagram for your 1973 Yamaha TX750 (TX750), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX750 (TX750) Handle - Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

(341-26111-00-00)

1
Out of stock

1

LEVER HOLDER ASSEMBLY 1

(341-82910-00-00)

1
Out of stock

2

GRIP LH

341-26241-00-00

1
Out of stock

2

GRIP LH

341-26241-00-00

1
Out of stock

3

SWITCH, HANDLE 3

341-83973-01-00

1
Out of stock

4

—

$24.57

In stock

5

. LEVER L

341-83912-00-00

1
Out of stock

6

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

7

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

8

NUT(650)

95380-06700-00

1

$6.17

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

SWITCH, HANDLE 3 (341-83963-01)

341-83963-02-00

1
Out of stock

11

GRIP RH

(306-26242-10-00)

1
Out of stock

11

GRIP RH

341-26242-01-00

1
Out of stock

12

TUBE, THRTL GUIDE

256-26243-00-00

1
Out of stock

13

HOLDER

341-26393-00-00

1
Out of stock

14

CABLE, THROTTLE 1

341-26311-01-00

1
Out of stock

15

CABLE, THROTTLE 2

341-26312-01-00

1
Out of stock

16

CLIP, WIRE 2072639100

90468-15009-00

—
Out of stock

17

CABLE, CLUTCH

341-26335-04-00

1
Out of stock

18

BOLT

90123-08002-00

—

$8.93

In stock

19

NUT

90179-08030-00

—

$3.78

In stock

20

MIRROR ASSEMBLY LH

341-26290-10-00

1
Out of stock

21

BACK MIRROR RH (341-26290-01)

341-26290-01-00

1
Out of stock
