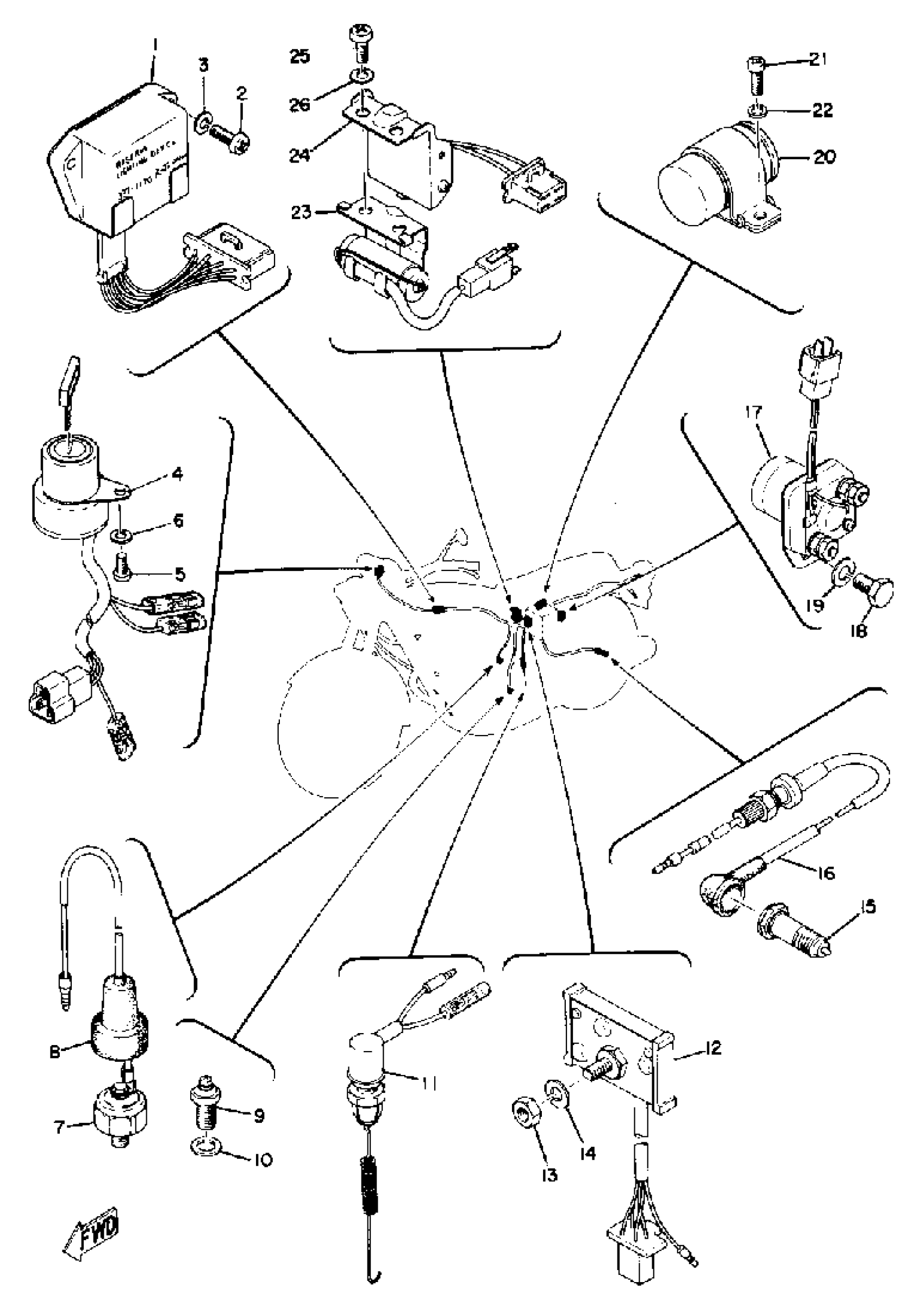

Find the part on the Electrical 2 diagram for your 1973 Yamaha TX750 (TX750), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX750 (TX750) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RSRV LTNG UNIT ASSEMBLY

(341-84308-65-00)

1
Out of stock

2

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

MAIN SWITCH ASSEMBLY

(341-82508-19-00)

1
Out of stock

5

UNAVAILABLE IN PRICE BOOK (92903-05100)

92901-05010-00

1
Out of stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

OIL PRESSURE SWITCH ASSEMBLY

341-82504-02-00

1
Out of stock

8

UNAVAILABLE IN PRICE BOOK

341-52507-00-00

1
Out of stock

9

NEUTRAL SWITCH ASSY

4GY-82540-10-00

1
Out of stock

10

GASKET

296-82543-00-00

—

$4.40

In stock

11

STOP SWITCH ASSEMBLY

341-82530-10-00

1
Out of stock

12

RECTIFIER ASSEMBLY

(341-81970-11-00)

1
Out of stock

13

NUT(6L2)

95333-08600-00

1

$3.20

In stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

15

SWITCH, ALARM

341-82503-01-00

1
Out of stock

16

WIRE, LEAD

(341-82531-01-00)

1
Out of stock

17

STARTER SWITCH ASSEMBLY

341-81940-12-00

1
Out of stock

18

BOLT, HEXAGON

97013-08016-00

—

$1.32

In stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

20

FLASHER RELAY ASSEMBLY

341-83350-71-00

1
Out of stock

21

SCREW, PAN

98507-06014-00

—

$6.18

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

CONDENSER 1

341-81625-10-00

1
Out of stock

24

RESISTOR

(341-81911-60-00)

1
Out of stock

25

SCREW, PAN

98507-06014-00

—

$6.18

In stock

26

SCREW, PAN

98507-06100-00

—

$6.80

In stock
