1973 Yamaha TX750 (TX750) Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 1973 Yamaha TX750 (TX750), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

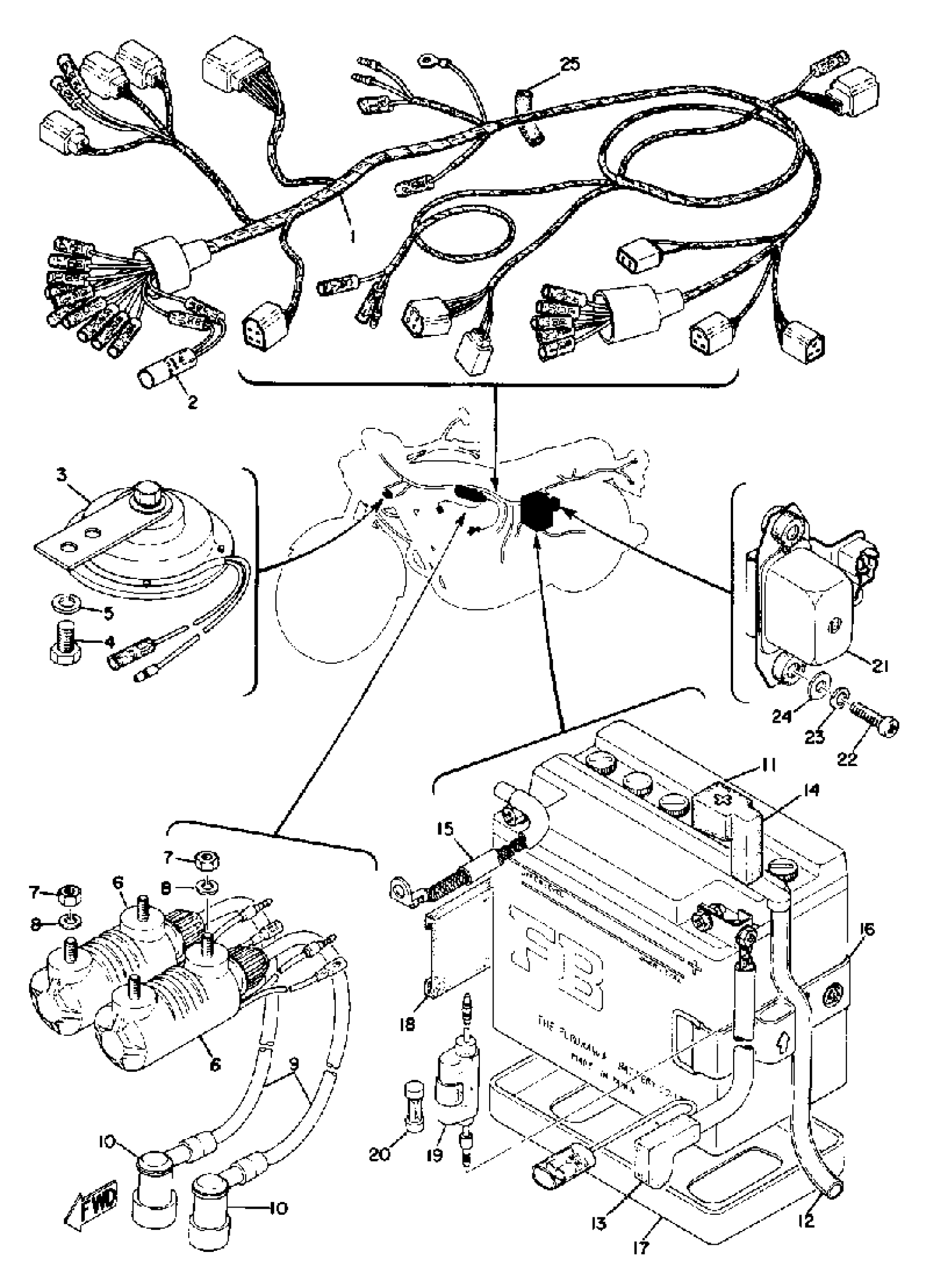

1973 Yamaha TX750 (TX750) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP, BATTERY

(104-82111-20-00)

1
Out of stock

1

WIRE HARNESS ASSEMBLY

(341-82590-34-00)

1
Out of stock

1

WIRE HARNESS ASSEMBLY

(341-82590-35-00)

1
Out of stock

2

DIODE (341-81980-01)

341-81980-30-00

1
Out of stock

3

HORN

47G-83371-30-00

1
Out of stock

4

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

IGNITION COIL ASSEMBLY

254-82310-60-00

1
Out of stock

7

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

CORD, HIGH TENSION 1

4X7-82341-00-00

1
Out of stock

10

PLUG CAP ASSY

56J-82370-00-00

1

$56.63

In stock

11

YB16LB YUASA BATTERY

YB1-6LB00-00-00

1
Out of stock

12

HOSE (L1500)

90445-084J0-00

1

$16.40

In stock

13

WIRE, PLUS LEAD

341-82115-03-00

1
Out of stock

14

COVER, LEAD WIRE

(341-82119-00-00)

1
Out of stock

15

WIRE, MINUS LEAD

(341-82116-01-00)

1
Out of stock

16

BAND, BATTERY

26H-82131-00-00

—

$20.89

In stock

17

SEAT, BATTERY

(341-82122-00-00)

1
Out of stock

18

PAD, BATTERY

(341-82121-00-00)

1
Out of stock

19

FUSE HOLDER ASSY

2UJ-82150-02-00

—
Out of stock

20

FUSE

1A0-82161-00-00

—
Out of stock

21

VOLTAGE REG ASSEMBLY

(341-81910-13-00)

1
Out of stock

22

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

WASHER, PLATE

90201-06M08-00

1
Out of stock

25

TUBE

(341-82139-00-00)

1
Out of stock
