1973 Yamaha TX750 (TX750) Speedometer - Tachometer Diagram

← All diagrams

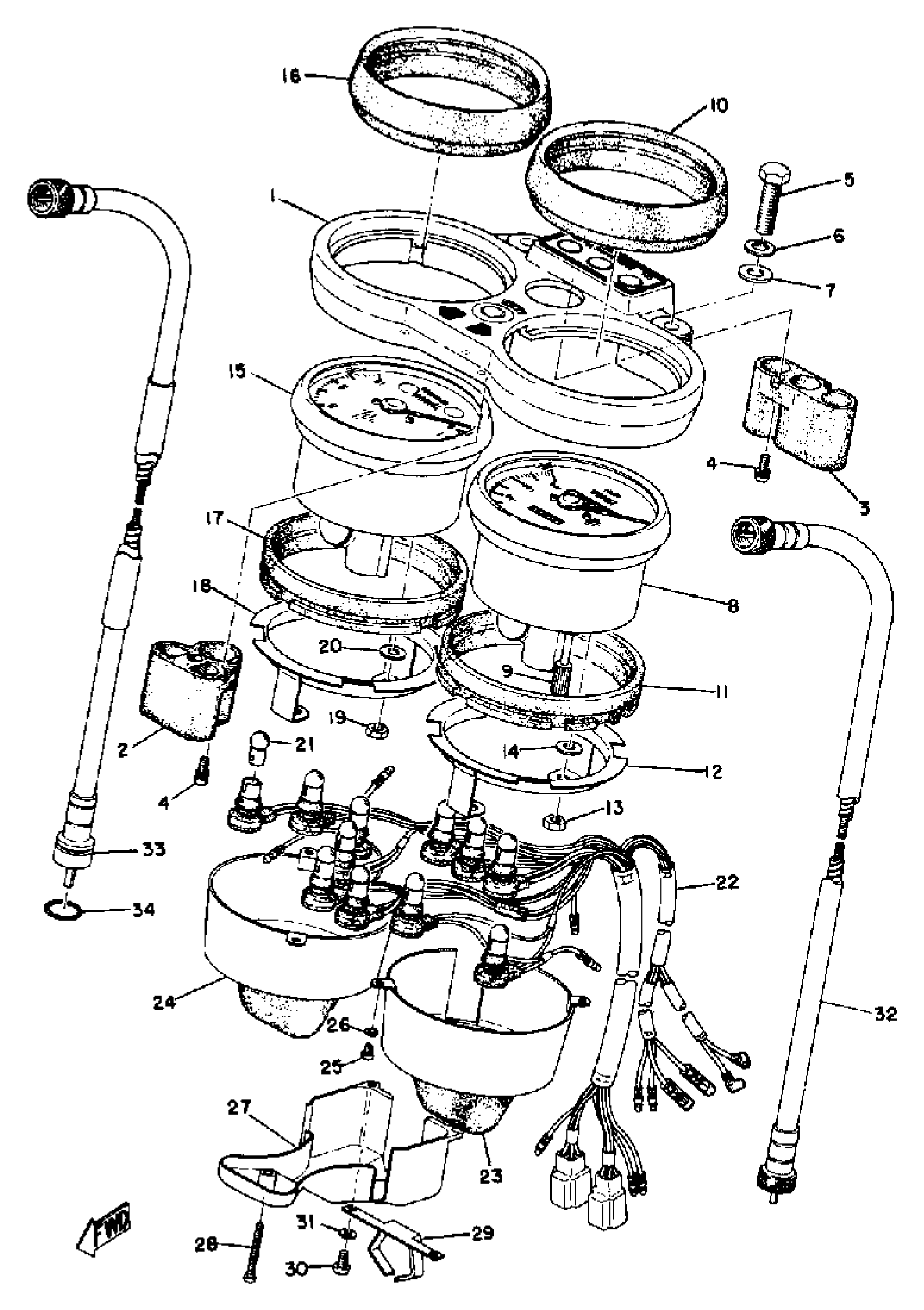

Find the part on the Speedometer - Tachometer diagram for your 1973 Yamaha TX750 (TX750), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX750 (TX750) Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, METER

341-83519-41-98

1
Out of stock

2

BRKT, INDCTR LT 1

(341-83574-00-00)

1
Out of stock

3

BRKT, INDCTR LT 2

(341-83575-00-00)

1
Out of stock

4

SCREW, WITH WASHER

(90159-03001-00)

1
Out of stock

5

BOLT, DOME HEAD

(90106-08009-00)

1
Out of stock

6

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

7

WASHER(6TC)

92907-08200-00

1
Out of stock

8

SPEEDOMETER ASSEMBLY

(341-83570-41-00)

1
Out of stock

8

SPEEDOMETER ASSEMBLY

(341-83570-42-00)

1
Out of stock

9

KNOB, TRIP METER

(341-83578-40-00)

1
Out of stock

10

DAMPER

(341-83513-40-00)

1
Out of stock

11

DAMPER

(341-83523-40-00)

1
Out of stock

12

PLATE, FITTING

(341-83514-40-00)

1
Out of stock

13

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

14

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

15

TACHOMETER ASSEMBLY

(341-83540-01-00)

1
Out of stock

15

TACHOMETER ASSEMBLY

(341-83540-02-00)

1
Out of stock

16

DAMPER

(341-83513-40-00)

1
Out of stock

17

DAMPER

(341-83523-40-00)

1
Out of stock

18

PLATE, FITTING

(341-83514-40-00)

1
Out of stock

19

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

20

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

21

BULB (12V-3.4W)

123-83516-21-00

—

$4.10

In stock

22

SOCKET CORD ASSEMBLY

(341-83509-02-00)

1
Out of stock

22

SOCKET CORD ASSEMBLY

(341-83509-03-00)

1
Out of stock

23

COVER, SPEEDOMETER

(341-83507-40-00)

1
Out of stock

24

COVER, TACHOMETER

(341-83508-40-00)

1
Out of stock

25

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

26

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

27

COVER, SOCKET

(341-83547-40-00)

1
Out of stock

28

SCREW, WITH WASHER

(90159-04004-00)

1
Out of stock

29

SOCKET CORD ASSEMBLY 3

(341-83573-00-00)

1
Out of stock

30

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

31

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

32

SPEEDOMETER CABLE ASSY

16M-83550-01-00

—
Out of stock

33

TACHOMETER CABLE (341-83560-00)

341-83560-01-00

1
Out of stock

34

O-RING (26H)

93210-14579-00

—

$5.69

In stock
