1973 Yamaha TX750 (TX750) Steering Diagram

← All diagrams

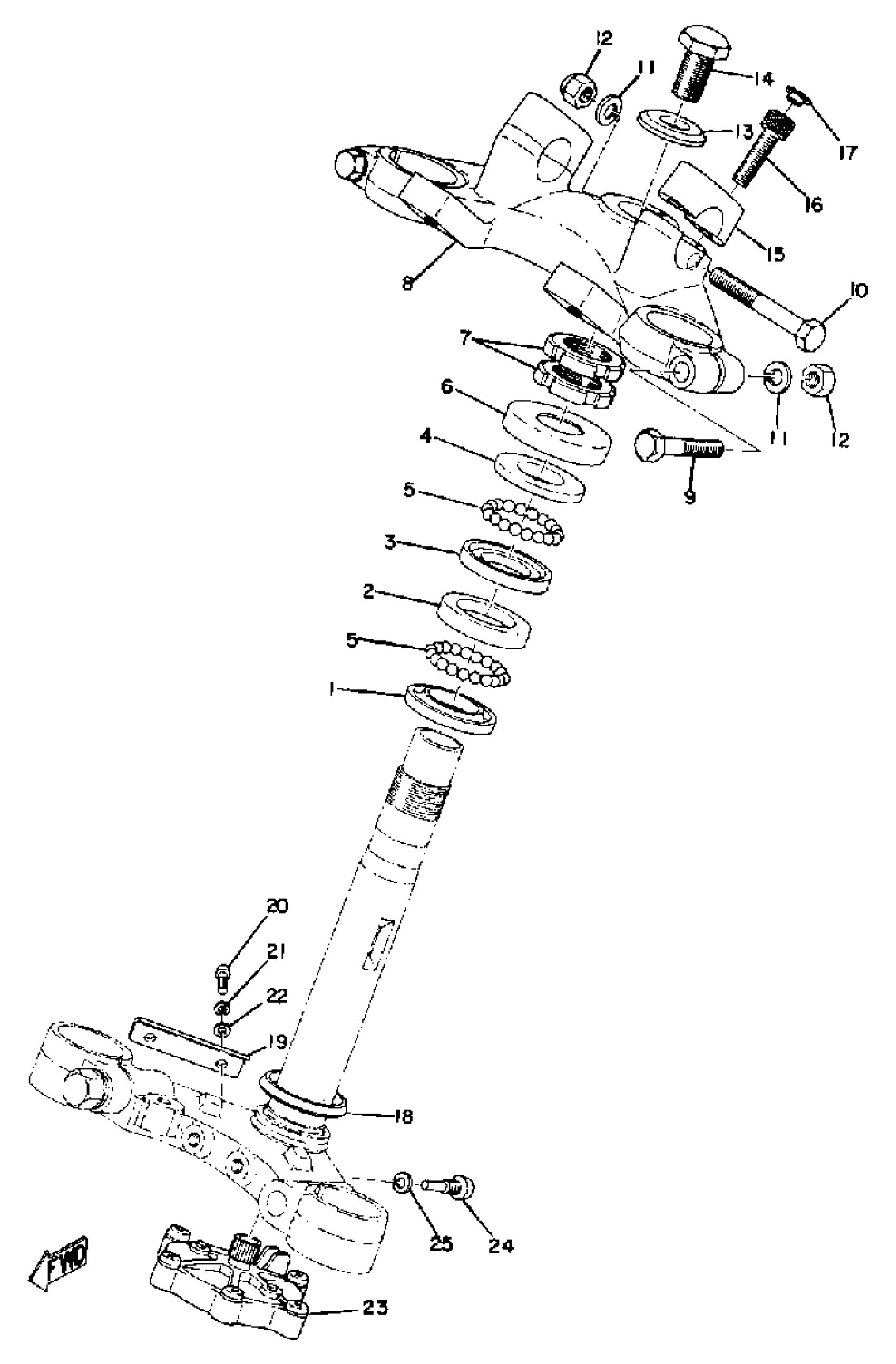

Find the part on the Steering diagram for your 1973 Yamaha TX750 (TX750), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha TX750 (TX750) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

256-23411-00-00

1
Out of stock

2

RACE, BALL2

256-23412-00-00

—

$35.19

In stock

3

RACE, BALL3

256-23413-00-00

—

$35.19

In stock

4

RACE, BALL4

256-23414-00-00

—

$51.94

In stock

5

BALL

93501-04011-00

1
Out of stock

6

COVER, BALL RACE

136-23415-00-00

1

$7.71

In stock

7

NUT

90179-25004-00

1

$20.78

In stock

8

CROWN, HANDLE

(341-23435-00-00)

1
Out of stock

9

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

10

BOLT

97021-08065-00

1
Out of stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

NUT, CROWN

95303-08800-00

1

$7.52

In stock

13

WASHER, SPEC''L SHAP (341-23443-00)

90209-14023-00

1
Out of stock

14

BOLT (2A2)

90105-14102-00

1

$5.14

In stock

15

HOLDER, HANDLE UP

99999-01112-00

1
Out of stock

16

BOLT, HEX SKT HEAD

(90110-08001-00)

1
Out of stock

17

CAP, BOLT (371,447)

341-23469-00-00

—

$8.55

In stock

18

SEAL, DUST

164-23462-00-00

—

$6.42

In stock

19

PROTECTOR

(341-23472-00-00)

1
Out of stock

20

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

21

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

22

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

23

HDLBR SMY DMPR ASSEMBLY

5G2-23490-00-00

1
Out of stock

24

BOLT

(214-23492-00-00)

1
Out of stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
