2020 Kawasaki Teryx KRX® 1000 Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 2020 Kawasaki Teryx KRX® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

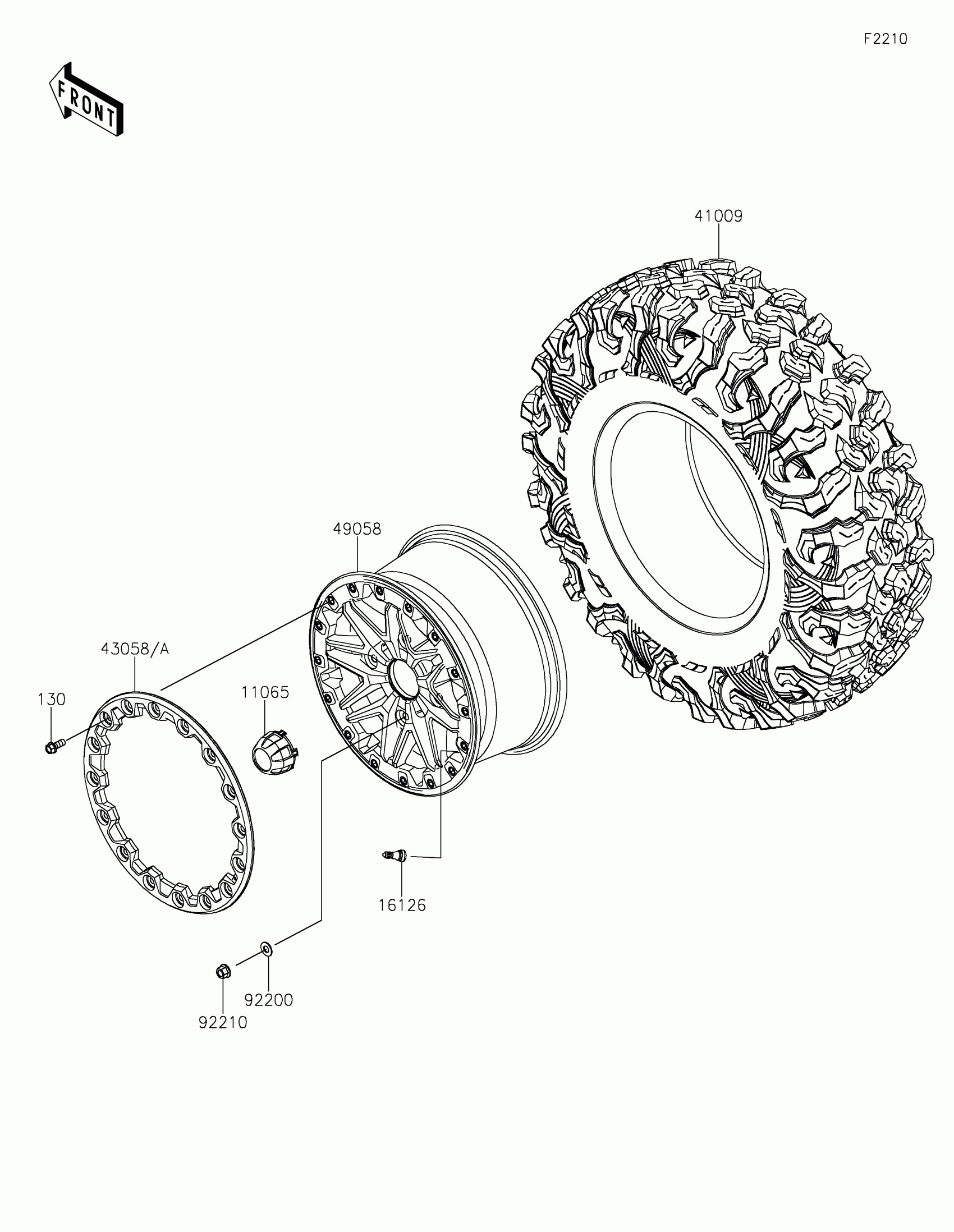

2020 Kawasaki Teryx KRX® 1000 Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,WHEEL

11065-1341

1

$26.35

In stock

16126

VALVE

16126-4001

1

$9.60

In stock

41009

1

$359.57

In stock

43058

RING,BEADLOCK,L.GREEN

43058-0706-66J

1

$115.91

In stock

43058A

RING,BEADLOCK,M.SILVER

43058-0706-66K

1

$115.91

In stock

49058

WHEEL,F.S.BLACK

49058-0706-397

1

$418.21

In stock

92200

WASHER,12.1X25X1.6

92200-0455

1
Out of stock

92210

NUT,12MM

92210-0603

1
Out of stock

130

BOLT-FLANGED

130CA1025

1

$1.56

In stock
