2020 Kawasaki Teryx KRX® 1000 Shock Absorber Diagram

← All diagrams

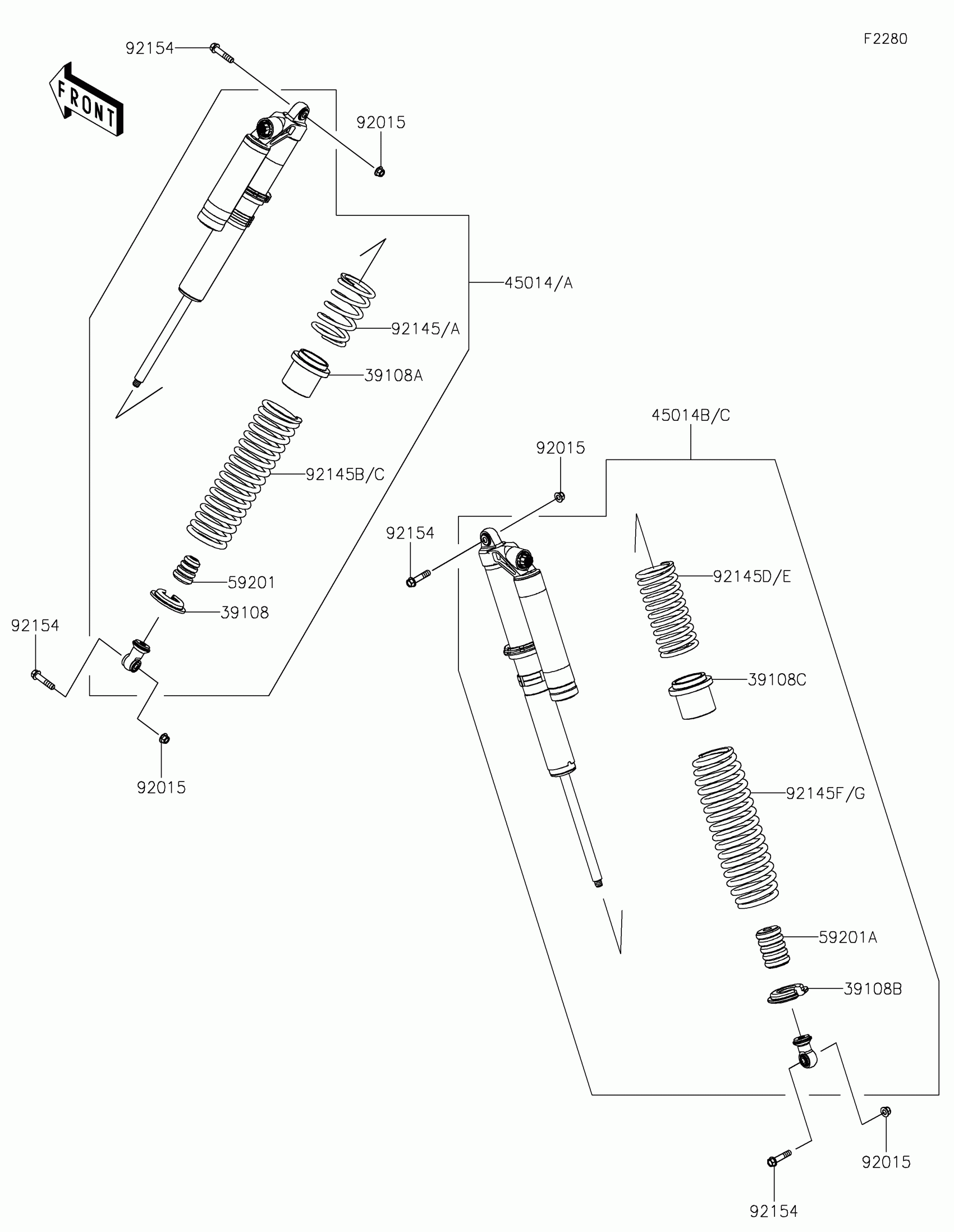

Find the part on the Shock Absorber diagram for your 2020 Kawasaki Teryx KRX® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Teryx KRX® 1000 Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39108

RETAINER-SPRING

39108-0015

1
Out of stock

39108A

RETAINER-SPRING

39108-0016

1
Out of stock

39108B

RETAINER-SPRING

39108-0017

1
Out of stock

39108C

RETAINER-SPRING

39108-0018

1
Out of stock

45014

SHOCKABSORBER,FR,L.GREEN

45014-0627-66G

1
Out of stock

45014A

SHOCKABSORBER,FR,RED

45014-0627-66H

1
Out of stock

45014B

SHOCKABSORBER,RR,L.GREEN

45014-0628-66G

1
Out of stock

45014C

SHOCKABSORBER,RR,RED

45014-0628-66H

1
Out of stock

59201

BUMPER

59201-0004

1
Out of stock

59201A

BUMPER

59201-0005

1
Out of stock

92015

NUT,LOCK,FLANGED,12MM

92015-1433

1
Out of stock

92145

SPRING,TENDER,L.GREEN

92145-1952-66G

1
Out of stock

92145A

SPRING,TENDER,RED

92145-1952-66H

1
Out of stock

92145B

SPRING,MAIN,L.GREEN

92145-1953-66G

1
Out of stock

92145C

SPRING,MAIN,RED

92145-1953-66H

1
Out of stock

92145D

SPRING,TENDER,L.GREEN

92145-1954-66G

1
Out of stock

92145E

SPRING,TENDER,RED

92145-1954-66H

1
Out of stock

92145F

SPRING,MAIN,L.GREEN

92145-1955-66G

1
Out of stock

92145G

SPRING,MAIN,RED

92145-1955-66H

1
Out of stock

92154

BOLT,FLANGED,12X55

92154-0289

1
Out of stock
