2020 Kawasaki Teryx KRX® 1000 Front Suspension Diagram

← All diagrams

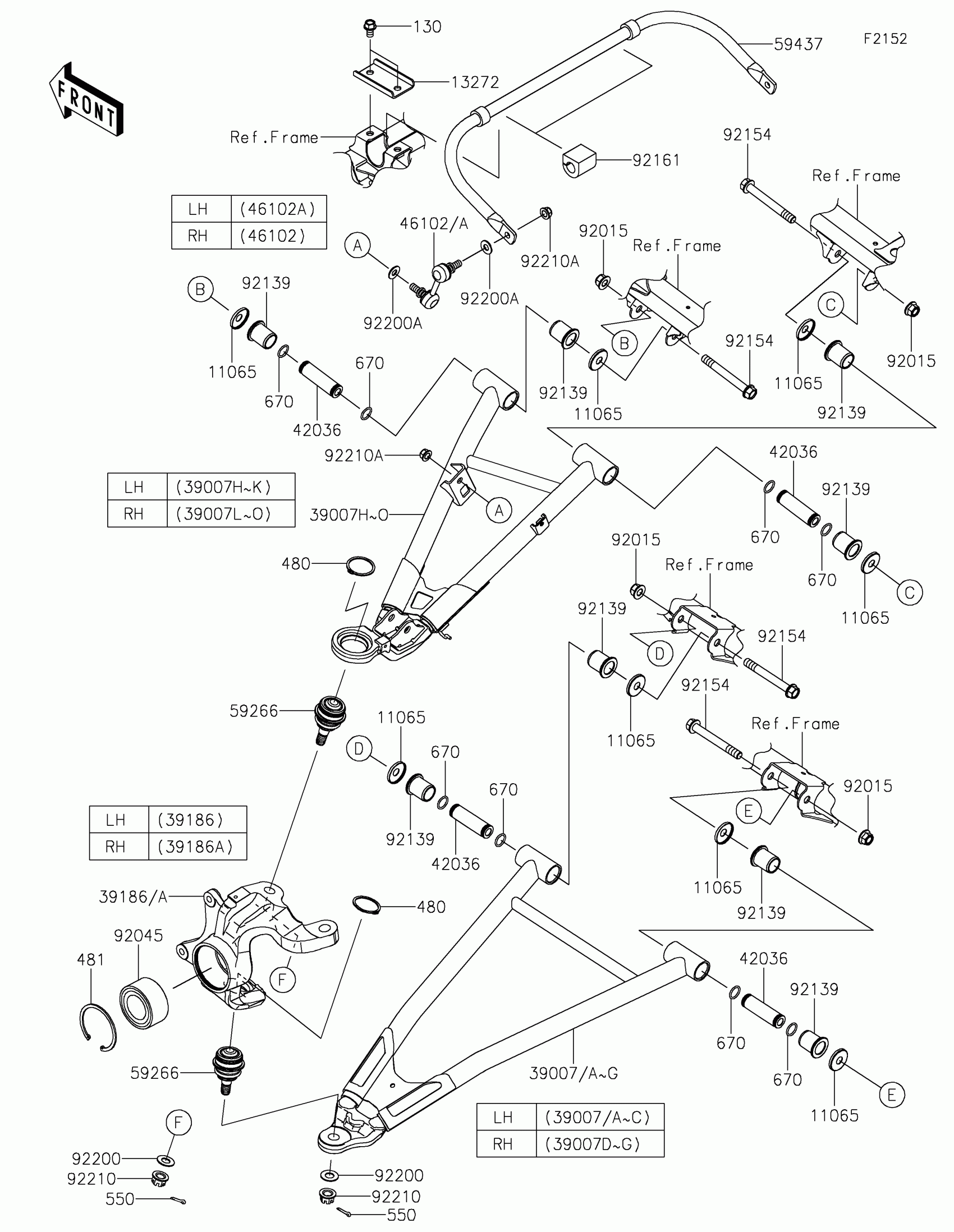

Find the part on the Front Suspension diagram for your 2020 Kawasaki Teryx KRX® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Teryx KRX® 1000 Front Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0253

1
Out of stock

13272

PLATE

13272-2677

1
Out of stock

39007

ARM-SUSP,FR,UPP,LH,P.L.GREEN

39007-0424-66C

1
Out of stock

39007A

ARM-SUSP,FR,UPP,LH,P.M.M.WHITE

39007-0424-66D

1
Out of stock

39007B

ARM-SUSP,FR,UPP,RH,P.L.GREEN

39007-0425-66C

1
Out of stock

39007C

ARM-SUSP,FR,UPP,RH,P.M.M.WHITE

39007-0425-66D

1
Out of stock

39007D

ARM-SUSP,FR,LWR,LH,P.L.GREEN

39007-0426-66C

1
Out of stock

39007E

ARM-SUSP,FR,LWR,LH,P.M.M.WHITE

39007-0426-66D

1
Out of stock

39007F

ARM-SUSP,FR,LWR,RH,P.L.GREEN

39007-0427-66C

1
Out of stock

39007G

ARM-SUSP,FR,LWR,RH,P.M.M.WHITE

39007-0427-66D

1
Out of stock

39007H

ARM-SUSP,FR,LWR,LH,P.L.GREEN

39007-0463-66C

1
Out of stock

39007I

ARM-SUSP,FR,LWR,LH,P.M.M.WHITE

39007-0463-66D

1
Out of stock

39007J

ARM-SUSP,FR,LWR,RH,P.L.GREEN

39007-0464-66C

1
Out of stock

39007K

ARM-SUSP,FR,LWR,RH,P.M.M.WHITE

39007-0464-66D

1
Out of stock

39186

KNUCKLE,FR,LH

39186-0323

1
Out of stock

39186A

KNUCKLE,FR,RH

39186-0324

1
Out of stock

39186B

KNUCKLE,FR,LH

39186-0333

1
Out of stock

39186C

KNUCKLE,FR,RH

39186-0334

1
Out of stock

42036

SLEEVE,12.1X22X76

42036-0836

1
Out of stock

46102

ROD,STABILIZER,LH

46102-0100

1
Out of stock

46102A

ROD,STABILIZER,RH

46102-0101

1
Out of stock

59266

JOINT-BALL

59266-0738

1
Out of stock

59437

STABILIZER,FR

59437-0025

1
Out of stock

92015

NUT,LOCK,FLANGED,12MM

92015-1433

1
Out of stock

92045

BEARING-BALL,40X74X36

92045-0919

1
Out of stock

92139

BUSHING

92139-0937

1
Out of stock

92154

BOLT,FLANGED,12X100

92154-1318

1
Out of stock

92161

DAMPER

92161-2188

1
Out of stock

92200

WASHER,14.2X28X1.5

92200-0217

1
Out of stock

92200A

WASHER,10.3X23X1.6

92200-0724

1
Out of stock

92210

NUT,CASTLE,14MM

92210-0104

1
Out of stock

92210A

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock

130

BOLT-FLANGED,10X16

130CA1016

1

$2.68

In stock

480

CIRCLIP-TYPE-C,42MM

480J4200

1
Out of stock

481

CIRCLIP-TYPE-C

481J7500

1
Out of stock

550

PIN-COTTER,3.0X25

550AA3025

1
Out of stock

670

O RING,18MM

670B2018

1
Out of stock
