2020 Kawasaki Teryx KRX® 1000 Battery Diagram

← All diagrams

Find the part on the Battery diagram for your 2020 Kawasaki Teryx KRX® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

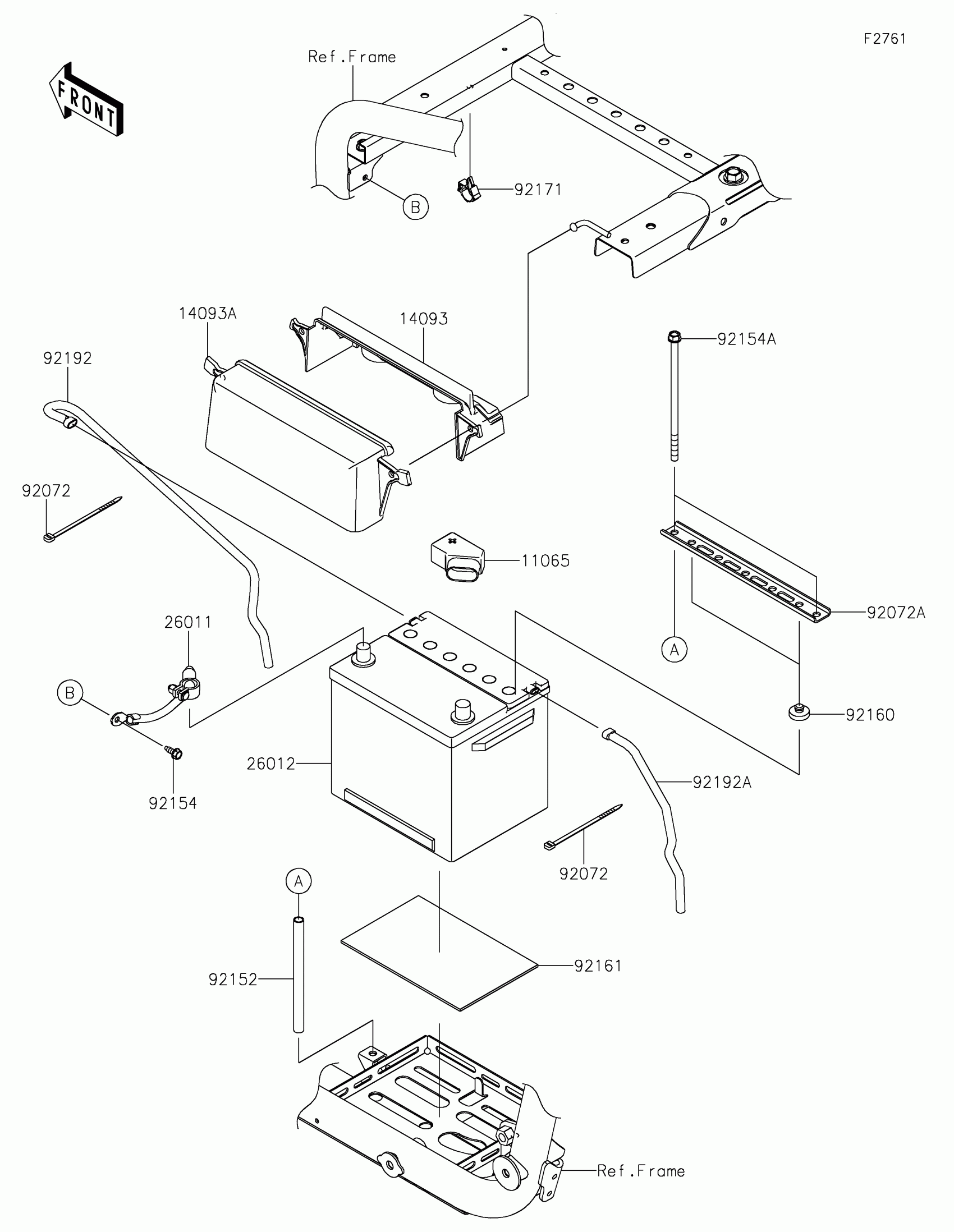

2020 Kawasaki Teryx KRX® 1000 Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

1

$8.39

In stock

14093A

1

$9.90

In stock

26011

1

$15.14

In stock

26012

BATTERY,WET,(26R)

26012-7501

1

$130.95

In stock

92072

BAND,92X2.4

92072-0791

1

$0.47

In stock

92072A

BAND,BATTERY

92072-0844

1

$6.58

In stock

92152

COLLAR,9.4X12.7X160

92152-2584

1

$12.10

In stock

92154

BOLT,FLANGED,6X16

92154-0551

1

$1.44

In stock

92154A

BOLT,FLANGED,8X175

92154-3973

1

$8.97

In stock

92160

DAMPER

92160-1396

1

$4.85

In stock

92161

DAMPER

92161-0578

1

$3.80

In stock

92171

CLAMP,BRAKE HOSE

92171-0316

1

$3.08

In stock

92173

CLAMP,CABLE,28MM

92173-1062

1

$3.27

In stock

92192

1

$1.95

In stock

92192A

1

$1.27

In stock
