2020 Kawasaki Teryx KRX® 1000 Steering Wheel Diagram

← All diagrams

Find the part on the Steering Wheel diagram for your 2020 Kawasaki Teryx KRX® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

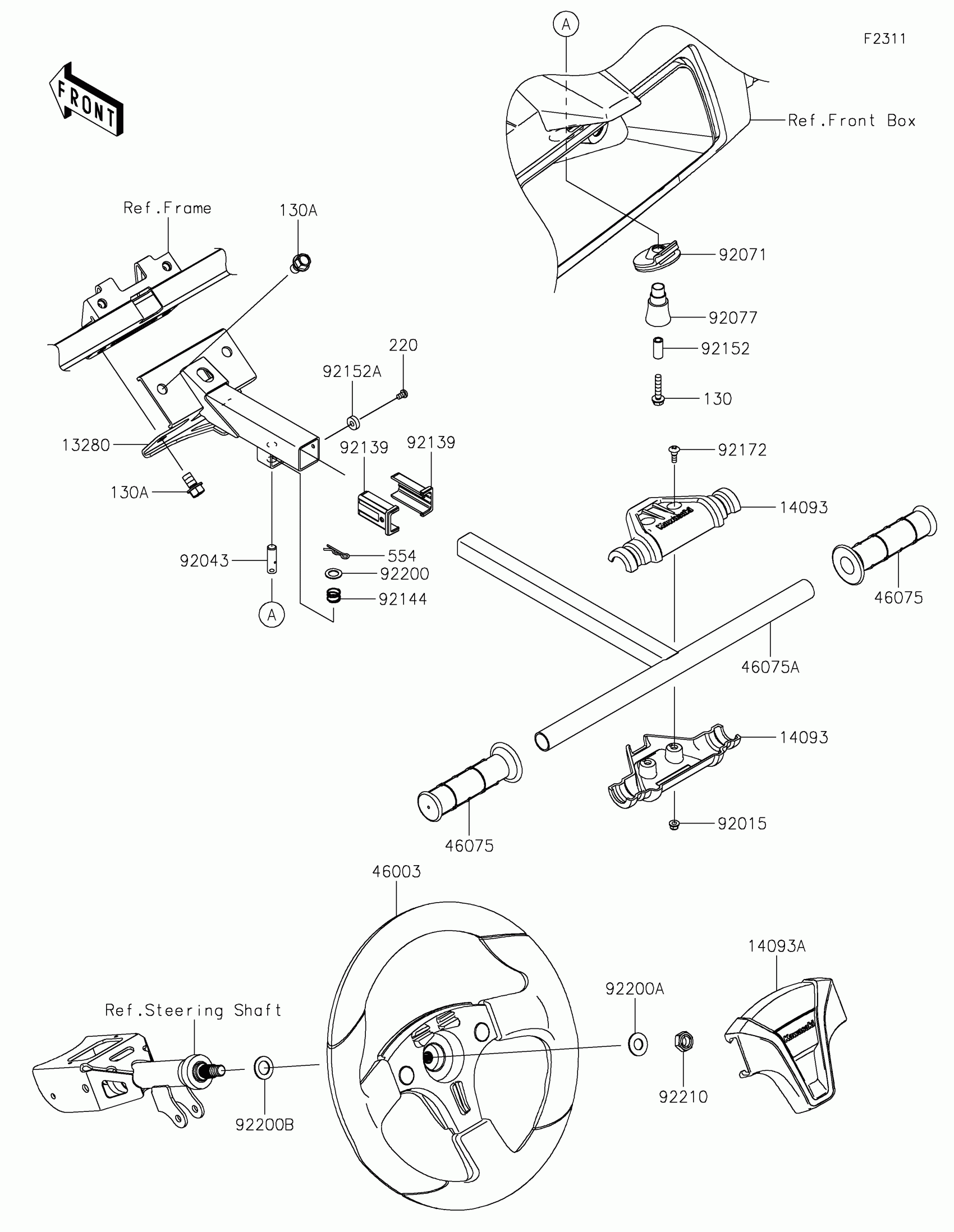

2020 Kawasaki Teryx KRX® 1000 Steering Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13280

HOLDER,PASSENGER GRIP

13280-0940

1
Out of stock

14093

COVER,PASSENGER GRIP

14093-0802

1
Out of stock

14093A

COVER,HANDLE

14093-0803

1
Out of stock

46003

HANDLE

46003-0769

1
Out of stock

46075

GRIP

46075-0065

1

$27.63

In stock

46075A

GRIP,PIPE

46075-0637

1
Out of stock

92015

NUT,LOCK,FLANGED,5MM

92015-1752

1
Out of stock

92043

PIN

92043-0970

1
Out of stock

92071

GROMMET

92071-0796

1
Out of stock

92077

KNOB

92077-0039

1
Out of stock

92139

BUSHING

92139-0971

1
Out of stock

92144

SPRING,ROCKER ARM,SHORT

92144-1255

1
Out of stock

92152

COLLAR,6.2X10X22.2

92152-2552

1
Out of stock

92152A

COLLAR,5.7X14.5X4.55

92152-2608

1
Out of stock

92172

SCREW,5MM

92172-0261

1
Out of stock

92200

WASHER,11X18X1

92200-0324

1
Out of stock

92200A

WASHER,12.1X25X1.6

92200-0455

1
Out of stock

92200B

WASHER,15X25X1.6

92200-0460

1
Out of stock

92210

NUT,LOCK,12MM

92210-1249

1
Out of stock

130

BOLT-FLANGED,6X30

130CA0630

1

$2.05

In stock

130A

BOLT-FLANGED,10X16

130CA1016

1

$2.68

In stock

220

SCREW-PAN-CROS,5X8

220AA0508

1
Out of stock

554

PIN-SNAP,10MM

554DA1000

1
Out of stock
