2020 Kawasaki Teryx KRX® 1000 Water Pipe Diagram

← All diagrams

Find the part on the Water Pipe diagram for your 2020 Kawasaki Teryx KRX® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

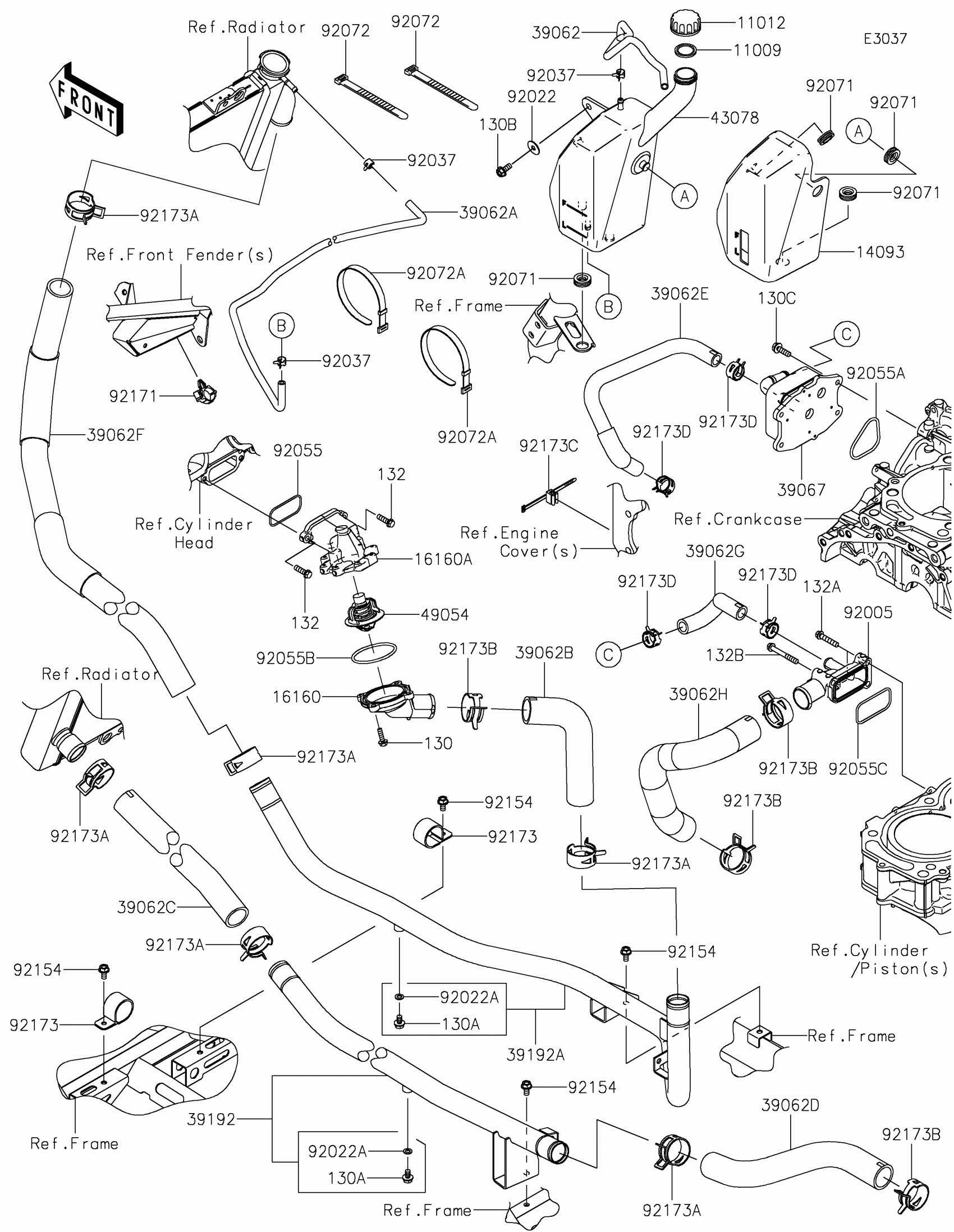

2020 Kawasaki Teryx KRX® 1000 Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11012

CAP

11012-1084

1
Out of stock

14093

COVER,RESERVOIR

14093-0847

1
Out of stock

16160

BODY

16160-0805

1
Out of stock

16160A

BODY

16160-0806

1
Out of stock

39062

HOSE-COOLING,OVERFLOW

39062-0830

1
Out of stock

39062A

HOSE-COOLING,RAD-RESERVOIR

39062-0831

1
Out of stock

39062B

HOSE-COOLING,ENGINE-PIPE(RH)

39062-0833

1
Out of stock

39062C

HOSE-COOLING,RADIATOR-PIPE(LH)

39062-0835

1
Out of stock

39062D

HOSE-COOLING,PIPE(LH)-W/PUMP

39062-0836

1
Out of stock

39062E

HOSE-COOLING,OIL COOLER-W/PUMP

39062-0838

1
Out of stock

39062F

HOSE-COOLING,RADIATOR-PIPE(RH)

39062-0870

1
Out of stock

39062G

HOSE-COOLING,ENGINE-OIL COOLER

39062-0872

1
Out of stock

39062H

HOSE-COOLING,W/PUMP-ENGINE

39062-0874

1
Out of stock

39067

COOLER-OIL

39067-0023

1
Out of stock

39192

PIPE-WATER,LH

39192-0669

1
Out of stock

39192A

PIPE-WATER,RH

39192-0670

1
Out of stock

43078

RESERVOIR

43078-0602

1
Out of stock

49054

THERMOSTAT

49054-0004

1
Out of stock

92005

FITTING,CYLINDER

92005-0899

1
Out of stock

92022

WASHER,PLAIN,6.5X20X1

92022-165

1
Out of stock

92022A

WASHER,6.2X11X1

92022-304

1
Out of stock

92037

CLAMP,TUBE

92037-1461

1
Out of stock

92055

RING-O,YP 27.6 57.6 1.9

92055-0021

1
Out of stock

92055A

RING-O,46.4X3.1

92055-0752

1
Out of stock

92055B

RING-O,53.5X2.6

92055-0831

1
Out of stock

92055C

RING-O,FITTING

92055-0923

1
Out of stock

92071

GROMMET

92071-1115

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92072A

BAND,L=186

92072-056

1
Out of stock

92154

BOLT,FLANGED,6X12

92154-1195

1
Out of stock

92173

CLAMP

92173-1204

1
Out of stock

92173A

CLAMP,28.6MM

92173-1205

1
Out of stock

92173B

CLAMP,33.4MM

92173-1981

1
Out of stock

92173C

CLAMP

92173-2089

1
Out of stock

92173D

CLAMP

92173-2285

1
Out of stock

130

BOLT-FLANGED,5X18

130BA0518

1
Out of stock

130A

BOLT-FLANGED,6X10

130BA0610

1
Out of stock

130B

BOLT-FLANGED,6X14

130BA0614

1
Out of stock

130C

BOLT-FLANGED,6X20

130CA0620

1
Out of stock

132

BOLT-FLANGED-SMALL,6X20

132BA0620

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X30

132BA0630

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X45

132BA0645

1
Out of stock
