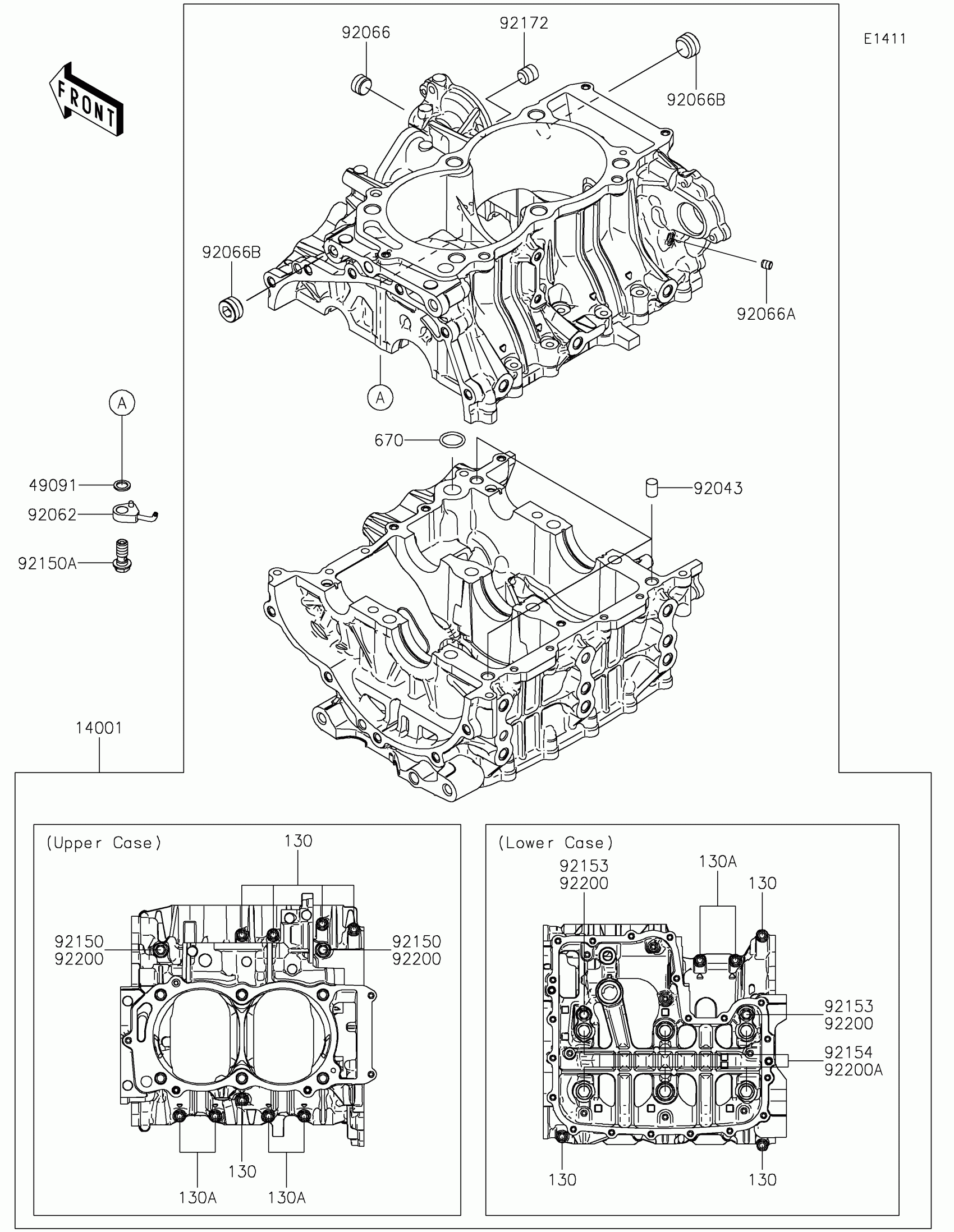

Kawasaki TERYX KRX® 1000 Crankcase Diagram

Description

Price

14001

SET-CRANKCASE

14001-0693

$1,616.89

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92043

PIN,10X14

92043-1506

$2.30

92062

NOZZLE,OIL JET

92062-0566

$52.36

92066

PLUG

92066-0836

$4.32

92066A

PLUG,OIL LINE,7.2X8

92066-1012

$4.65

92066B

PLUG

92066-3779

$5.07

92150

BOLT,8X70

92150-1483

$7.36

92150A

BOLT,BANJO,10X23

92150-1641

$10.80

92153

BOLT,FLANGED,8X90

92153-1632

$6.15

92154

BOLT

92154-3912

$13.83

92172

SCREW

92172-1266

$8.76

92200

WASHER,8.2X16X1.6

92200-0047

$2.03

92200A

WASHER,11.5X20.5X3.2

92200-0727

$8.07

130

BOLT-FLANGED,6X55

130CA0655

Unavailable

130A

BOLT-FLANGED,6X45

130CB0645

$1.43

670

O RING,18MM

670D2018

$1.39
