Description

Price

11061

GASKET,GENERATOR COVER

11061-1304

$20.86

11061A

GASKET,CLUTCH COVER

11061-1305

$20.86

13272

PLATE,CLUTCH COVER,BACK

13272-2799

$524.64

14014

PLATE-POSITION

14014-0556

$3.93

14031

COVER-GENERATOR

14031-0639

$200.61

14032

COVER-CLUTCH

14032-0646

$170.64

14093

COVER,GENERATOR,OUTER

14093-0794

$5.81

16115

CAP-OIL FILLER

16115-1064

$5.93

52005

GAUGE,OIL

52005-0766

$21.59

92004

STUD,8X30

92004-0790

$2.44

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92043A

PIN,6.2X8X14

92043-1263

$0.46

92045

BEARING-BALL,16014CS45

92045-0709

$76.67

92049

SEAL-OIL,HTC 59X77X9

92049-0820

$30.56

92055

RING-O,37.2X1.9

92055-0959

$7.47

92055A

RING-O,20X2

92055-1146

$6.55

92055B

RING-O,35.8MM

92055-1281

$5.61

92066

PLUG,COVER

92066-0011

$12.09

92066A

PLUG,36X7.5

92066-0744

$6.28

92151

BOLT,8X40

92151-1621

$2.19

92154

BOLT,FLAT,8X13.6

92154-0978

$3.36

92200

WASHER,8.5X18X2.3

92200-1213

$1.85

130

BOLT-FLANGED,10X30

130BA1030

$3.99

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.16

132A

BOLT-FLANGED-SMALL,6X30

132BA0630

$1.87

481

CIRCLIP

481J3400

$1.03

551

PIN-DOWEL,4X16

551A0416

$0.75

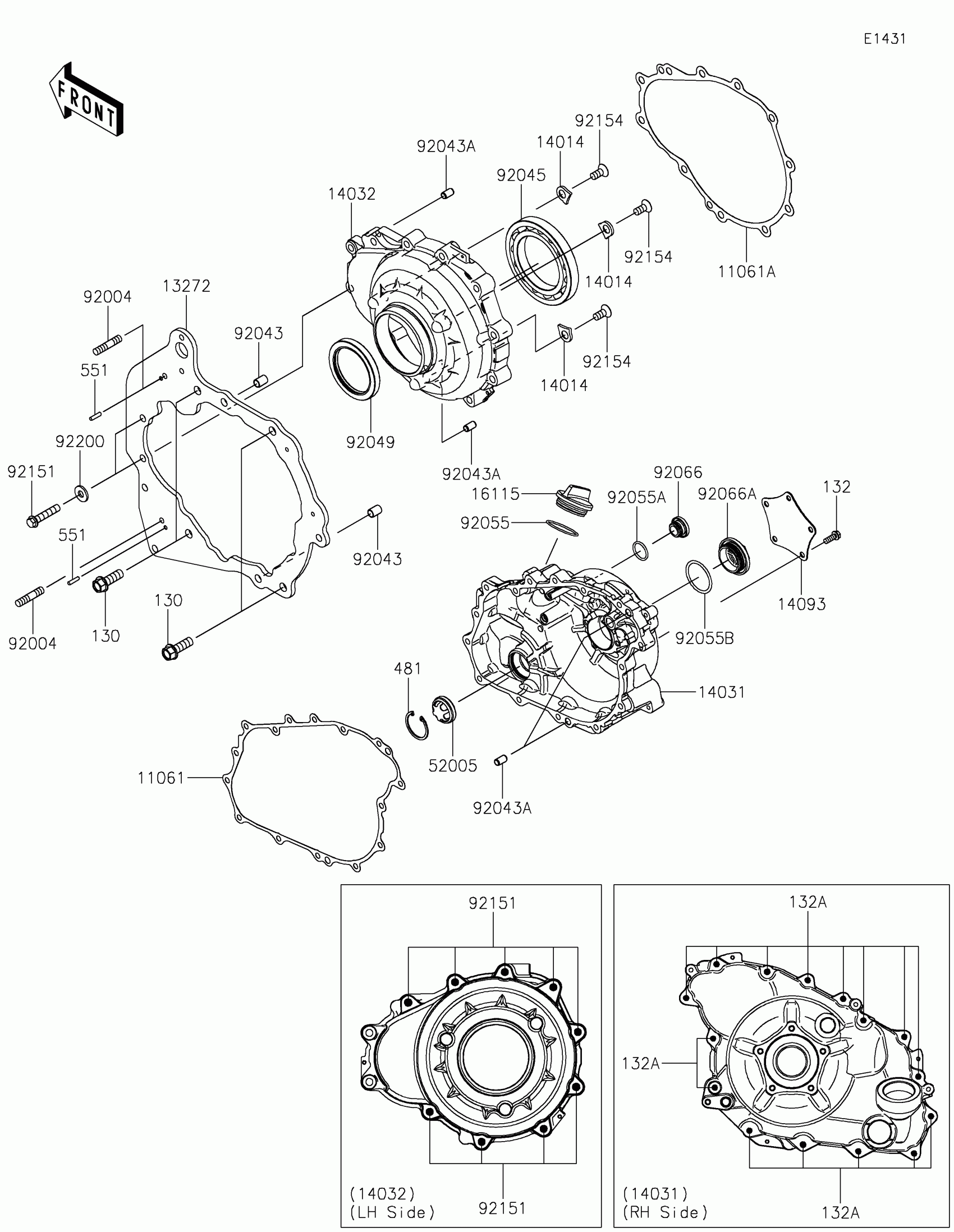

Kawasaki TERYX KRX® 1000 Engine Cover(s) Diagram
