2020 Kawasaki Teryx KRX® 1000 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2020 Kawasaki Teryx KRX® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

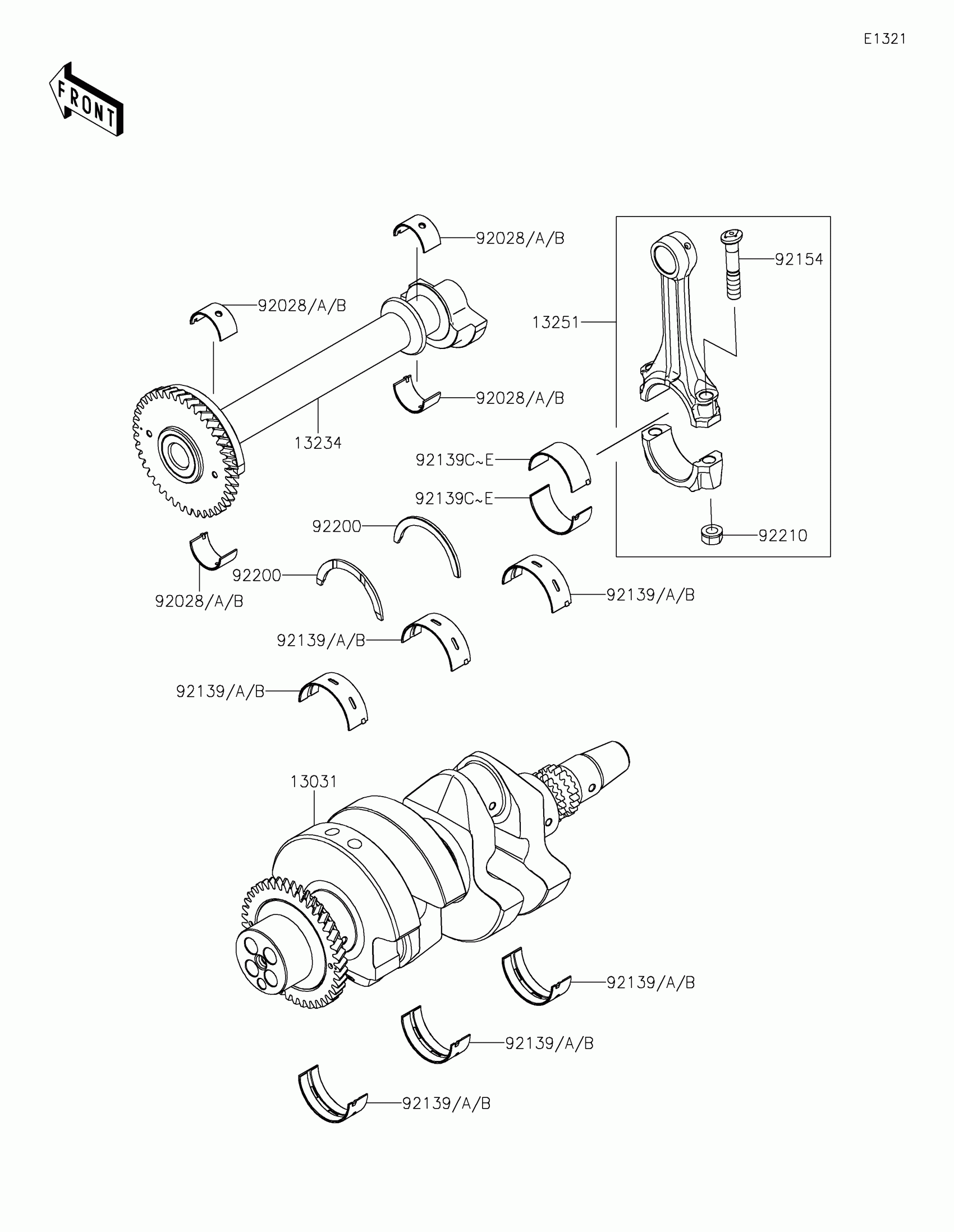

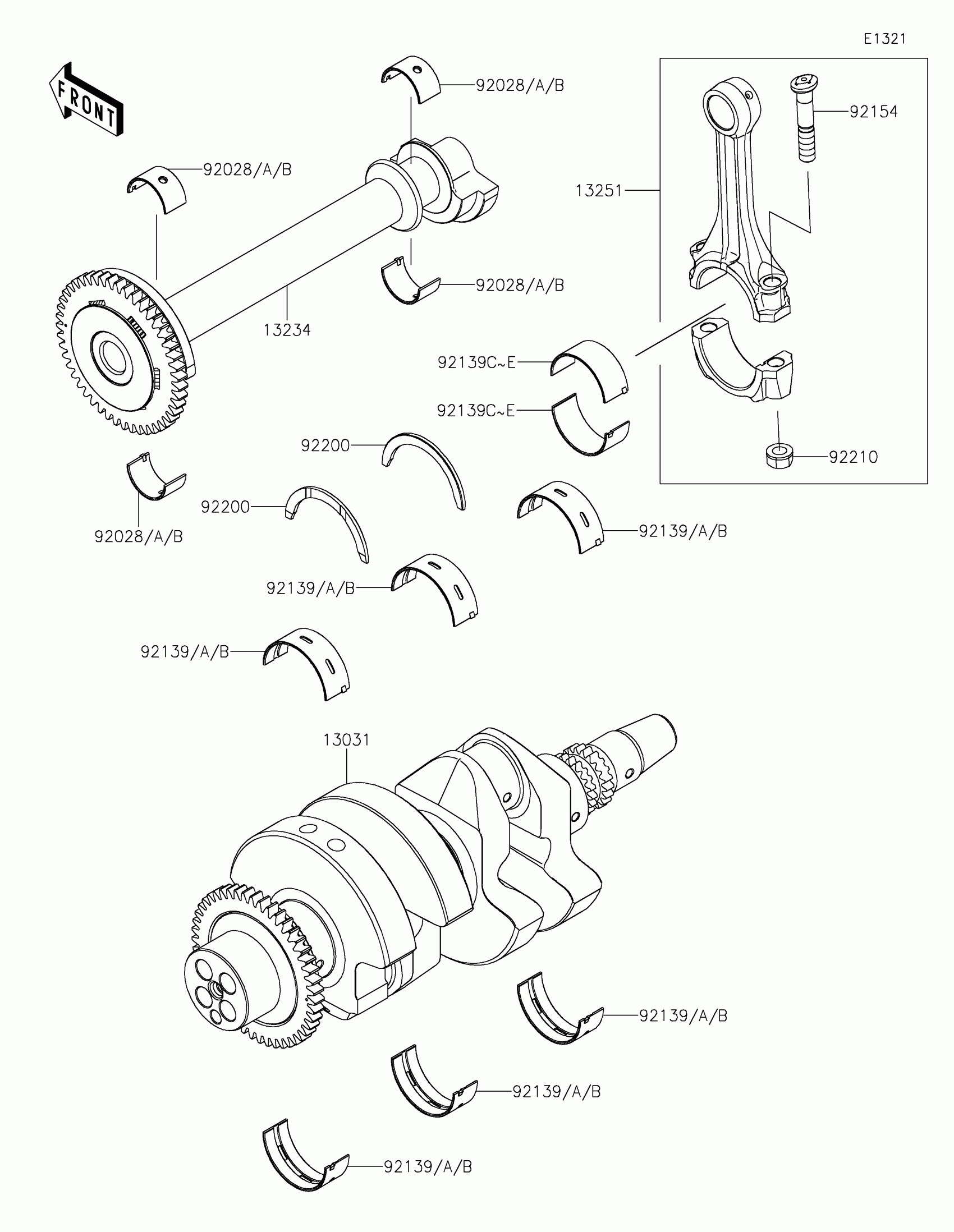

2020 Kawasaki Teryx KRX® 1000 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-0910

1

$1,443.96

In stock

13234

SHAFT-COMP,BALANCER

13234-0606

1

$419.84

In stock

13251

ROD-ASSY-CONNECTING,J

13251-0733-JJ

1

$255.83

In stock

92028

1

$14.36

In stock

92028A

—

$17.10

In stock

92028B

—

$17.10

In stock

92139

1

$19.61

In stock

92139A

—

$19.61

In stock

92139B

—

$19.61

In stock

92139C

1

$22.81

In stock

92139D

—

$22.81

In stock

92139E

—

$22.81

In stock

92154

BOLT,CONNECTING ROD

92154-3911

1

$8.10

In stock

92200

WASHER,THRUST,T=2.5

92200-2242

1

$8.28

In stock

92210

NUT,FLANGED,9MM

92210-1673

1

$1.93

In stock
