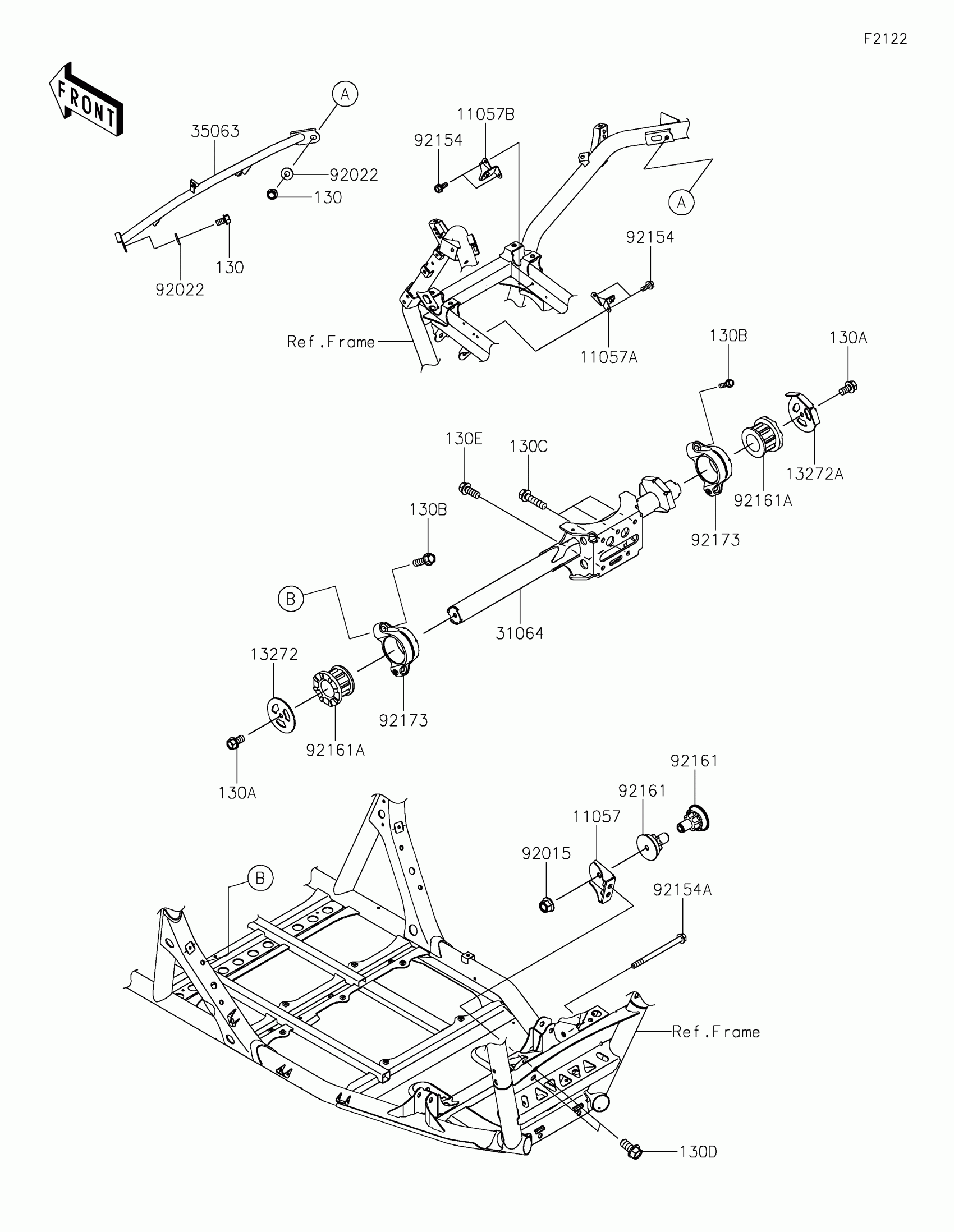

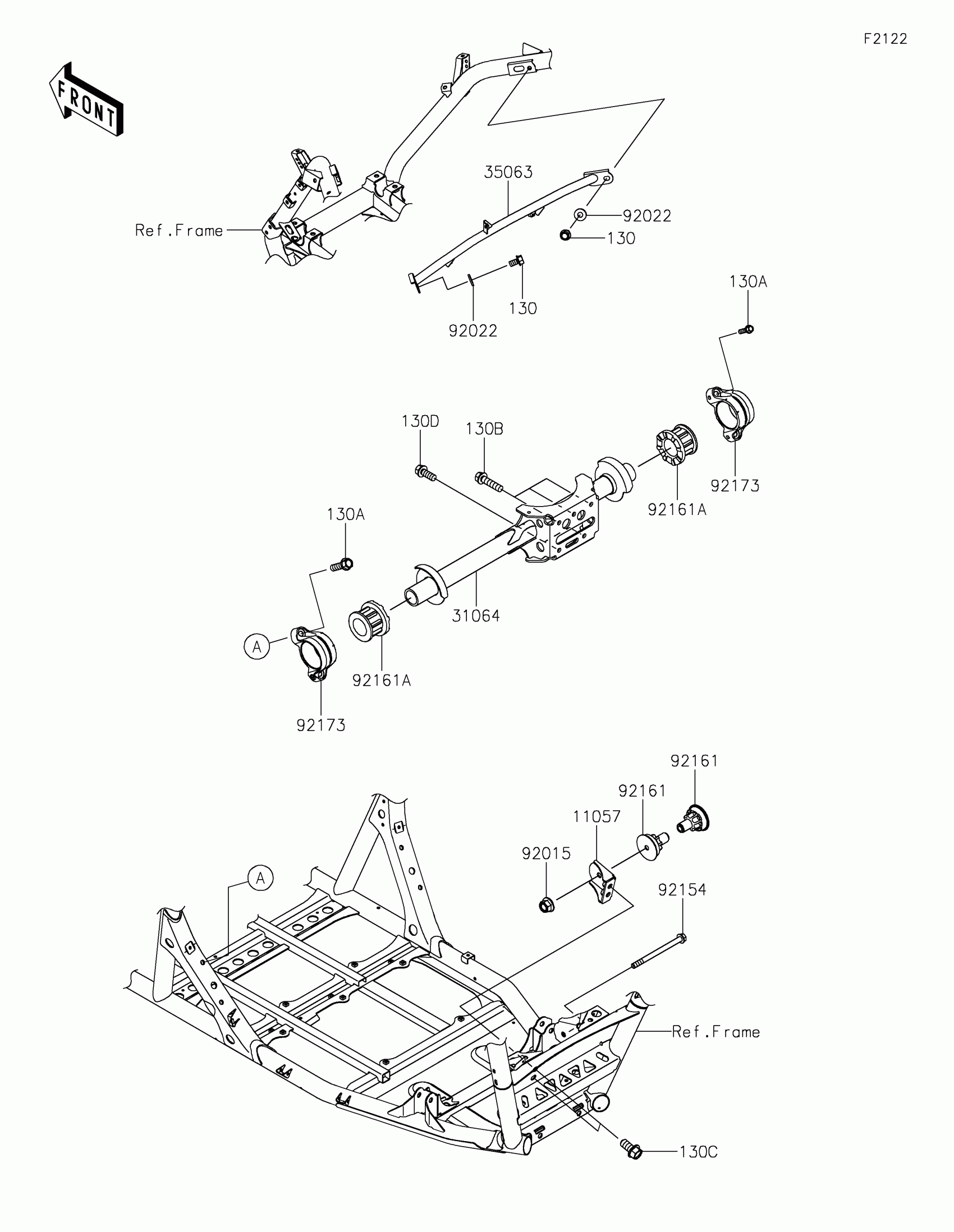

Kawasaki TERYX KRX® 1000 Engine Mount Diagram

Description

Price

11057

BRACKET,RR

11057-2103

$10.12

11057A

BRACKET

11057-2598

$5.05

11057B

BRACKET

11057-2599

$5.75

13272

PLATE,LH

13272-2707

$9.05

13272A

PLATE,RH

13272-2861

$15.36

31064

PIPE-COMP,FR

31064-0715

$271.46

35063

STAY,UPP

35063-1466

$23.81

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92022

WASHER,8.2X19X2

92022-1533

$4.85

92154

BOLT,6X15.6

92154-1250

$0.83

92154A

BOLT,FLANGED,12X160

92154-3916

$18.22

92161

DAMPER

92161-2171

$34.72

92161A

DAMPER

92161-2205

$20.43

92173

CLAMP

92173-1982

$59.10

130

BOLT-FLANGED,8X14

130BA0814

$1.54

130A

BOLT-FLANGED,10X18

130CA1018

$2.05

130B

BOLT-FLANGED,10X35

130CA1035

$5.05

130C

BOLT-FLANGED,10X40

130CA1040

$2.29

130D

BOLT-FLANGED,12X25

130CA1225

$5.91

130E

BOLT-FLANGED,10X25

130CB1025

$2.29
