2020 Kawasaki Teryx KRX® 1000 Starter Motor Diagram

← All diagrams

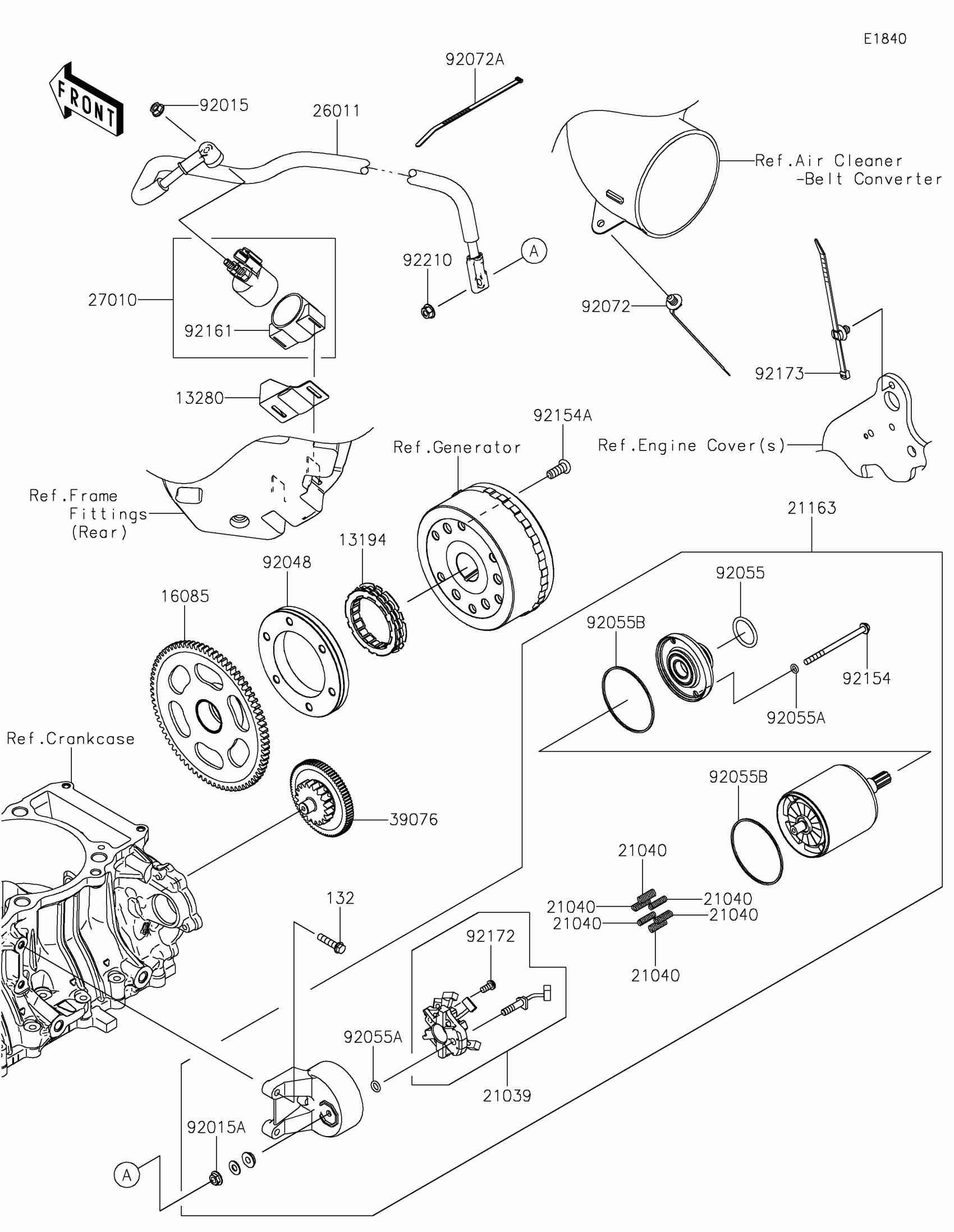

Find the part on the Starter Motor diagram for your 2020 Kawasaki Teryx KRX® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Teryx KRX® 1000 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13194

CLUTCH-ONEWAY

13194-0021

1

$128.76

In stock

13280

1

$2.19

In stock

16085

GEAR,76T

16085-0691

1

$211.48

In stock

21039

BRUSH

21039-0009

1

$43.42

In stock

21040

SPRING-BRUSH

21040-0003

1

$9.47

In stock

21163

STARTER-ELECTRIC

21163-0786

1

$982.99

In stock

26011

WIRE-LEAD

26011-1914

1

$73.96

In stock

27010

SWITCH,MAGNETIC

27010-0766

1

$125.50

In stock

39076

LIMITER

39076-0039

1

$246.88

In stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92015A

NUT,STARTER MOTOR

92015-1476

1

$3.85

In stock

92048

RACE

92048-0041

1

$52.05

In stock

92055

RING-O

92055-1276

1

$7.86

In stock

92055A

RING-O,4.5X2.0

92055-1370

1

$4.17

In stock

92055B

1

$9.58

In stock

92072

1

$2.97

In stock

92072A

BAND,L=292.1

92072-3509

1
Out of stock

92154

BOLT

92154-0265

1

$7.15

In stock

92154A

BOLT,TORX,8X20

92154-0421

1

$4.19

In stock

92161

1

$18.34

In stock

92172

SCREW

92172-0334

1

$4.14

In stock

92173

CLAMP

92173-2188

1

$0.83

In stock

92210

NUT,6MM

92210-0188

1
Out of stock

132

1

$2.29

In stock
