2020 Kawasaki Teryx KRX® 1000 Ignition Switch Diagram

← All diagrams

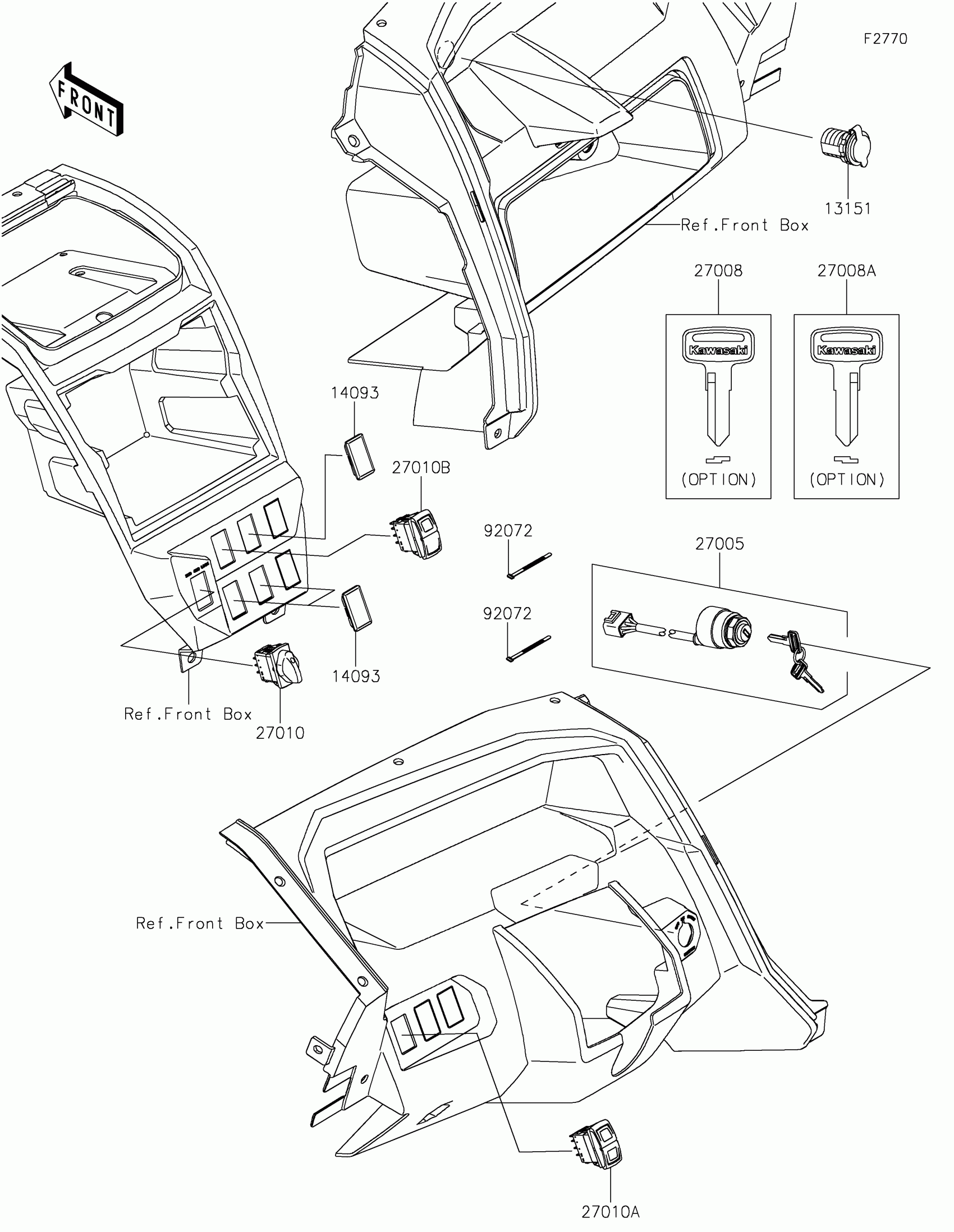

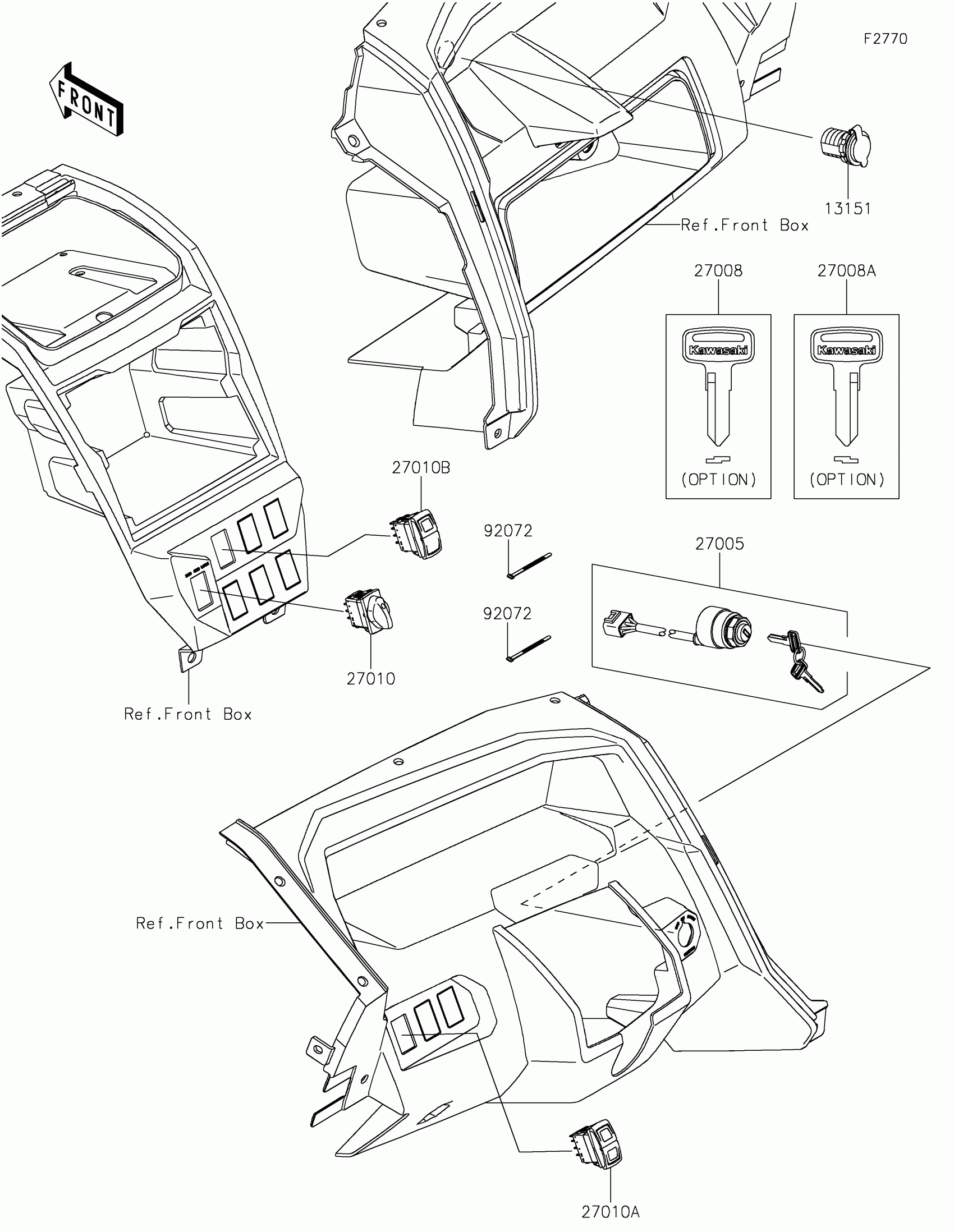

Find the part on the Ignition Switch diagram for your 2020 Kawasaki Teryx KRX® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Teryx KRX® 1000 Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13151

1

$11.56

In stock

27005

1

$79.99

In stock

27008

KEY-LOCK,BLANK

27008-1153

1

$14.13

In stock

27008A

KEY-LOCK,BLANK

27008-1157

1

$14.13

In stock

27010

SWITCH,2WD/4WD

27010-0902

1

$25.92

In stock

27010A

SWITCH,HEAD LIGHT

27010-0903

1

$71.61

In stock

27010B

SWITCH,POWER MODE

27010-0904

1

$86.09

In stock

92072

BAND,L=123

92072-030

1

$3.97

In stock
